Carbon Steel Square Weld Nut Welded Square Nut (Type A)

Material: ML08AL

Standard: GB /T 13680, Q 371, Q 371B, DIN 928

Inquire Now Next Product Download

Product Specification

Product name: GB13680/Q371 welded square nut（Type A )

Specifications: M5 M6 M8 M10 M12 M14 M16 7/16 fine tooth standard thread in stock

Surface: natural color anti-rust

Material: ML08AL

Levels: 6, 8, 10 class

Square weld nuts have more weld points than hex weld nuts for a stronger hold. Weld them on flat uncoated steel surfaces. All have a collar pilot that assists alignment and prevents welding spatter from getting into threads. Nuts that meet ASME B1.1 comply with specifications for dimensional standards.

Size Can also be According to the Customer's requirement please check the detailed specification sheet details PDF, CAD, 153-154 Page See more product details.

Product Packaging

Packing: Inner is Poly foam, out is carton. Then pallet. Carton size: 29*19*19.5CM and 23.5*17.5*8 , CM and pallet size is: 215*100*90CM, or as your requirement.

Product Pictures

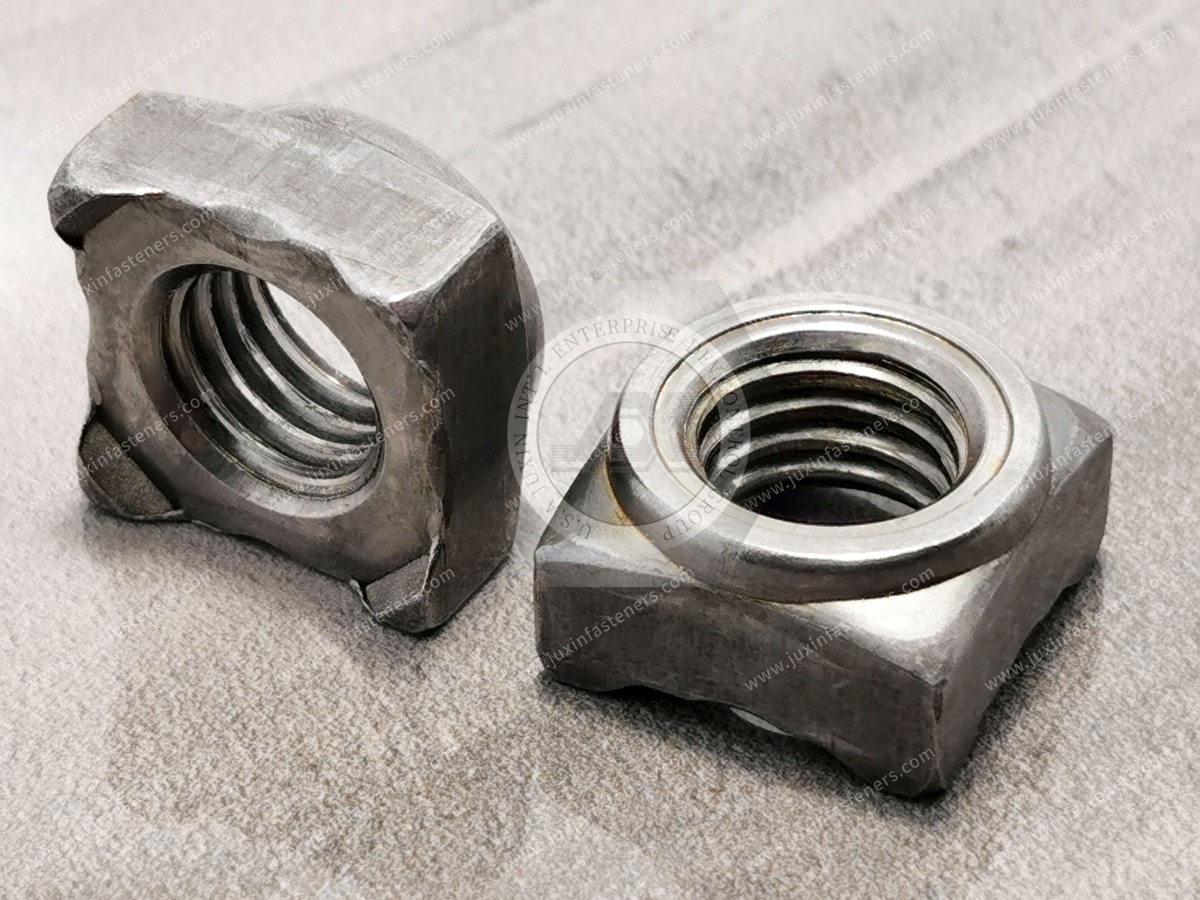

Carbon Steel Square Weld Nut Welded Square Nut (Type A)
