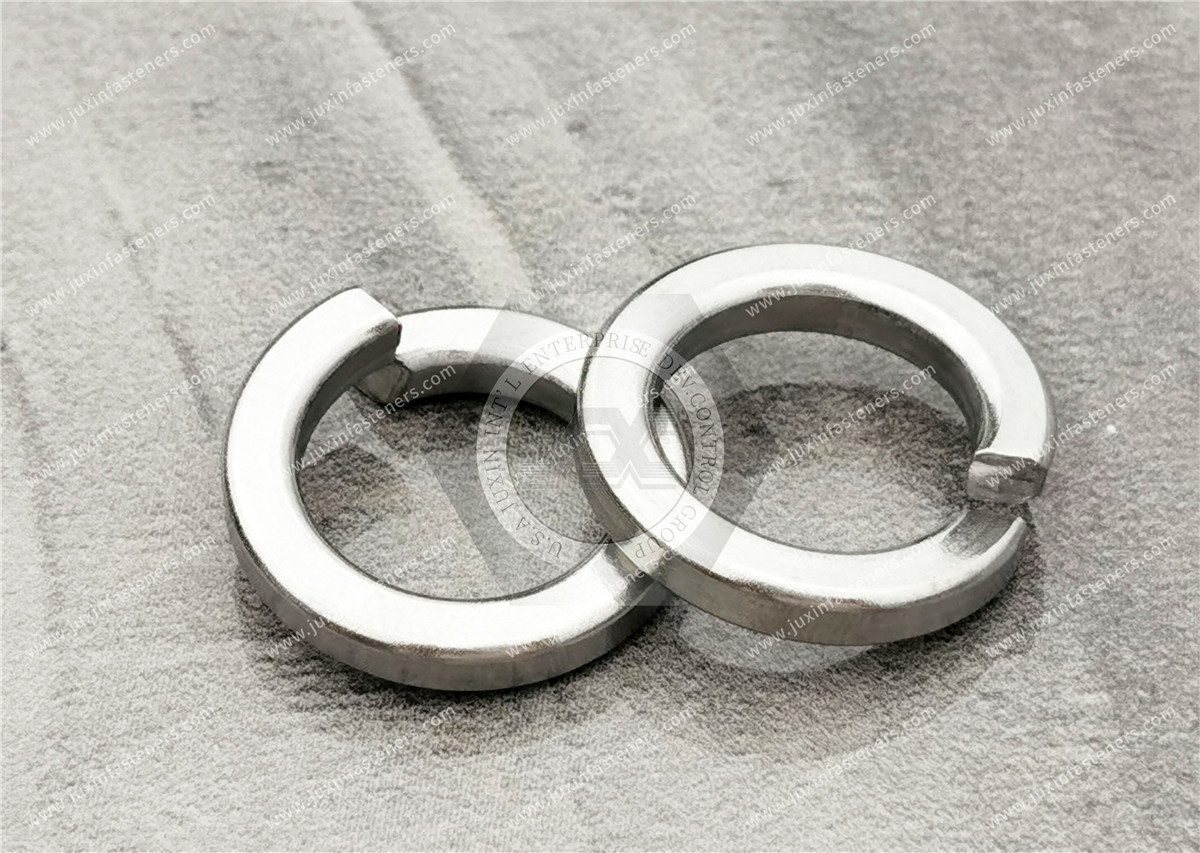

Spring Washer

Name: Single coil spring lock washers, Normal type
(i) The test values for the spring force test described in DIN 267-26 have not been specified for this nominal size.
(ii) The test values for the permanent deformation test described in DIN 267-26 have not been specified for this nominal size.
(iii) Technical requirements
DIN 267-26 applies to technical requirements for spring lock washers made of spring steel. The agreement specifies the technical specifications for spring-loaded lock washers made of copper-zinc alloys.
Material:
FSt = spring steel as specified in DIN 267-26 or CuSn 8 standard DIN 17662 (only for nominal sizes 22 and smaller).
Safety ring: St = steel.
CuZn = copper-zinc alloy.
④, Explanatory note

By maintaining a sufficiently high preload in the bolt/nut assembly, the spring washers are designed to prevent the assembly from loosening. This may, e.g., be caused by the effect of setting in the assembly. Specifying the residual spring force in DIN 267-26 makes it possible to evaluate the performance of spring washers for the first time. As the spring force can be realized using spring locking washers as described in this standard (see DIN 267-26), such washers are only suitable for bolt/nut assemblies for performance class 5.8 or more minor bolts. When spring lock washers with safety rings were developed, the heat treatment methods did not ensure the washers would not break during use. The purpose of the safety ring was to retain pieces of the washer in the event of rupture, thereby preventing further damage from occurring, particularly in the case of electrical installations. This issue has now been resolved, and it is intended to withdraw the standard after a five-year transition period. It is recommended that the spring locking washers specified in DIN 128 be used instead of the spring locking washers specified in this standard.

There are two main materials for spring washers: iron and stainless steel. We usually use 65 kinds of iron MN spring steel or 70# carbon steel, 3Cr13, also called 65 fierce. This iron material is better. Stainless steel is usually 201, 304, or 316. Iron spring washers need plating, while stainless steel does not.

Spring Lock Washers according to Kit(1000 Pack), M2 M2.5 M3 M. Please M8 M10 M12 Metric Split Lock Washer Set,304 Stain inless Steand el Lock. Washers for Screws Bolts

Material Stainless Steel

Outside Diameter 3.44 4.19 4.85 6.55 7.88 9.42 12.69 15.76 18.56 Millimeters

Washer Type Split Lock

Exterior Finish: Stainless Steel

Fastener Size:M2 M2.5 M3 M4 M5 M6 M8 M10 M12

About this item

Spring Lock Washers: The metric spring lock washers assortment kit

304 Stainless Steel: 304 Stainless steel split lock washers are made of high-strength materials with good corrosion resistance and long service life. Compared to galvanized materials, the oxidation resistance, corrosion resistance, and rust resistance are more robust, thus increasing the service life of the product

Split Lock Washer Function: Split washers are mainly used for nuts, bolts, and screws from rotating and loosening due to vibration and friction, and play a role in preventing loosening and fixing objects to ensure the stability of machines

Convenient Storage: Each of the nine different sizes of spring lock washers is individually stowed by type in an easy-to-carry clear case.Easy to store and use, so that the rivnut will not be lost or mixed up during use

Wide Application: Spring washers are highly compatible with screws, nuts, and bolts of the same size and can be used to connect moving parts or to prevent loose connections, such as in furniture repair, outdoor construction, and electrical maintenance

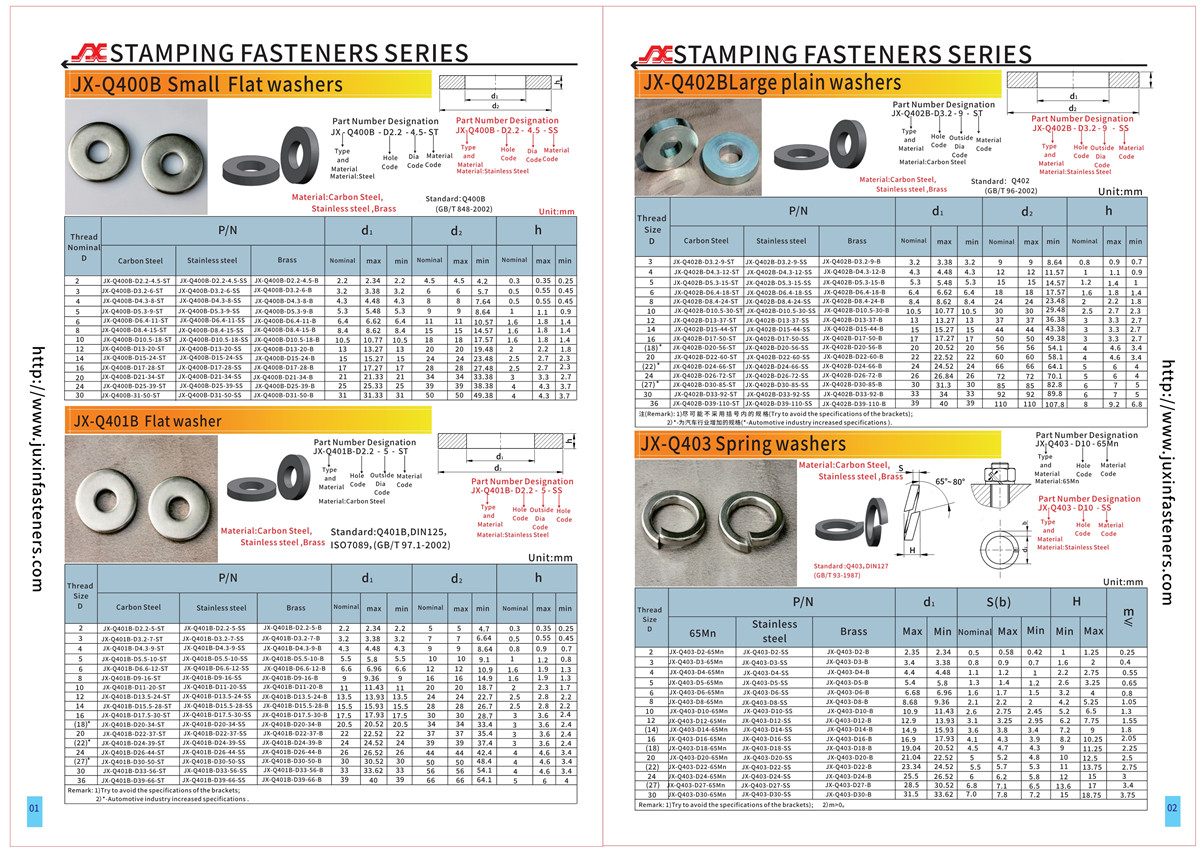

Size Can also be According to the Customer's requirement please check the detailed specification sheet details PDF， CAD, 1-2Page See more product details.

Packing: The inner packaging comprises polyfoam, while the outer layer is a carton. The carton sizes are 29*19*19.5 cm and 23.5*17.5*8 cm, respectively. The pallet dimensions are 215*100*90 cm or can be customized according to your requirements.
