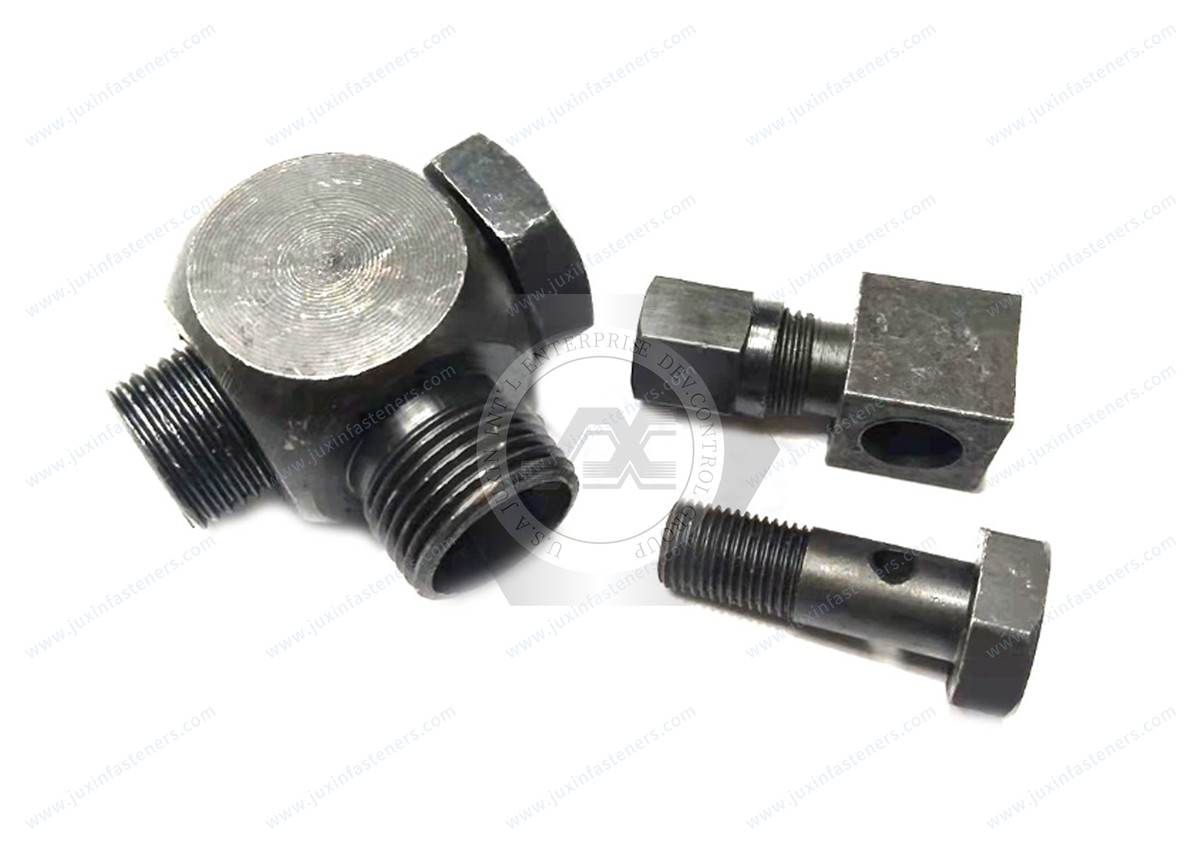

Q817 Clamping sleeve type articulated joint body&24° Cone Connectors - Angle Swivel Screw Connector

Shielded Micro M12 Screw-Together Connectors. threaded housing creates a secure connection that withstands the shaking and vibrating of industrial automation. A-coded, these connectors are often used to connect equipment to IO-Link controllers and devices within Profibus, DeviceNet, and other fieldbus systems. They work with both AC and DC devices such as sensors, motors, and light curtains. Poles and keyways on their face adhere to standard coding layouts to reduce the chance you’ll mismatch connections. Connectors with polyurethane outer insulation are halogen-free, so they won’t release toxic fumes or cause corrosion in metal. Polyurethane resists chemicals, oil, and UV rays, and is very flexible. It’s good for use in industrial environments and robotics. All meet IP ratings when either mated or capped. IP66 K-rated connectors are dust-tight and protected from washdowns. IP67-rated connectors are protected from dust and temporary submersion.
Add caps to protect connectors and maintain their IP ratings when not in use.
Note: They may have extra holes on the face that are not used.

Material: Carbon Steel
Surface treatment: galvanized passivated
There should be no cracks, pores, burrs, sharp edges, rust spots, and other defects that affect the use. In which thread AQL=1.5, ferrule end size AQL=1.5, other size AQL=4.0.
①,Example of numbering: DW=14, galvanized, rainbow-colored passivated ferrule articulated joint body number Q817B14.

Size Can also be According to the Customer's requirement please check the detailed specification sheet details PDF， CAD, 105-106 Page See more product details.

Packing: The inner packaging consists of polyfoam, while the outer layer is a carton. The carton sizes are 29*19*19.5 cm and 23.5*17.5*8 cm, respectively. The pallet dimensions are 215*100*90 cm, or they can be customized according to your requirements.
