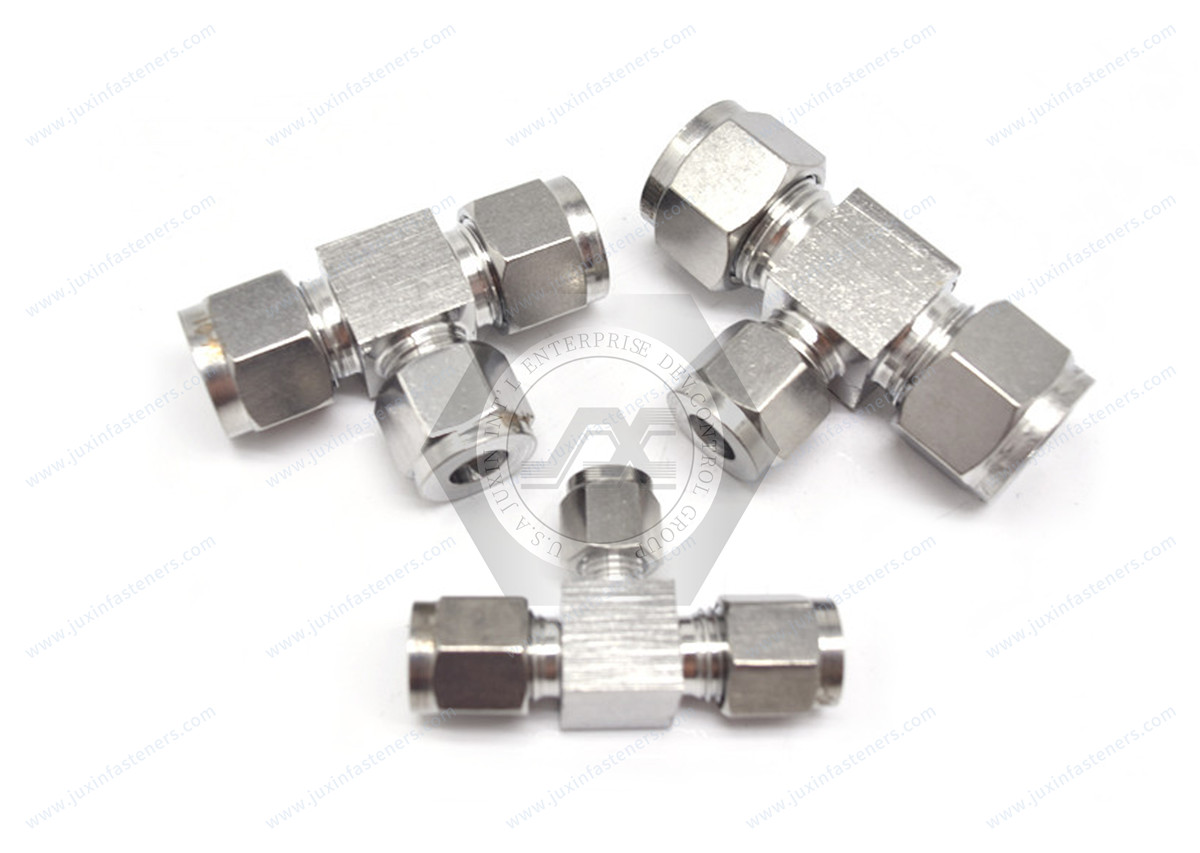

Q816 Clamping sleeve type three way joint body&24° Cone Connectors - Adjustable Tee

The tube fitting as the name suggests is a connector, generally connected to the pipeline, and is suitable for oil, gas, and other media for the pipeline system. Tube fitting has advanced structure, good performance, easy to use, no welding, and so on, so nowadays many mechanical products in the emergence of this type of tube fitting, directly on the set can be.
The structural characteristics of the ferrule type pipe fitting: ferrule type pipe fitting mainly consists of three parts: a 24 ° taper hole of the joint body, with a sharp ferrule, plays a role in the compression of the nut. Generally, when the nut is tightened, the ferrule is pressed into the 24° taper hole under pressure. This changes the shape of the tube to seal against the fitting body. At the same time, the ferrule will be pressed into the outer wall of the pipe with an annular closed edge, thus playing the role of secure closure, the middle part of the ferrule has some arches, with a certain degree of elasticity, which is conducive to sealing and preventing the nut from loosening, and the tail part of the ferrule will also shrink and hold the pipe.
Tube fittings are usually connected with fine threads or tapered threads made by the public, and are usually sealed with a sealing washer, a sealing washer is also used for pressure level, and another sealing washer of a different type is also used for high pressure. There are many types of tube fittings and they are generally manufactured to standard.

Material: Carbon Steel
Surface treatment: galvanized passivated
There should be no cracks, pores, burrs, sharp edges, rust spots, and other defects that affect the use. In which thread AQL=1.5, ferrule end size AQL=1.5, other size AQL=4.0.
①, Numbering example: DW=14, zinc-plated, rainbow-colored passivated ferrule combination tee fitting body number Q816B14.Flared pipe fittings are of structural type and consist of three parts: fitting body, bushing, and nut. The steel pipe port flare angle is 37°. The 37° flare angle of the steel pipe is pressed against the tapered surface of the fitting body to form a metal seal. The use of a bushing absorbs and reduces line vibration and tube fatigue, and the tube does not rotate when the nut is tightened.
1. There are two types of connection threads for flare fittings: metric threads and U.S. JIC threads.
2. Flare fittings are easy to install, do not require welding, and are widely used in low and medium-pressure piping systems. Since they are metal-to-metal hard seals, they are suitable for a wide range of temperatures.

Size Can also be According to the Customer's requirement please check the detailed specification sheet details PDF， CAD, 105-106 Page See more product details.

Packing: The inner packaging consists of polyfoam, while the outer layer is a carton. The carton sizes are 29*19*19.5 cm and 23.5*17.5*8 cm, respectively. The pallet dimensions are 215*100*90 cm, or they can be customized according to your requirements.
