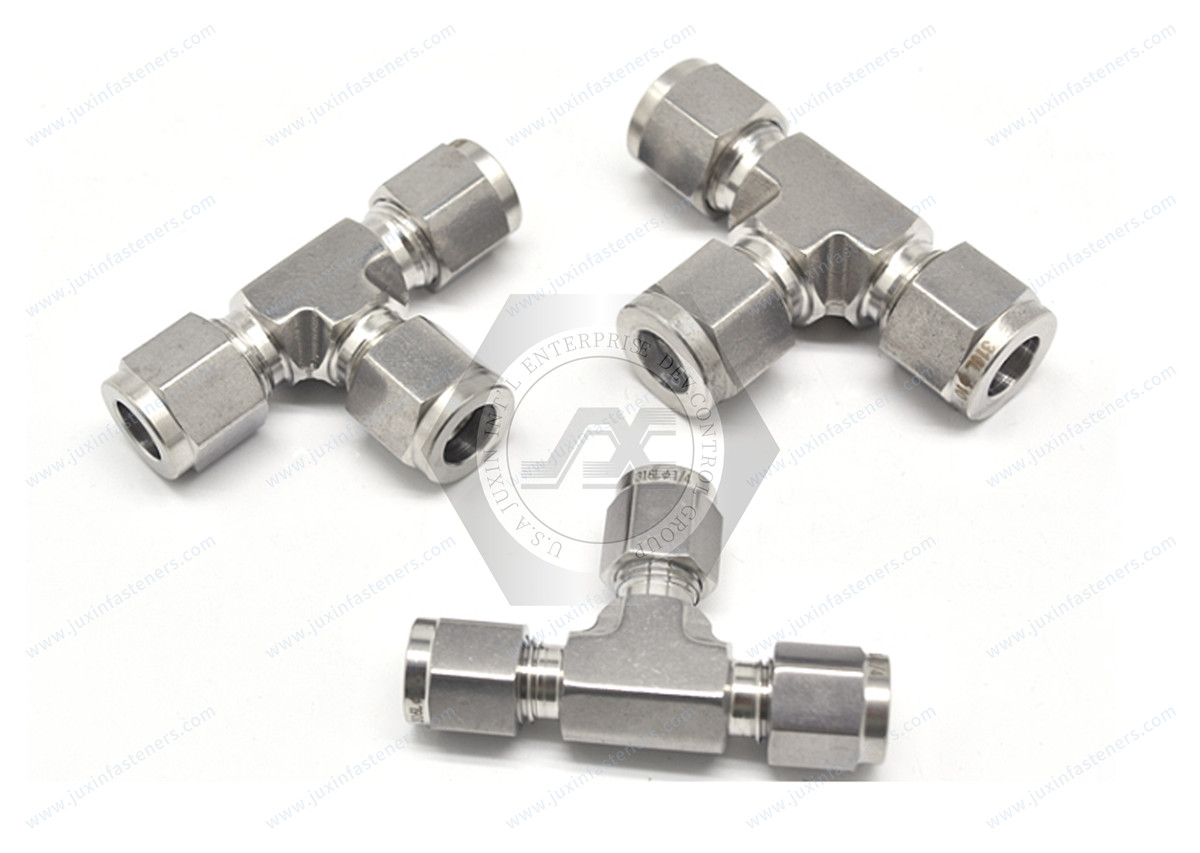

Q810 Sleeve type taper thread three way joint body&24° Cone Connectors - Male Branch Tee - Body

The tube fitting as the name suggests is a connector, generally connected to the pipeline, and is suitable for oil, gas, and other media for the pipeline system. Tube fitting has advanced structure, good performance, easy to use, no welding, and so on, so nowadays many mechanical products in the emergence of this type of tube fitting, directly on the set can be.
The structural characteristics of the ferrule type pipe fitting: ferrule type pipe fitting mainly consists of three parts: a 24 ° taper hole of the joint body, with a sharp ferrule, plays a role in the compression of the nut. Generally, when the nut is tightened, the ferrule is pressed into the 24° taper hole under pressure. This changes the shape of the tube to seal against the fitting body. At the same time, the ferrule will be pressed into the outer wall of the pipe with an annular closed edge, thus playing the role of secure closure, the middle part of the ferrule has some arches, with a certain degree of elasticity, which is conducive to sealing and preventing the nut from loosening, and the tail part of the ferrule will also shrink and hold the pipe.
Tube fittings are usually connected with fine threads or tapered threads made by the public, and are usually sealed with a sealing washer, a sealing washer is also used for pressure level, and another sealing washer of a different type is also used for high pressure. There are many types of tube fittings and they are generally manufactured to standard.

Tube fitting is suitable for oil, water, gas, and other non-corrosive or corrosive media sealing fittings, with aluminum-plastic tube specifications are more flexible, and pipeline connection, with a secure connection, good sealing performance and other characteristics, and thus in the oil refining, chemical industry, light industry, textile, national defense, metallurgy, aviation, shipping and other systems are widely used; also applies to a variety of mechanical engineering, machine tool equipment, such as the hydraulic transmission pipeline.

Size Can also be According to the Customer's requirement please check the detailed specification sheet details PDF， CAD, 101-102 Page See more product details.

Packing: The inner packaging consists of polyfoam, while the outer layer is a carton. The carton sizes are 29*19*19.5 cm and 23.5*17.5*8 cm, respectively. The pallet dimensions are 215*100*90 cm, or they can be customized according to your requirements.
