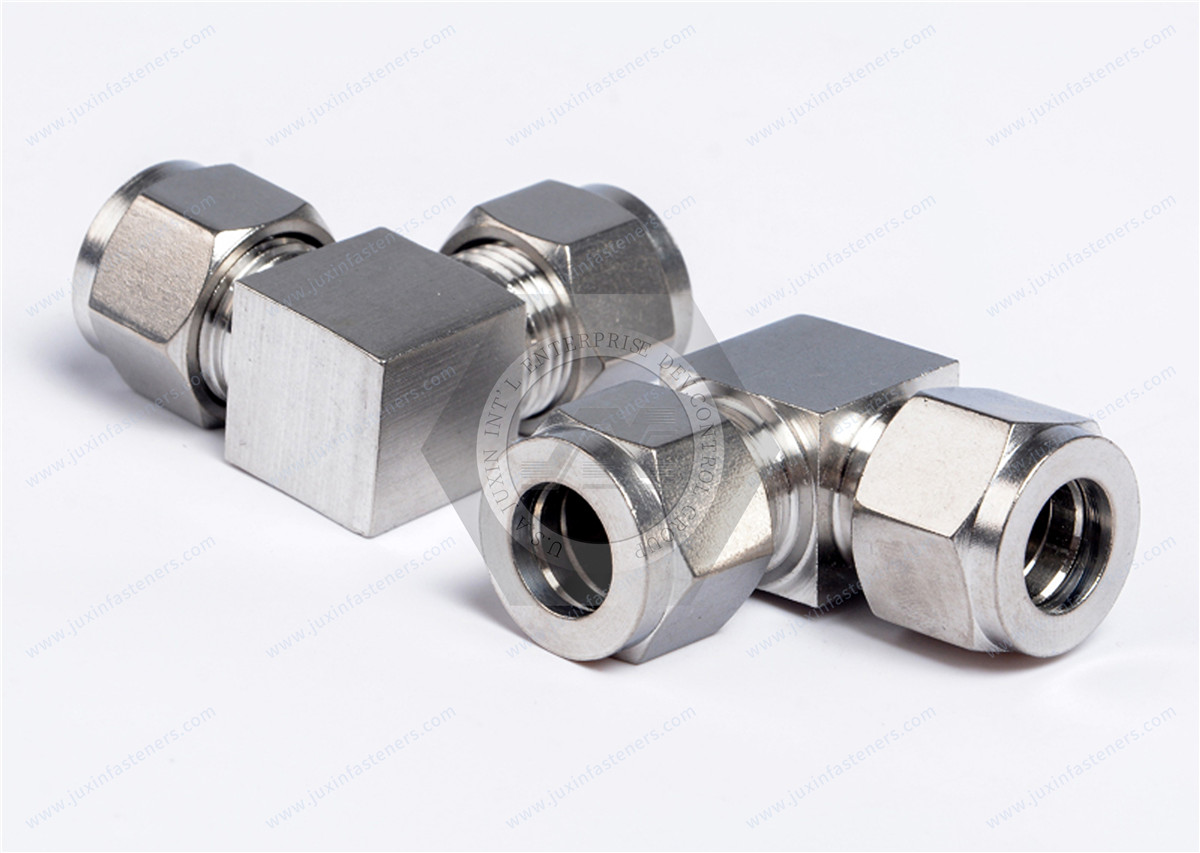

Q806 Clamping sleeve type right angle joint body&24° Cone connectors - Union Elbow

Low-Pressure Stainless Steel Threaded Pipe Fittings
Use these fittings in a low-pressure pipeline. 304 stainless steel fittings have very good corrosion resistance. 316 stainless steel fittings have excellent corrosion resistance. Female x male 90° elbow adapters are also known as street elbows. Medium-Pressure Iron and Steel Threaded Pipe Fittings.
With better strength than our low-pressure iron and steel pipe fittings, these can handle medium-pressure applications. They are for use in noncorrosive environments. Union connectors are separated into three pieces so you can access your line without unthreading pipe connections.

1、The use of tube fitting:
Tube fittings are suitable for piping systems with oil, gas, and water as media. Applicable pressure range:
(G) 25Mpa, (J) 40Mpa.
2、Features of tube fitting:
Tube fittings have advanced structure, good performance, easy to use, no welding, no need to
A series of advantages such as pipe flaring. Therefore, the ferrule-type fitting has been widely used in all kinds of mechanical
Hydraulic, and pneumatic systems, but the ferrule manufacturing precision of the ferrule fittings is higher, due to the complexity of the process.
Not suitable for sporadic or small batch manufacturing, need to specialize in production.
3, tube fitting structure and working principle:
Tube fitting mainly includes three parts:
(1) With 24 ° taper hole joint body.
(2) with a sharp inner edge of the ferrule
(3) The nut that plays a role in compression.
When the nut is tightened, the ferrule is pushed into the 24° taper hole under pressure. The ferrules are then deformed under pressure, making the ferrules form a ball with the tapered surface of the fitting body.
Ferrules and the connector body taper to form a spherical contact seal. At the same time, the inner edge of the ferrule is embedded in the outer wall of the tube, and a ring is pressed into the outer wall.
At the same time, the inner edge of the ferrule is embedded in the outer wall of the tube, which presses out an annular closed edge on the outer wall, thus playing a reliable sealing role.
The middle part of the ferrule is slightly arched and has a certain degree of elasticity, which is conducive to sealing and preventing the nut from loosening, and the end of the ferrule is also radially contracted to hold the tube.
Radial contraction and hold the tube.

Size Can also be According to the Customer's requirement please check the detailed specification sheet details PDF， CAD, 101-102 Page See more product details.

Packing: The inner packaging consists of polyfoam, while the outer layer is a carton. The carton sizes are 29*19*19.5 cm and 23.5*17.5*8 cm, respectively. The pallet dimensions are 215*100*90 cm, or they can be customized according to your requirements.
