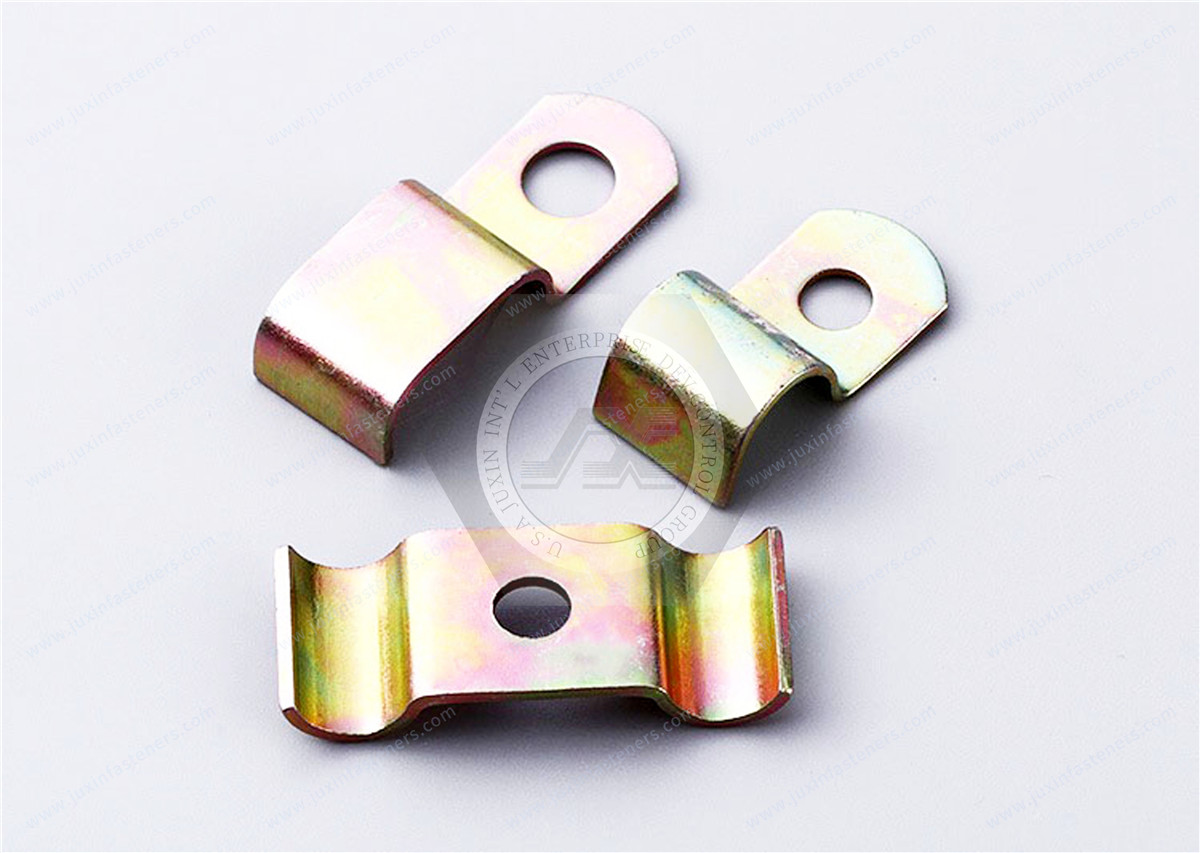

Q685 One End Fixing Clips for Twin Pipes (d=6.5)

①, Example of numbering:
1. D=10, d=6.5, galvanized, iridescent passivated one-end fixed double pipe clamps are numbered Q68510.
2. D=10, d=6.5, plastic coated one-end fixed double pipe clamps are numbered Q68510F4.
Material: 08, 08F, Q235F
According to the functional requirements, in the zinc-plated passivation treatment of the clamping sheet of the clamping part of the tube polyethylene, vulcanized rubber coating, or vulcanized rubber sleeve, vulcanized rubber should be added to the black carbon and stabilizers, the
The color is black and the thickness is 0.8mm~1.5mm. discoloration, deformation, and deterioration are not allowed;
The polyethylene coating or vulcanized rubber coating is not allowed to have cracks, burrs, scratches, depressions, bubbles, ripples, impurities, and rough surfaces;
The thickness of the polyethylene coating or vulcanized rubber coating shall be uniform.

A U-bolt is a fastener with a U-shaped cross-section. It is usually made of metal material and has a pair of parallel threaded rods and a U-shaped chuck that connects the two threaded rods. Both ends of the threaded rod can be tightened by nuts to achieve tightening of the connector. The design of the U-bolt enables it to provide greater tensile strength and shear strength and is suitable for structures that need to withstand large tensile and shear forces. A U-shaped pipe clamp is a connector used to fix a pipe. It is usually made of metal material with a U-shaped chuck and two bolts. The design of the U-shaped chuck allows it to be tightly secured around the pipe, while bolts are used to connect the U-shaped chuck to a bracket or other structure. The main function of the U-shaped pipe clamp is to ensure the stability and safety of the pipeline and prevent the pipeline from loosening or falling off during use.

Size Can also be According to the Customer's requirement please check the detailed specification sheet details PDF， CAD, 91-92 Page See more product details.

Packing: The inner packaging consists of polyfoam, while the outer layer is a carton. The carton sizes are 29*19*19.5 cm and 23.5*17.5*8 cm, respectively. The pallet dimensions are 215*100*90 cm, or they can be customized according to your requirements.
