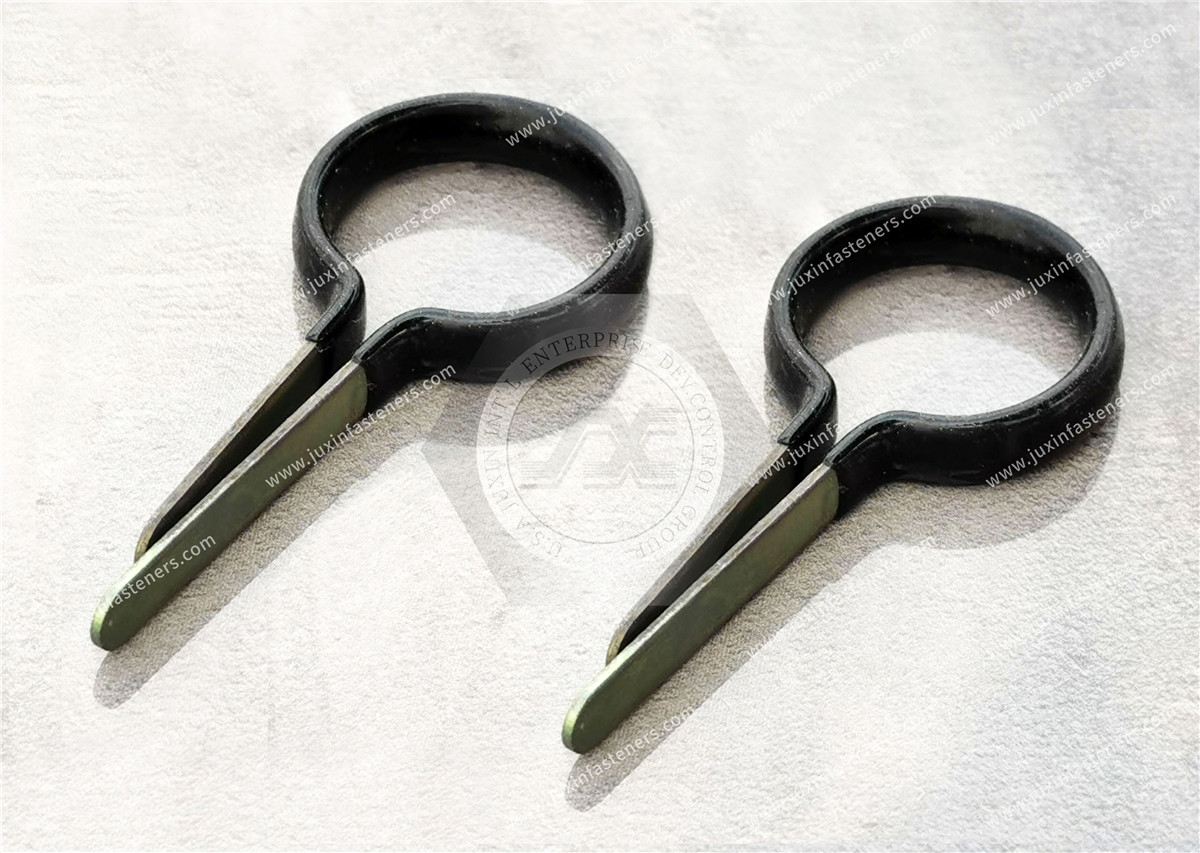

Q680 Open clamp&Split Clamps

Material: galvanized passivated, Fe/Zn12c
Test Method: At 0℃, unfold both legs to 90°, then bring them together and repeat 5 times, the opening clip will not break and the coating will not come off.
Surface coating: according to the functional requirements, can be in the zinc-plated passivation treatment of the clamp piece of the clamping part of the tube to increase polyethylene, vulcanized rubber coating or vulcanized rubber sleeve, vulcanized rubber should be added to the black carbon and stabilizers, the color of black, the thickness of 0.8mm ~ 1.5mm.
Defects: Discoloration, deformation, and deterioration are not allowed;
Polyethylene coating or vulcanized rubber coating is not allowed to have cracks, burrs, scratches, depressions, bubbles, ripples, impurities, and rough and uneven surfaces; the thickness of polyethylene coating or vulcanized rubber coating should be uniform and consistent.
1. D=16, galvanized, iridescent passivated open clamp No. Q68016.
2. D=16, plastic coated opening clip No. Q68016F4.

Metal dip plastic pipe clamp also called dip plastic clamp, is used to fix wire harnesses, corrugated pipe, pipe and cable common tools, metal body generally adopts iron galvanized or 304 stainless steel processing, surface PVC liquid dip plastic treatment process, with excellent corrosion resistance and reliable protection. R-type single tube clip, R-type dip plastic multi-tube clip, U-type dip plastic ride, O-type cable clip, a font dip plastic clip, T type wire harness clip are available.
1. The coating film has strong adhesion, low-temperature resistance, impact resistance, wear resistance, moisture and heat resistance, salt spray resistance, tensile resistance, acid and alkali resistance, aging resistance, high-pressure resistance, chemical resistance, excellent weather resistance, and will not crack in open use.
2. The electrical insulation performance of the dip tube clip coating film is excellent, and it can maintain its characteristics even when soaked in brine solution.
3. The film has good flexibility, excellent tensile strength, and elongation at break.
4. The dipping liquid of the plastic tube clip does not contain toxic and heavy metal ions, anti-bacterial and environmental protection, the raw materials can be recycled, the film thickness can be controlled, and there are almost no three wastes in the production process, and the production conditions are mild, which is conducive to environmental protection.

Size Can also be According to the Customer's requirement please check the detailed specification sheet details PDF， CAD, 89-90 Page See more product details.

Packing: The inner packaging consists of polyfoam, while the outer layer is a carton. The carton sizes are 29*19*19.5 cm and 23.5*17.5*8 cm, respectively. The pallet dimensions are 215*100*90 cm, or they can be customized according to your requirements.
