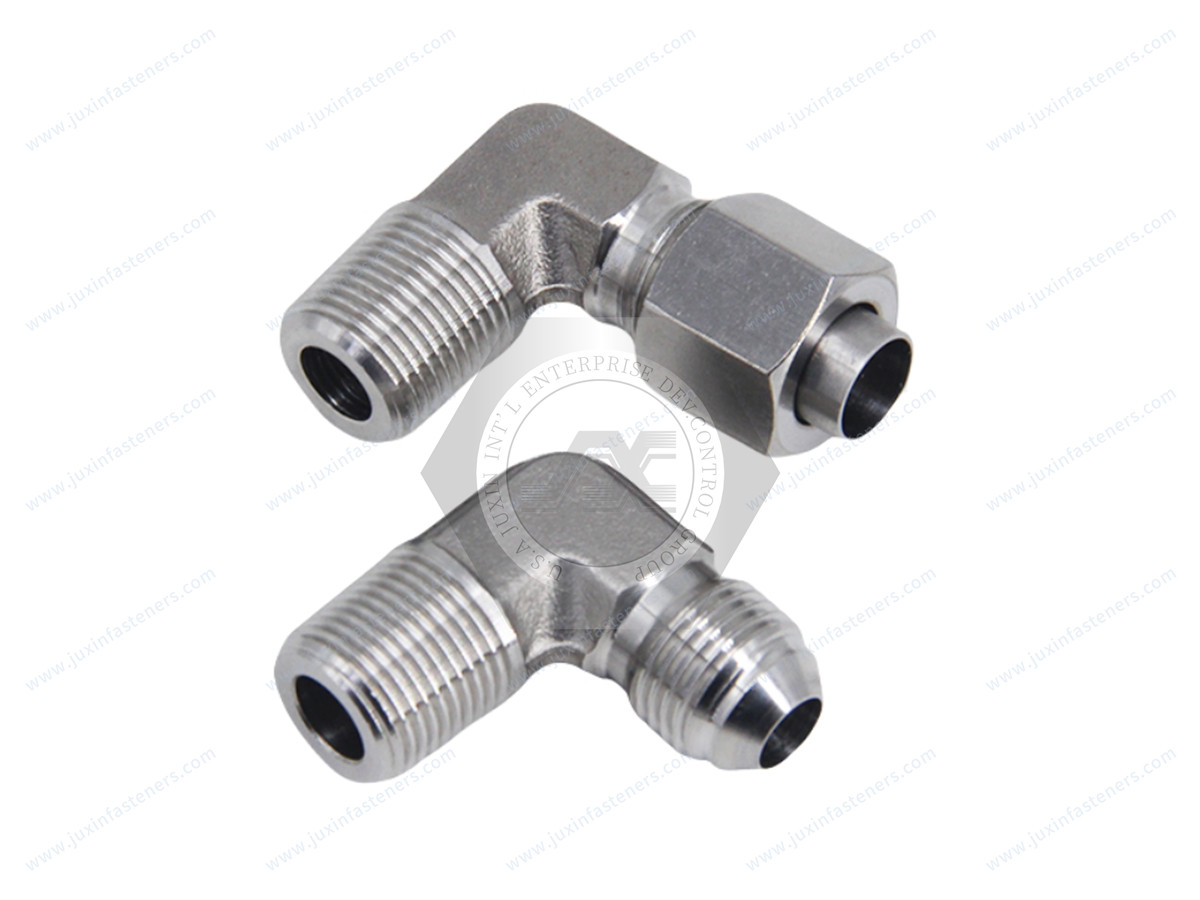

Q654 Flared taper thread right angle pipe joint&37° Flared Fittings with Thread Sealant for Stainless Steel Tubing

37° Flared Fittings with Thread Sealant for Stainless Steel Tubing.For Use With Air, Hydraulic Fluid, Isopropyl Alcohol, Natural Gas, Phosphoric Acid, Water
Temperature Range:
Adapters: -420° to 450° F
Sleeves and Nuts: -420° to 1,200° F
Tubing: Use with seamless or welded 304 or 316 stainless steel that meets ASTM A213, ASTM A249, or ASTM A269
Specifications Met: ISO 8434, SAE J514.The male pipe threads on these fittings have a sealant applied for extra protection against leaks. Also known as JIC (Joint Industrial Council) fittings, they provide a tight metal-to-metal seal on tubing that is flared to 37°. They are 316 stainless steel for excellent corrosion resistance. Fittings require a nut and a sleeve (ferrule) for each tube end. Nuts and sleeves are sold separately.

37° Flared Fittings for Stainless Steel Tubing.Tubing: Use with welded or seamless 304 or 316 stainless steel that meets ASTM A213, ASTM A249, or ASTM A269
Specifications Met: ISO 8434, SAE J514, except fittings with BSPP and BSPT threads, meet SAE J514 only
Also known as JIC (Joint Industrial Council) fittings provide a tight metal-to-metal seal on tubing that is flared to 37°. They are 316 stainless steel for excellent corrosion resistance. Fittings require a nut and a sleeve (ferrule) for each tube end. Nuts and sleeves are sold separately.BSPP threads and UN/UNF (SAE Straight) male threads have a gasket to protect against leaks. UN/UNF (SAE Straight) threads are also known as O-ring boss threads.
Precision AN 37° Flared Fittings for Stainless Steel Tubing. For Use With Air, Cutting Oil, Fuel Oil, Hydraulic Fluid, Mineral Oil, Water
Temperature Range: -320° to 1200° F
Tubing: Use with seamless 304 or 316 stainless steel
Specifications Met: See Table
The threads on the tube end of these fittings are Class 3A or 3B and adhere to tighter tolerances than other 37° flared fittings. They are made to exact AS (formerly AN) specifications and provide a tight metal-to-metal seal on tubing that is flared to 37°. Fittings require a nut and a sleeve (ferrule) for each tube end. Nuts and sleeves are sold separately.
304 stainless steel fittings have very good corrosion resistance. 316 stainless steel fittings have excellent corrosion resistance.

Size Can also be According to the Customer's requirement please check the detailed specification sheet details PDF， CAD, 107-108 Page See more product details.

Packing: The inner packaging consists of polyfoam, while the outer layer is a carton. The carton sizes are 29*19*19.5 cm and 23.5*17.5*8 cm, respectively. The pallet dimensions are 215*100*90 cm, or they can be customized according to your requirements.
