Washers, Circlips, Rings, Seals, O-Rings&Nut plates&Clip Nuts

Q439 A Clip-On External Retaining Rings

Material SUS304.316 elastic hardening treatment, SK5.65Mn: stainless steel, spring steel, Brass 65Mn

Standard:Q439


Share:

Product Specification

Slide these rings into a groove near the end of the shaft and the tab locks them in place. Lift the tab to remove. Ring ID is measured with the ring uninstalled. The black-phosphate finish is mildly corrosion-resistant in dry environments.Shaft retaining ring specification range: Φ8-Φ200; heat treatment needs to be quenched and tempered, HRC 44-51 (process reference value); material to 65Mn spring steel is the main, the product surface treatment, spring steel is basically heat-treated blackened or phosphatized, to ensure that the hardness, elasticity, and uniformity of the surface of the surface flush de-burr. Stainless steel, stainless steel retaining ring surface color bright. We can also be customized according to your needs, according to your conditions of use, and select the appropriate material, to maximize your needs.


The function of shaft retaining rings is to limit axial and rotational displacements, preventing shafts from shifting or wobbling when in use, and also preventing shafts from breaking or deforming when subjected to external forces. Retaining rings are usually made of metal or plastic materials and are characterized by wear resistance, corrosion resistance, and high-temperature resistance, and are suitable for a variety of mechanical equipment and industrial applications.

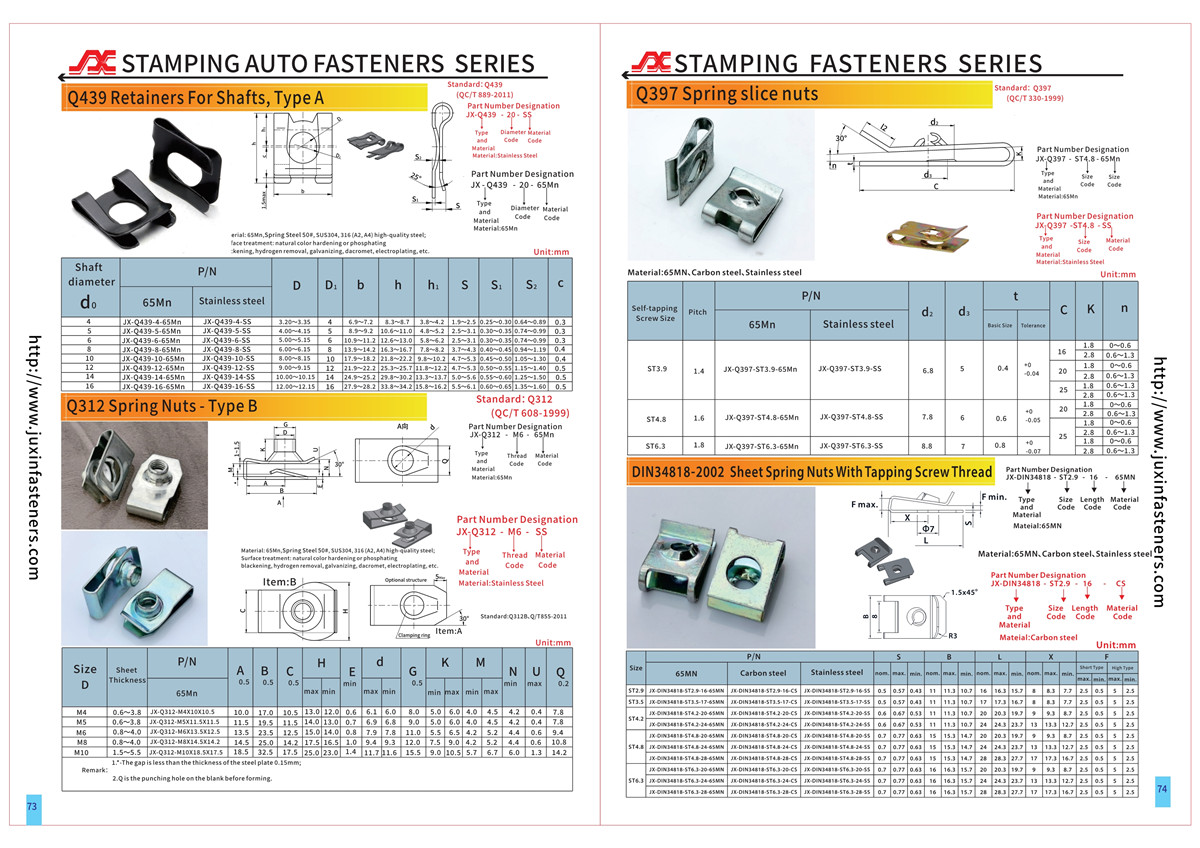

Size Can also be According to the Customer's requirement please check the detailed specification sheet details PDF, CAD, 73-74 Page See more product details.


Product Packaging

Packing: The inner packaging consists of polyfoam, while the outer layer is a carton. The carton sizes are 29*19*19.5 cm and 23.5*17.5*8 cm, respectively. The pallet dimensions are 215*100*90 cm, or they can be customized according to your requirements.

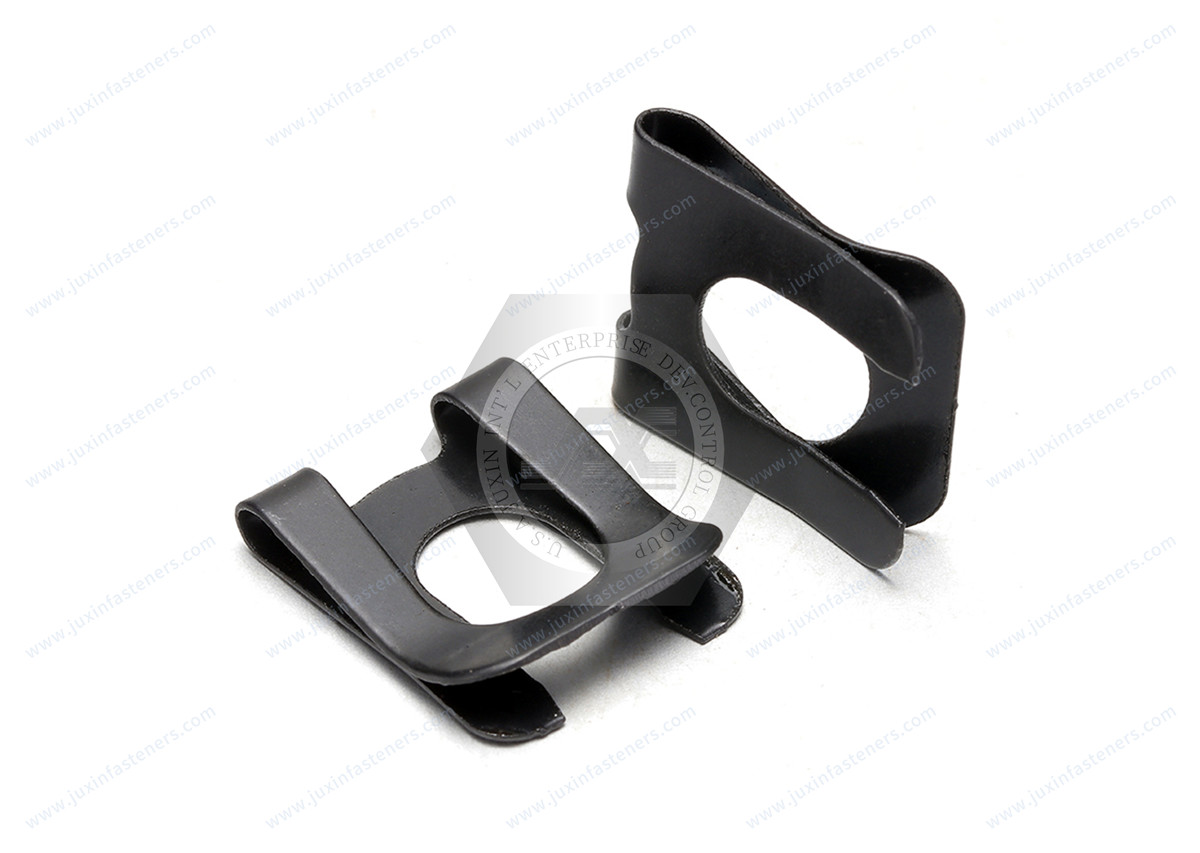

Product Pictures

Q439 A Clip-On External Retaining RingsQ439 A Clip-On External Retaining Rings
