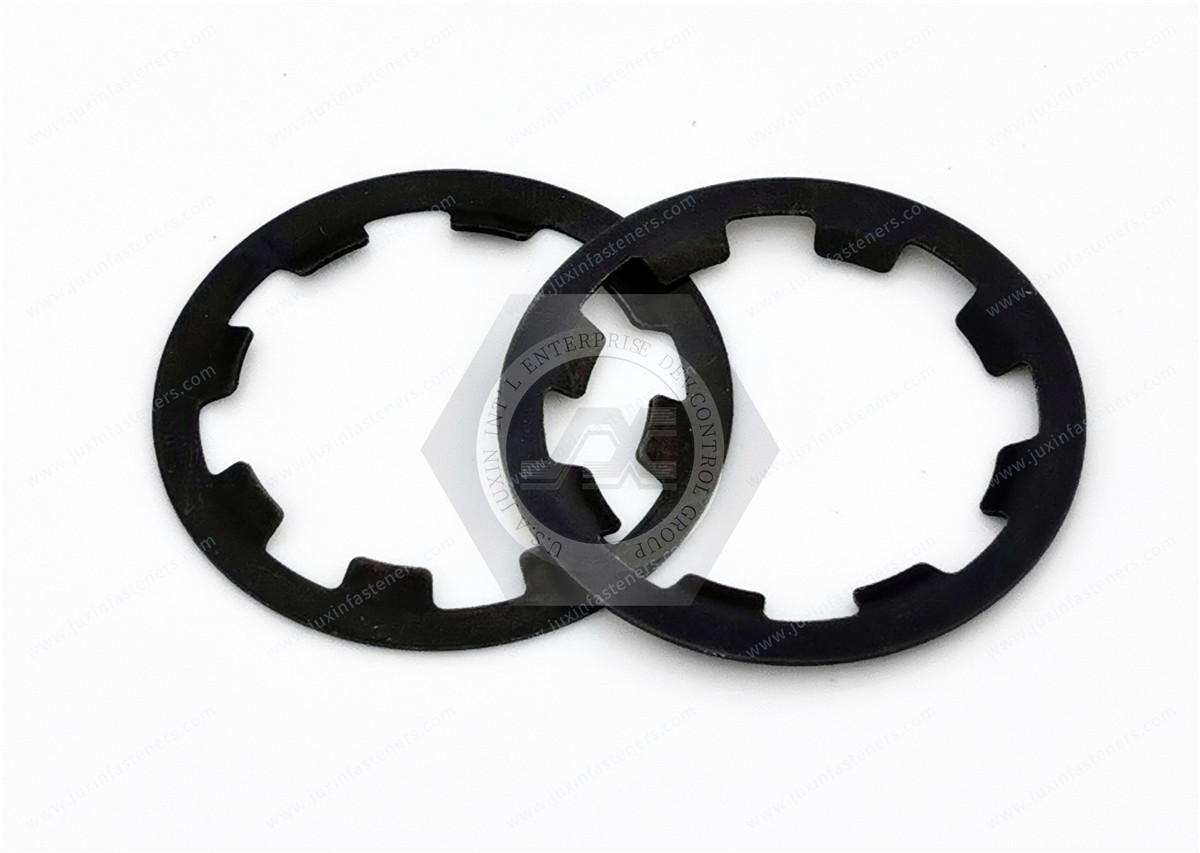

Light retaining ring

Material = SK7 spring steel Stainless steel Hardness = HRC44-52 Surface treatment = Black dyed, phosphated, nickel plated.Bearing clamps, also known as shaft clamp retaining ring, is a kind of installation in the groove shaft, used as a fixed part of the hole to the movement, this kind of retaining ring of the inner diameter is slightly smaller than the diameter of the assembly shaft. Installation must use the spring pliers, the jaws inserted into the jaw hole of the retaining ring, and expansion of the retaining ring, to put into the pre-processed shaft groove.



Now that you know how lock washers work and the basic types, you need to know how to attach them.
First, determine where you want the lock washer to go and which type is best suited for the task
Use a ruler to measure the shank width of the bolt and choose a lock washer of appropriate size
Place the lock washer under the threaded fastener and ensure that it has a snug fit. If you’re using a lock washer with teeth, make sure they will engage with the appropriate surfaces. If they don’t, swap out the washer for a different one.
Turn the fastener with a ratchet or wrench until it tightens to a firm connection. A torque wrench can rotate the fastener to a specific torque.
After tightening, ensure the lock washer will hold correctly. If a split washer has been flattened to the shape of a standard washer, it will not lock properly, so consider using a toothed washer instead.
Tip: Do not overtighten a lock washer. If a spring washer becomes flat, it can eliminate the extra tension and prevent the locking function from properly working.

Size Can also be According to the Customer's requirement please check the detailed specification sheet details PDF， CAD, 63-64 Page See more product details.

Packing: The inner packaging consists of polyfoam, while the outer layer is a carton. The carton sizes are 29*19*19.5 cm and 23.5*17.5*8 cm, respectively. The pallet dimensions are 215*100*90 cm, or they can be customized according to your requirements.
