JX-JIS 1216-2006 Bearing clamp &Push-On Spring Round Nuts

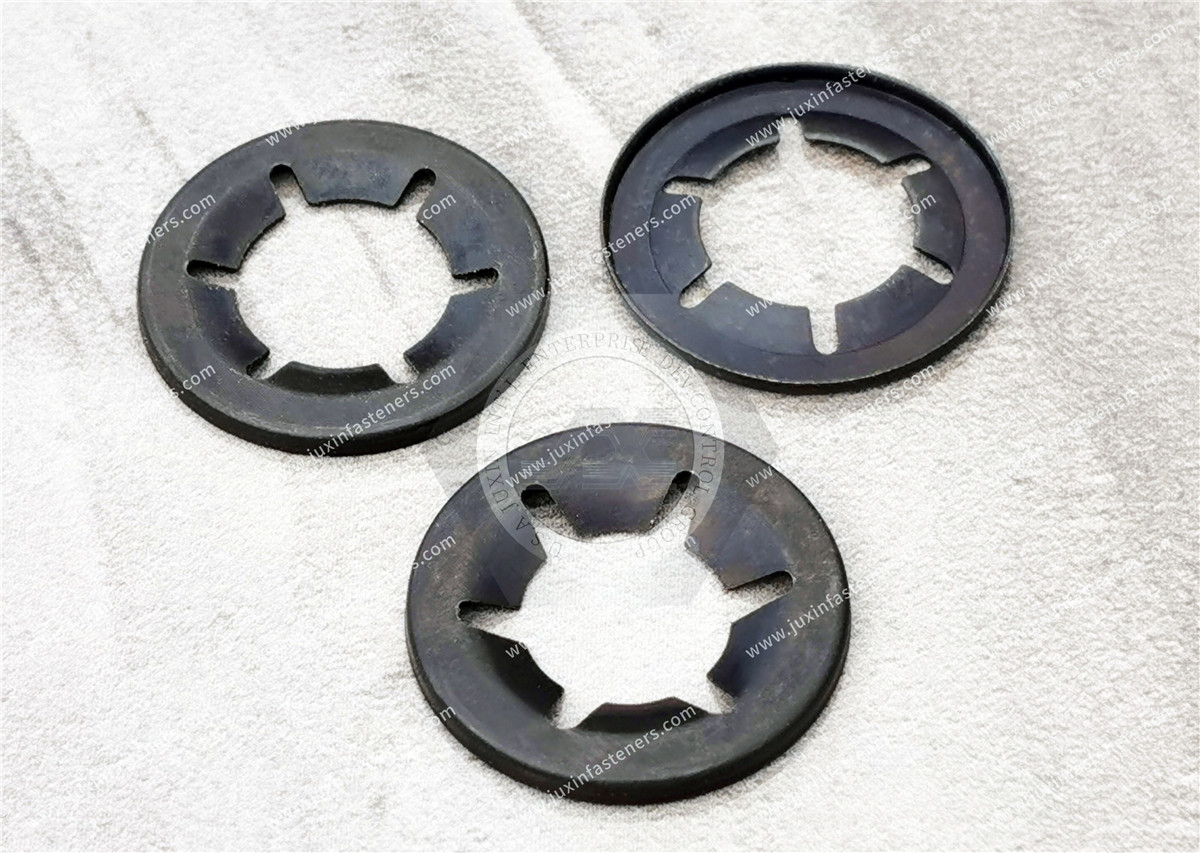

Push Nut: Round Flat Pushnut, Spring Steel, Zinc Plated, 5/16 in For Screw Size, 5/8 in Wd, 200 PK,Push On Fasteners Information
Push-on fasteners nut, also known as push-on nut push-on retainers or push-in fasteners, are hardware components that allow components to be quickly and securely assembled to a smooth shaft. A push-on fastener is constructed with radial fingers or teeth that are formed at an angle perpendicular to the shaft. This angle allows the fastener to slide onto the shaft in one direction while resisting motion in the reverse direction, providing sliding resistance to the assembly.
This attachment mechanism is similar in principle to the barbs on fish hooks or porcupine quills. During assembly, a push-on fastener slides quickly on the shaft and provides instant holding power. Other names for push-on retainers used throughout the world are push-on fixes, push-ons, hub nuts, quick lock washers, and axle washers.Push-on fasteners can provide component cost and assembly time savings in a well-suited application. In addition to providing a finished attachment function, a retaining fastener can be used to temporarily hold an assembly together before and while a higher-strength fastening mechanism, such as a locknut, is attached. Complex and multi-staged assemblies can benefit when there is physical transit between assembly stations. Push-on fasteners are used in a wide variety of applications including automotive, medical, and consumer products, such as furniture or toy assemblies that contain shafts and axles.

Types of Push-On Fasteners, There are several types of push-on fasteners. Push-on nuts / push nuts – These are the most common type of push-on fastener. Other common names are external fixing washers and push-on retainers, It is important that the shaft material is softer than the push nut. Push-on hat retainers – This type has a cap that covers the end of the rod or shaft providing protective and aesthetic benefits. Also known as cap nut, washer cap push nut, and hammer cap push nut. Speed nut – A speed nut slides quickly onto the shaft and is then locked with a radial motion applied to a self-threading feature. Push-on bolt retainer – Slips onto bolts and screws to hold them in position in a panel or other assemblies while a traditional nut is installed.

Size Can also be According to the Customer's requirement please check the detailed specification sheet details PDF， CAD, 45-46 Page See more product details.

Packing: The inner packaging consists of polyfoam, while the outer layer is a carton. The carton sizes are 29*19*19.5 cm and 23.5*17.5*8 cm, respectively. The pallet dimensions are 215*100*90 cm, or they can be customized according to your requirements.
