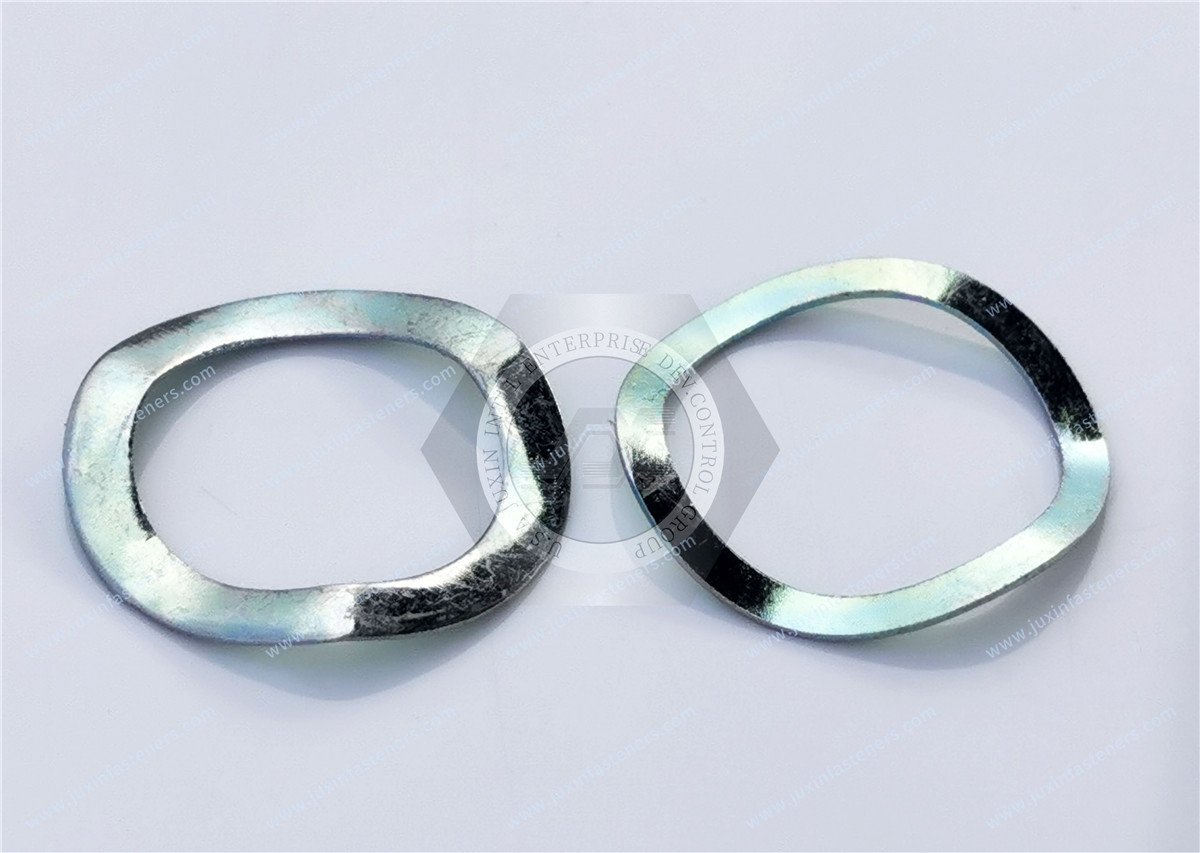

JB7590 Wave Washers&Spring washers for axial adjustment of ball bearings of small motors

Wave washers, sometimes called wave springs, have multiple waves in the axial direction, usually three but more often six. By increasing the number of waves, the thickness for a given load can be reduced by reducing deflection and increasing radial stress. Wave uniformity is important because the load/deflection rate does not start until all waves are uniformly loaded. Wave washers are ideal for obtaining loads when the load is static or when the operating range is small and axial space is limited. These washers are often used as pads or shims to accommodate variations where some pressure is required on free elements in the assembly. They can be used in place of spring washers to avoid surface damage. Wave washers are comparable in size.

The products are made of high-quality spring steel 65Mn (60Si2MnA/50CrVA/0Cr17Ni7A/SUS304), heat-treated in a specific way and according to the specific conditions, the hardness is generally controlled between HRC44-51, with a black surface and good elasticity. Wave springs are widely used in electric motors, textile machinery, hydraulic equipment, automotive, and other industries, mainly installed with the specifications (nominal size) appropriate bearing chamber or hole, the installation space is very small, with a special function of reducing noise and vibration.

Size Can also be According to the Customer's requirement please check the detailed specification sheet details PDF， CAD, 57-58 Page See more product details.

Packing: The inner packaging consists of polyfoam, while the outer layer is a carton. The carton sizes are 29*19*19.5 cm and 23.5*17.5*8 cm, respectively. The pallet dimensions are 215*100*90 cm, or they can be customized according to your requirements.
