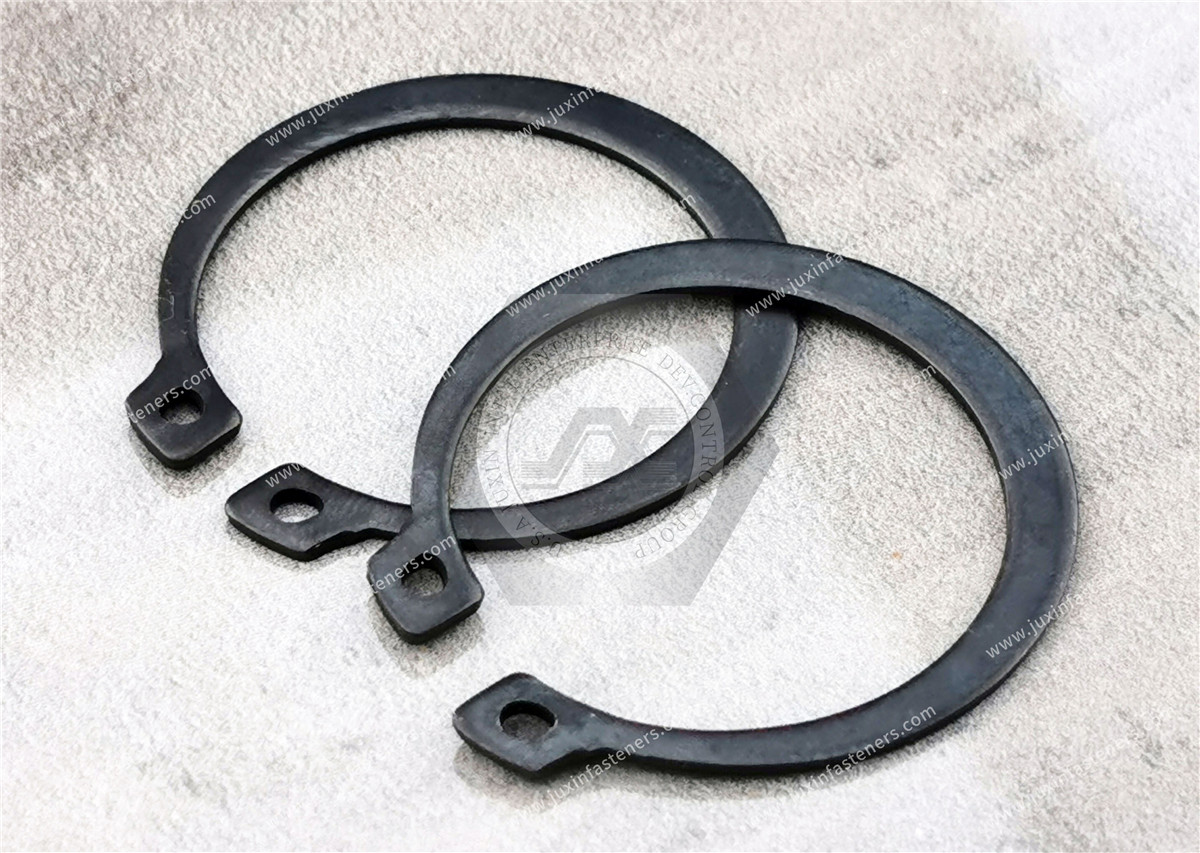

DIN471 Retaining Rings For Shafts - Normal Type

①, Hardness requirements: Shaft diameter d≤48mm, hardness 470-580 HV or 47-54 HRC
48mm＜shaft diameter d≤200mm, hardness 435-530 HV or 44-51 HRC
200mm＜shaft diameter d≤300mm, hardness 390-470 HV or 40-47 HRC.
②, Dimension n shall not exceed the maximum value of dimension a.

The hardness of DIN 471 shaft retaining rings is specified as follows:
d 1 ≤ 48 mm Hardness:470 HV-580 HV
48 mm < d1 ≤200 mm Hardness: 435 HV-530 HV
200 mm < d1 ≤300 mm Hardness: 390 HV - 470 HV
Regarding the surface treatment of shaft retaining rings: The surface of spring steel shaft retaining rings is generally blackened and oiled, due to the deformation that must be generated when the ring is installed, it is rare to see products with zinc plating on the surface (hydrogen embrittlement fracture risk) and non-electrolytic zinc flake coatings (coating flaking), and it is not recommended that customers choose shaft retaining rings with plating.
The main routine tests for retaining rings are hardness tests and bending tests.
Material hardness test: Vickers hardness with reference to DIN EN ISO 6507-1
Hardness test: Vickers hardness refers to DIN EN ISO 6507-1

Size Can also be According to the Customer's requirement please check the detailed specification sheet details PDF， CAD, 39-40Page See more product details.

Packing: The inner packaging consists of polyfoam, while the outer layer is a carton. The carton sizes are 29*19*19.5 cm and 23.5*17.5*8 cm, respectively. The pallet dimensions are 215*100*90 cm, or they can be customized according to your requirements.
