DIN3017-2-2002 Hose Clamps-Part 2:Steel ClampsWith Fastening Lugs-Type B2

Fastening Clamps With Fastening Lugs - Form H1 / H2.
The production process is generally divided into five steps to complete.
1. Cutting, cutting the piece by manual release machine break material, break material cutter is also after special processing is not a flush knife, but similar to the "V" shaped cutter, to make such a cut for the back of the continued processing to lay the groundwork.
2. Crimping This process seems very simple in fact, there are a lot of issues that need attention, such as crimping the width of the problem and the depth of the control. The primary role of the crimp is to protect the pipe is prohibited hoop will not be because of the band's burrs and damage to the line causing unnecessary economic losses.
3. Molding and molding of this step is crucial to the difficulty of controlling the curvature of the curls and the length and tightness of the "ears". The fourth part is the "clip mother piece", this process is mainly a threaded buckle with a piece of iron fixed to the other end of the "ear". This is the time to use the initial cutting is left behind the "ambush", similar to the V-shaped cut to ensure that the screws have a certain amount of space that can pass through the mother piece, but also be able to fix the mother piece. After a few steps, a miniature clamp is completed. However, in the production of most of the assembly line production is not individually completed. So the steps we have just described are all condensed into a single step. When everything is done, it needs to be galvanized, and after that, it's a complete product.

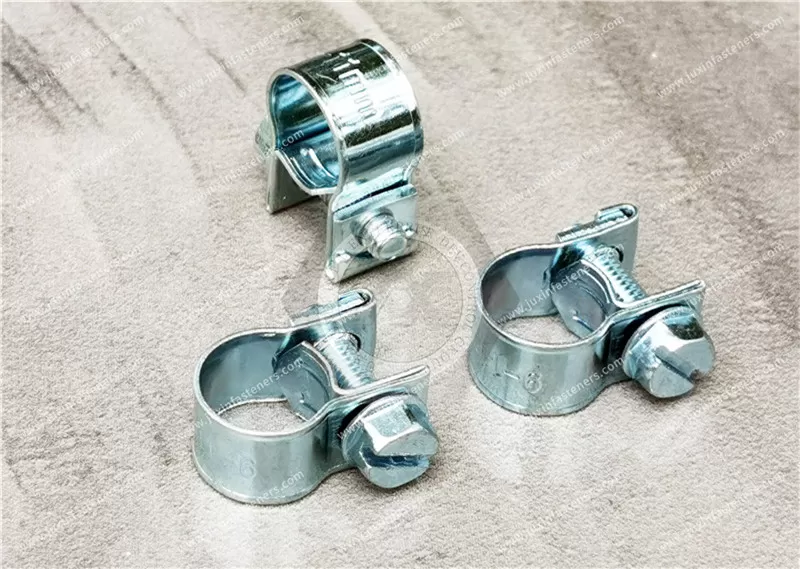

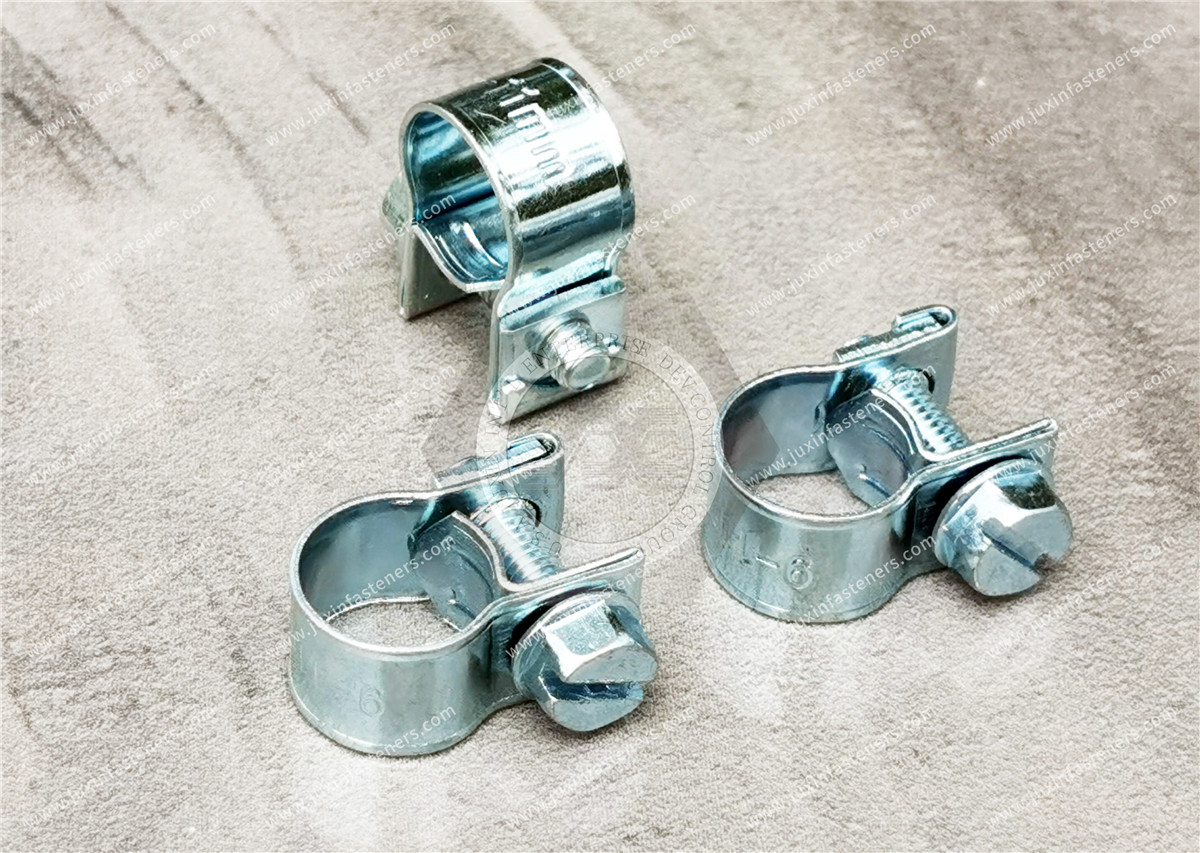

The main reason why it is called a miniature clamp is that it is relatively small, generally the larger is 34mm in diameter, that is to say, the clamp can be fastened to a maximum outside diameter of 34mm pipe. The mini clamps are made of carbon steel and are galvanized.

Carbon steel Throat hoop, mini throat hoop, Clamp Specification range: 6-8/32-34 Material: W1 steel belt, screws, nuts are iron galvanized W4 steel belt, screws, nuts are 301ss/304ss

Size Can also be According to the Customer's requirement please check the detailed specification sheet details PDF， CAD, 81-82 Page See more product details.

Packing: The inner packaging consists of polyfoam, while the outer layer is a carton. The carton sizes are 29*19*19.5 cm and 23.5*17.5*8 cm, respectively. The pallet dimensions are 215*100*90 cm, or they can be customized according to your requirements.
