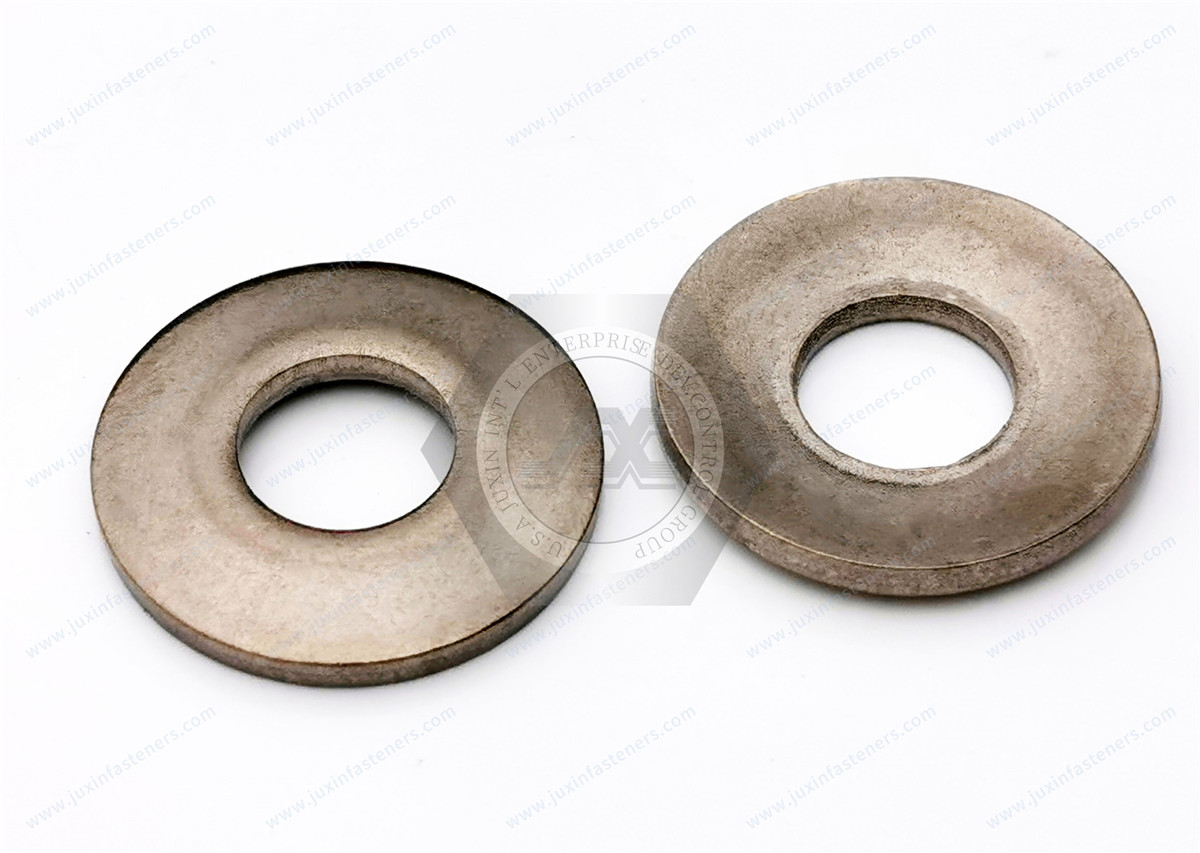

Conical Spring Washers - Class 1 - Light Load &Conical Spring Washers for Bolted Connections

Disc springs are special springs that are tapered in the axial direction and are subjected to loads. After being deformed by the load, they save a certain amount of potential energy, and when the bolts appear to be slack, the disc springs release part of the potential energy in order to maintain the pressure between the flange connections to meet the sealing requirements. The stress distribution of the disc spring decreases uniformly from inside to outside, which can realize the effect of low stroke and high compensation force.

1. Large stiffness, strong buffer vibration absorption ability, can withstand large loads with small deformation, suitable for axial space requirements of small occasions.
2. Variable stiffness characteristics, the spring has a wide range of non-linear characteristics.
3. With the same disc springs using different combinations, can make the spring characteristics in a wide range of changes. Can be used in pairs, and stacked combinations, and can also be used to compound different thicknesses and different numbers of pieces of the combination of ways.
4. When stacked, the greater the number of springs, the greater the load relative to the same deformation.
Characteristics
◆ Short stroke, heavy load
◆Small space required
◆ Easy to combine and use
◆ Easy maintenance and replacement
◆Economic and high safety
Long service life

Size Can also be According to the Customer's requirement please check the detailed specification sheet details PDF， CAD, 37-38 Page See more product details.

Packing: The inner packaging consists of polyfoam, while the outer layer is a carton. The carton sizes are 29*19*19.5 cm and 23.5*17.5*8 cm, respectively. The pallet dimensions are 215*100*90 cm, or they can be customized according to your requirements.
