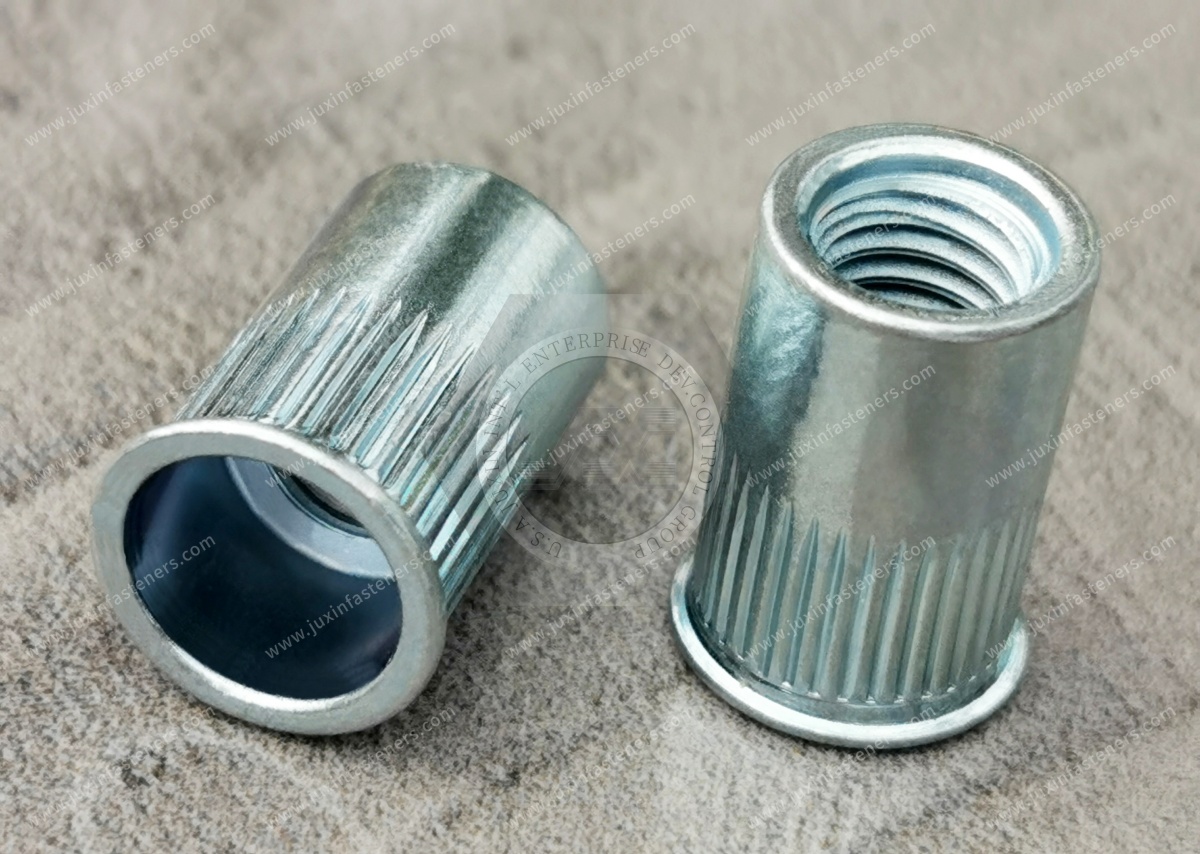

Thin Head Open Round Body Knurled Blind Rivet Nuts blue zinc

Name: Thin Head Open Round Body Knurled Blind Rivet Nuts—Open End

Size: M3、M4、M5、M6、M8、M10、M12

Material: Carbon Steel

Surface treatment: ROHS Blue Zinc

Grip Range: 0.5-6.0mm

Blind threaded rivet nuts with thin heads and knurled open ends are ideal for load-bearing applications due to the large diameter head. They offer increased resistance to pull-out while reinforcing the hole.

These rivet nut fasteners, a form of an internally threaded insert, are used in applications where the material thickness is too small to tap a conventional thread. Rivet nuts provide a vital thread in thin sheets of material, ensuring high-strength fastening from bolts and other threaded articles, and thereby guaranteeing reliable performance.

The knurled body of the countersunk rivet nut provides an ‘anti-rotation’ feature, a design element that ensures stability by preventing movement when subject to vibration, especially when installed into softer materials. The open-end style rivet nut allows the stud or male threaded component to thread through the rivet nut without constricting the length or protrusion of the male threaded part.

Rivet Nut Flanged Knurled Open End is installed using a unique tool with a threaded stud that engages with the internal threads of the rivet nut and pulls upwards, in turn deforming the unthreaded section of the rivet nut to expand under the reverse side of the material.

Juxin Fasteners offers stainless steel, zinc-plated steel, and aluminum as standard in A2 and A4.

Sizes range from M3 to M12, with larger diameters also available to order.

Non-standard sizes and materials are available to order as specials, including small-volume manufacture, modifications, and bespoke parts made to drawings. Minimum order quantities apply.
