Steel

Thin Head Closed end Round Body blind Rivet Nuts

Name: Thin Head Closed end Round Body Plain Blind Rivet Nuts—Closed End

Size: M3、M4、M5、M6、M8、M10

Material: Steel

Surface treatment: ROHS Blue Zinc

Grip Range: 0.5-4.5mm.

Steel galvanized small head closed-end blind nut riveter kit installation is very convenient, with a pneumatic or manual rivet gun can be riveted at once, but in the riveting, be sure to ensure that the riveting gun on the steel galvanized small head closed-end rivet nut and riveted to the workpiece is in a perpendicular state; in the riveting before the riveting also want to look at the riveting gun's gun nozzle screw is assembled correctly, such as the specifications of its size should be matched with the size of the steel galvanized small head closed-end rivet nut, each articulated parts of the fastening, and so on.

Closed-end blind rivet nuts provide a 100% watertight connection, meaning the thread cannot be damaged by water or dirt. The thread area is enclosed, which prevents leakage past the threads from either side of your application. These rivet nuts have a ribbed body to hold them in place when tightening a screw. The body and flange are zinc yellow-chromate plated steel for corrosion resistance. Install in a drilled hole using a rivet nut tool. The tool collapses the nut, creating a backside flange that holds the nut to the material. Length is measured from under the flange. Installed length is the maximum length of the barrel when installed.

These rivet nuts are particularly safe for use in electrical circuits since no fluids can get in.

Fast Facts:

Blind hole, one-sided installation capability.

Provide load-bearing threads in sheet materials.

Offers a water- and air-sealed connection.

It is suitable for use in electrical circuits and in any applications (containers, tanks, airco systems) where a water-sealed connection is needed.

Available in stock in steel. Other materials are available on demand.


Share:

Product Specification

Size can also be according to the customer's requirement. Please check the detailed specification sheet PDF and CAD. See more product details, PDF 91-92 Page.

The thread area is enclosed, which prevents leakage past the threads from either side of your application. These rivet nuts have a ribbed body to hold them in place when tightening a screw. The body and flange are zinc yellow-chromate plated steel for corrosion resistance. Install in a drilled hole using a rivet nut tool. The tool collapses the nut, creating a backside flange that holds the nut to the material. Length is measured from under the flange. Installed length is the maximum length of the barrel when installed.

Product Packaging

The inner packaging is a plastic bag, and the outer packaging is a carton. Then the tray. Carton size: 29*19*19.5CM and 23.5*17.5*8, CM and pallet size: 215*100*90CM, or as your request

Product Pictures

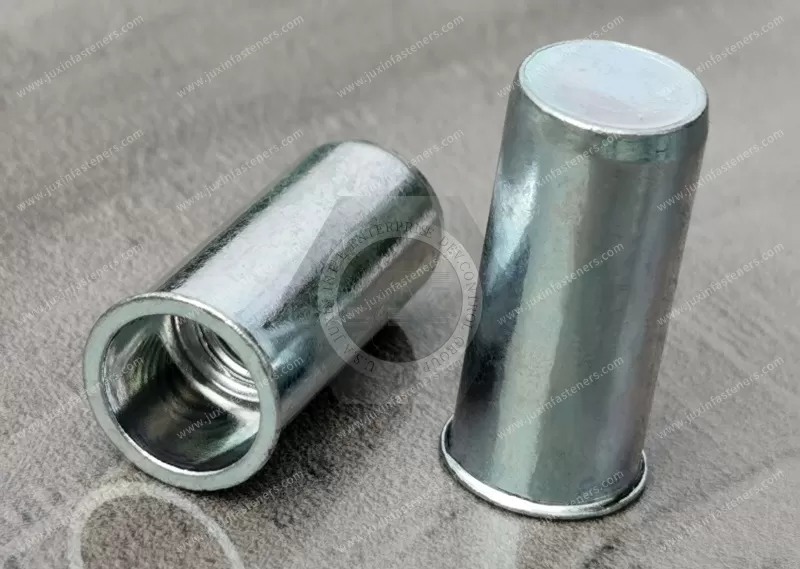

Thin Head Closed end Round Body blind Rivet Nuts

Thin Head Closed end Round Body blind Rivet Nuts

Thin Head Closed end Round Body blind Rivet Nuts
