Steel

Flat Head Closed Round Body Knurled Blind Rivet Nuts

Name: Flat Head Closed Round Body Knurled plain Blind Rivet Nuts—Closed End

Size: M3、M4、M5、M6、M8、M10、M12

Material: Carbon Steel

Surface treatment: Color Zinc

Grip Range: 0.5-5.5mm

Flat Head Rivet nuts provide a strong captivated thread in thin panels and applications where only one side of the panel is accessible, such as a box or tube section. Available in steel and stainless steel, they can be installed into panels as thin as 0.5mm and do not suffer from the maximum hardness limitations of self-clinching nuts, so they are suitable for installation into rigid or non-ductile panels. Requiring special tooling for installation - tools range from very low-cost hand tools for low volume to air-powered automatic installation guns for high-volume applications. Rivet nuts have an advantage over other captivated fasteners because they can be installed on-site or used for repair work to replace a previously installed fastener that has failed. The advantage of installation from one side of the application is that access to the back of the panel is never required.

The thread area is enclosed, which prevents leakage past the threads from either side of your application. These rivet nuts have a ribbed body to hold them in place when tightening a screw. The body and flange are zinc yellow-chromate plated steel for corrosion resistance. Install in a drilled hole using a rivet nut tool. The tool collapses the nut, creating a backside flange that holds the nut to the material. Length is measured from under the flange. Installed length is the maximum length of the barrel when installed.

Closed-end inserts offer the advantage of offering a 100% watertight connection, meaning the thread cannot be damaged by water or dirt.

In particular, these rivet nuts are safe for electrical circuits since no fluids can get in.

Fast Facts:

Blind hole, one-sided installation capability.

Provide load-bearing threads in sheet materials.

Offers a water- and air-sealed connection.

Suitable for use in electrical circuits and in any applications (containers, tanks, airco systems) where a water-sealed connection is needed.

Available in stock in steel. Other materials are available on demand.

how to install rivet nuts

how to remove rivet nut

how to use the rivet nut tool

how do rivet nuts work

how to install rivet nuts without a tool

how to install rivet nuts

installing rivnuts without tool

install rivet nut

how to install a rivet

how to install rivet nuts without tool

rivet nut installation


Share:

Product Specification

Size Can also be According to Customer's requirement and please check detailed specification sheet PDF, CAD, See more product details, PDF 91-92 Page

Product Packaging

The inner packaging is a plastic bag, and the outer packaging is a carton. Then the tray. Carton size: 29*19*19.5CM and 23.5*17.5*8, CM and pallet size: 215*100*90CM, or as your request

Product Pictures

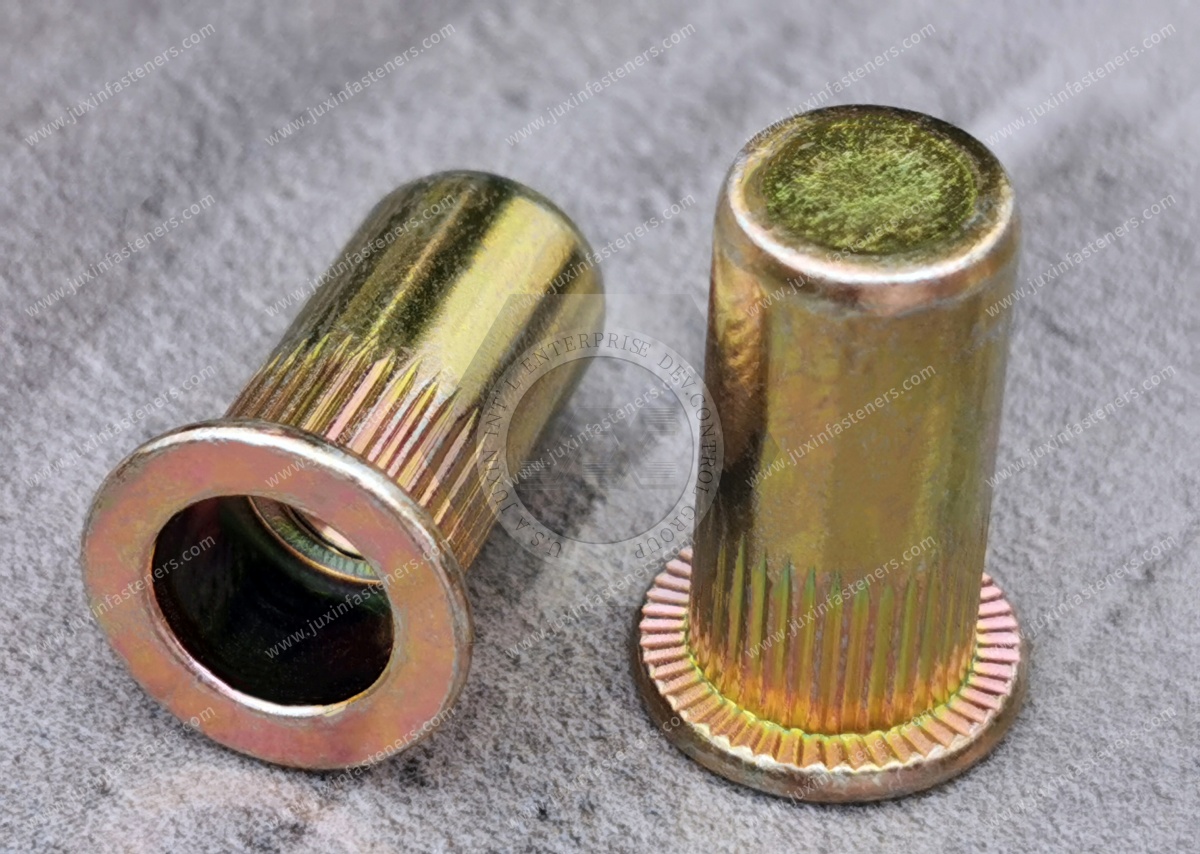

Flat Head Closed  Round Body Knurled Blind Rivet Nuts

Flat Head Closed  Round Body Knurled Blind Rivet Nuts

Flat Head Closed  Round Body Knurled Blind Rivet Nuts
