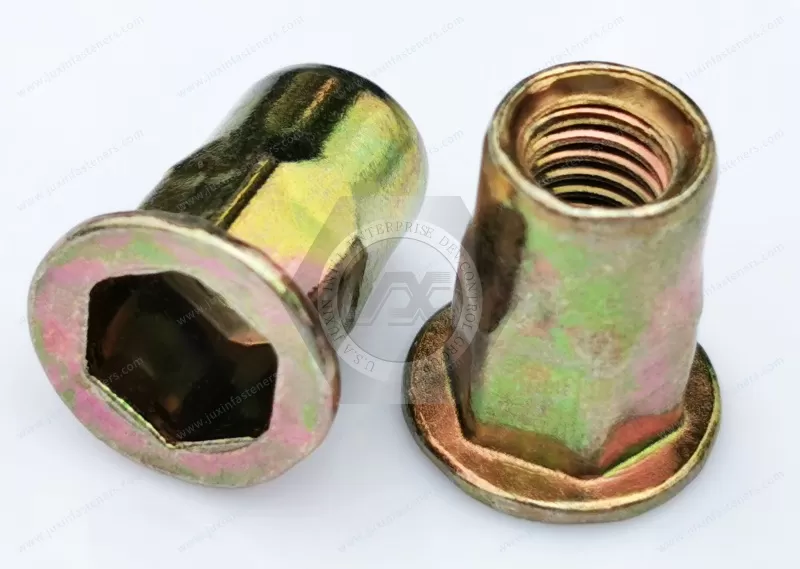

Flat Head Open end Half hexagon inside and outside body blind rivet nuts --Open end

Name: Flat Head Open Part Hexagonal Body Blind Rivet Nuts—Open End

Size: M3、M4、M5、M6、M8、M10

Material: Steel

Surface treatment: Color Zinc

Grip Range: 0.5-4.0mm

Rivet Nut Flange Head Half Hex Open End fasteners are designed to fit into a hexagon hole, preventing the blind threaded rivet nuts from turning after installation.

Rivet nuts are internally threaded inserts used in applications where the material thickness may be too small to tap a conventional thread. Rivet nuts create a solid thread to help with high-strength fastening from bolts and other threaded items.

Suitable for load-bearing applications, the flange head reinforces the hole and resists push-out forces.

Flange Head Half Hex Open End Rivet Nuts are manufactured from standard zinc-plated steel, A2 stainless steel, and A4 stainless steel.

Available at Juxin Fasteners in sizes M3 to M12 as standard.

Non-standard sizes and materials are available to order as specials, including small-volume manufacture, modifications, and bespoke parts made to drawings. Minimum order quantities apply.
