Steel

Countersunk Head Open end Round Body Plain Blind Rivet Nuts—Open End

Name: Countersunk Head Open Round Body Plain Blind Rivet Nuts—Open End

Size: M3、M4、M5、M6、M8、M10

Material: Steel

Surface treatment: Color Zinc

Grip Range: 0.5-5.0mm

Pros and Cons of Countersunk Rivet Nuts.

Regular rivet nuts, also known as flat-head rivet nuts, have a flat head that sits above the material's surface. This makes installing them more accessible, as they do not require a countersink hole. Regular rivet nuts also tend to be more resistant to PUSH THROUGH than countersunk rivet nuts, as the flat head provides more grip on the top side of the material. However, the protruding head may not be desirable for applications with a smooth, flush finish (i.e., aerodynamics). It ultimately depends on the specific needs of your project.

Help to Choose Between Countersunk Rivet Nuts and Regular Rivet Nuts. When you are unsure if a countersunk rivet nut is the appropriate fastener for your specific application, contact Juxin Fasteners to speak to one of their knowledgeable rivet nut experts. They will review all your application details and help you choose if a countersunk rivet nut or nutsert will be ideal for your application.

Countersunk Metric Rivet Application Notes:

The type of sheet material being used can affect the grip range of these revenues. It is recommended that a few test installations be conducted to determine the appropriate grip range for your specific application.

The countersunk head European-style rivnut is installed using hand tools that can be pneumatic, hydraulic, or manual. The installation process is simple, easily controlled, and less labor-intensive than other processes associated with nuts and bolts. When properly inserted, the nutsert head will be flush with the surrounding sheet material.

The closed-end version of these revenues will effectively seal the back end of the nut and provide a barrier against external contaminants.

These nutserts are easy to use and highly versatile. They will effectively reduce or eliminate the use of nuts and bolts within your application and could significantly reduce assembly times and labor costs. With over 21 years of industry experience, Juxin Fasteners will be able to provide you with expert consultation to ensure that you choose the industrial fastener that is best suited to your specific requirements.


Share:

Product Specification

Smooth Body, Countersink Rivet Nut

The countersunk head European-style RV nut is an ideal choice for flush installation applications. It is well suited for use in a variety of sheet materials and requires no special tooling for installation. Juxin Fasteners offers this industrial fastener in various materials and thread sizes.

Typical Properties of European Style, Countersunk Rivnuts:

Material: Your choice of:

Steel (finished in Zinc Plate-Yellow Dichromatic DIN 50961 Fe/Zn 8, C)

Aluminum (plain finish)

304 Stainless Steel (plain finish)

Note: I have special finishes or materials available if you'd like.

Hardware compatibility: Compatible with grade 2, grade 5, class 8.8, and class 9.8.

Available styles: Closed-end versions are available in M4, M5, M6, and M8.

Available thread sizes and diameters

Thread-Metric Diameter (mm)

M3 x 0.5 5.0

M4 x 0.7 6.0

M5 x 0.8 7.0

M6 x 1.0 9.0

M8 x 1.25 11.0

M10 x 1.5 12.4

M12 x 1.75 16.0

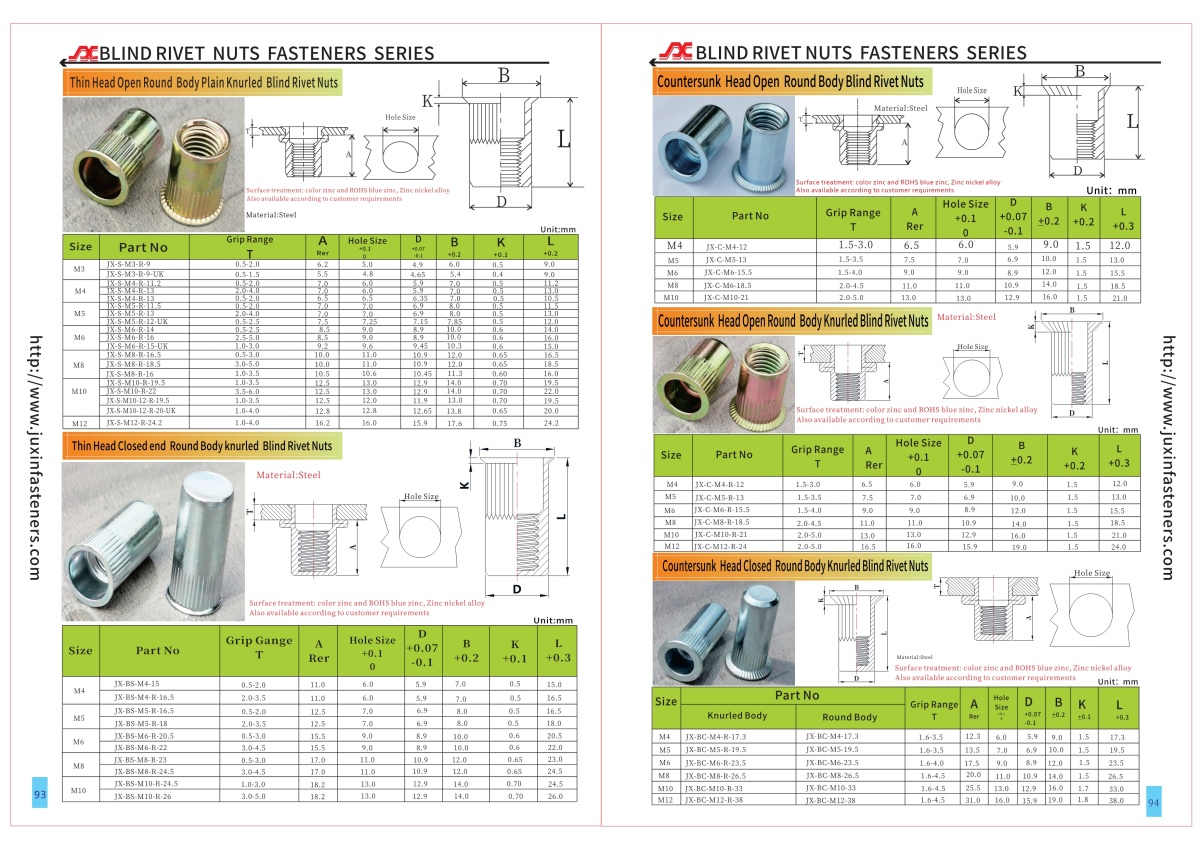

Size Can also be According to Customer's requirement and please check detailed specification sheet PDF, CAD, See more product details, PDF 93-94 Page

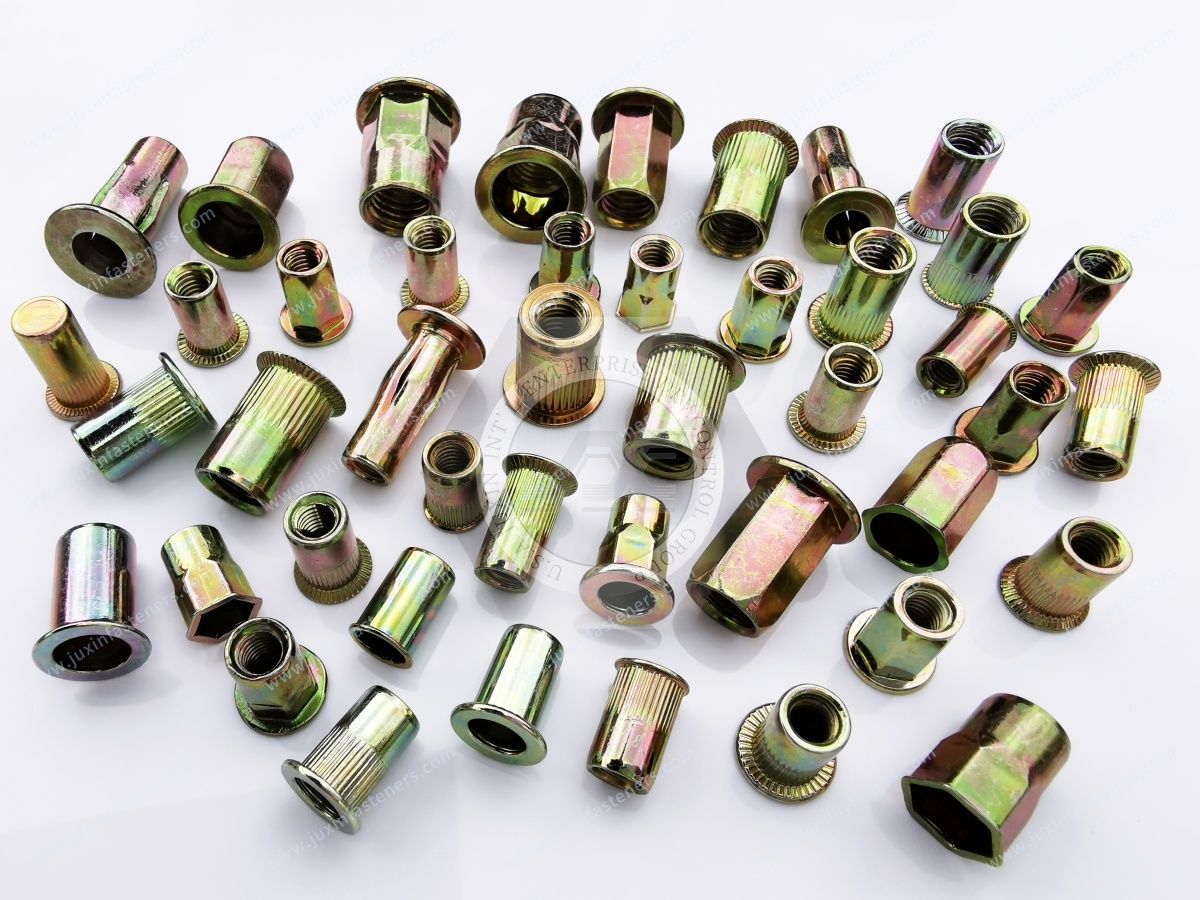

Product Pictures

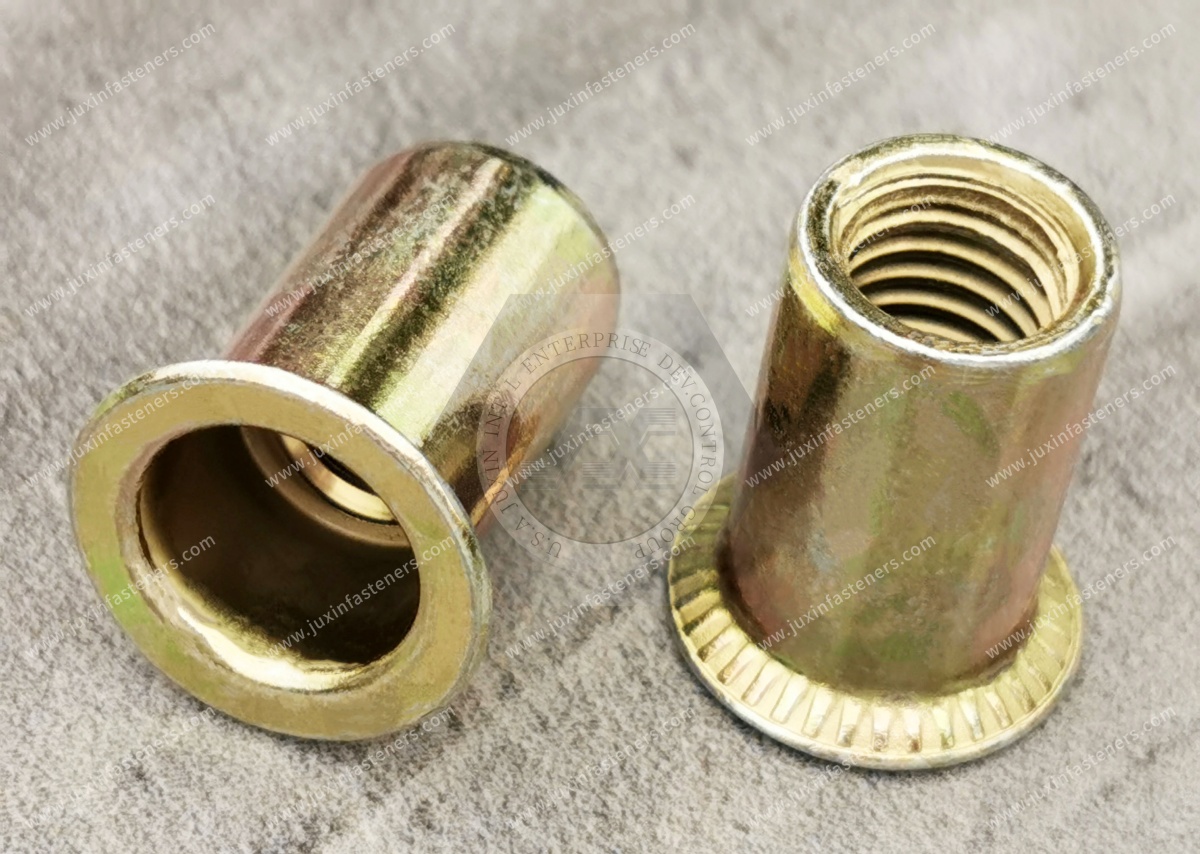

Countersunk Head Open end Round Body Plain Blind Rivet Nuts—Open End

Countersunk Head Open end Round Body Plain Blind Rivet Nuts—Open End


Countersunk Head Open end Round Body Plain Blind Rivet Nuts—Open End
