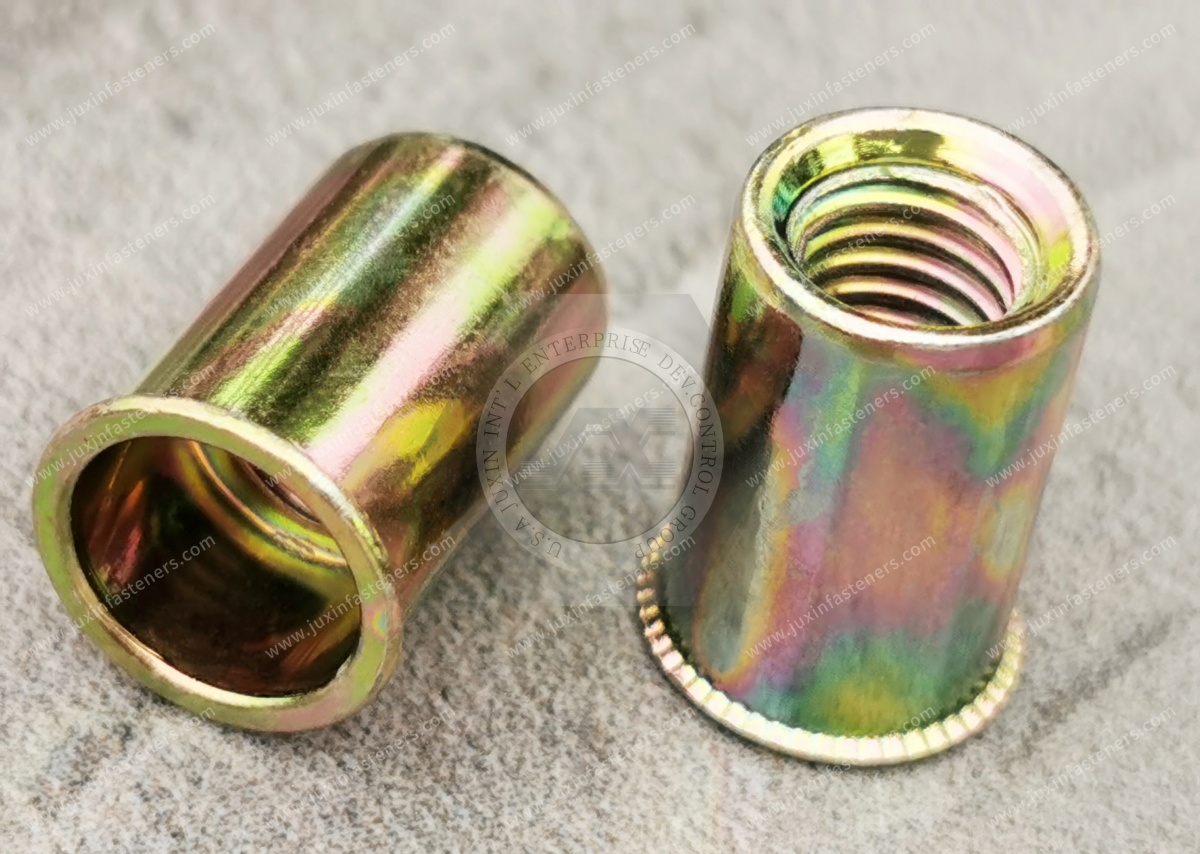

Name: Thin Head Open Round Body Plain Blind Rivet Nuts—Open End
Size: M3、M4、M5、M6、M8、M10
Material: Steel
Surface treatment: Color Zinc
Grip Range: 0.5-5.0mm
Rivet nuts allow for increased thread strength and reusability of sheet metal panel materials fasteners;
Rivet nuts can be used from a single side of the connector to achieve excellent thin-wall riveting, sealing riveting, single-sided riveting, and other roles;
Blind rivet nut to make up for a variety of shortcomings of the traditional welding nut, such as thin plate and other places that are not easy to weld, welding nut is not smooth, thin tube welding easy to melt, Use blind rivet nut setting tool install.
A blind rivet nut is suitable for not easy pressure riveting and riveting places to use, such as nuts need to be installed outside and inside the space is narrow, and on the strength of the requirements, pressure riveting and riveting are not feasible working conditions.
Product Specification

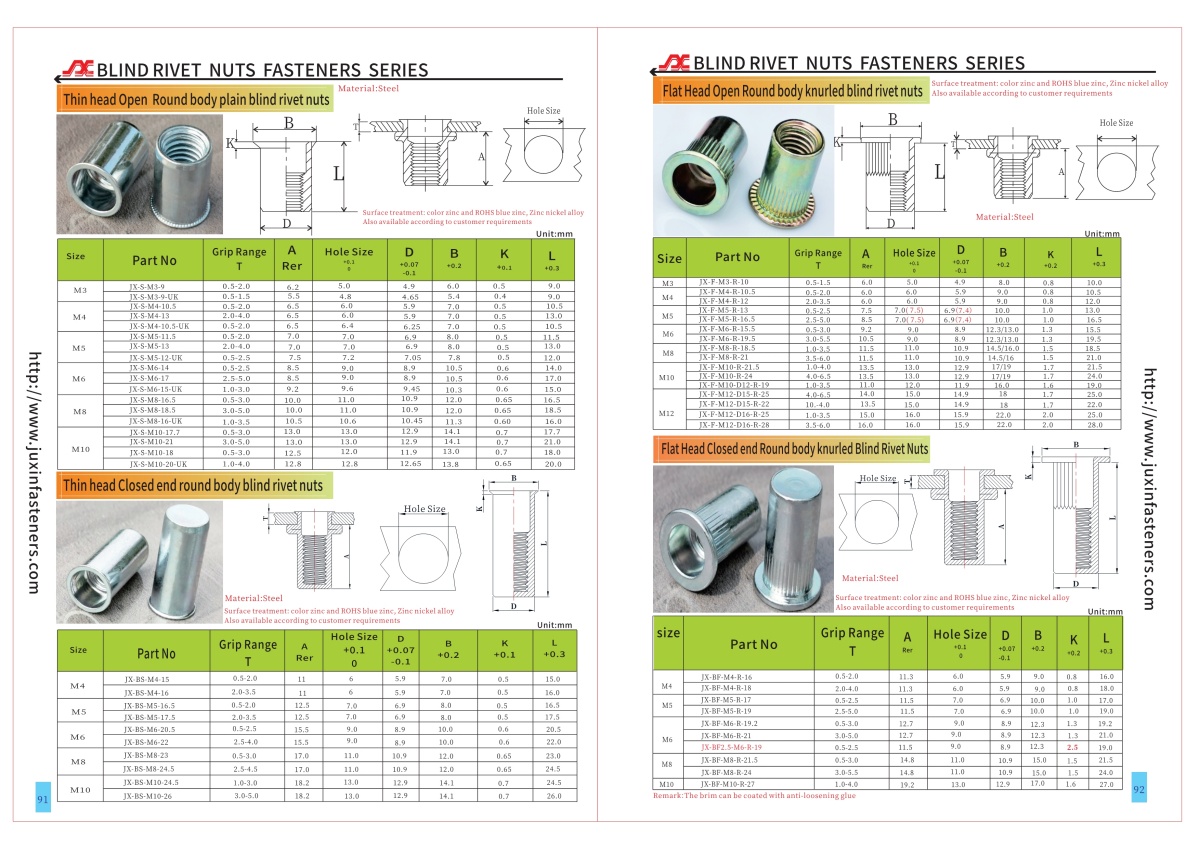

Size Can also be According to Customer's requirement and please check detailed specification sheet PDF, CAD, See more product details, PDF 91-92 Page
Juxin blind rivet nuts are a quick, reliable, low-cost way to insert high-quality load-bearing threads into weak or thin-gauge materials. They provide load-bearing threads in sheet materials as thin as 0.50mm (0.02") and have one-sided, blind insert capabilities.
Available in different head forms, including large flange, low profile, and countersunk; and various platings, including steel, stainless steel, and aluminum alloy; Juxin fasteners blind rivet nuts can be installed in pre-coated or post-painted applications without damaging the surface.
Popular in automotive, electronic, general fabrication, and appliance applications, Juxin blind rivet nuts is designed for ease of use. It can be effortlessly used with hand tools, pneumatic tools, and fully automated machines, making it a user-friendly solution for a wide range of assembly methods.
Fast Facts:
It can be used in fragile sheet materials from 0.50mm (0.02").
Blind hole, one-sided installation capability.
Provides a female thread-in application.
It can be installed in pre-coated or post-painted applications without damaging the surface.
Various platings are available to increase corrosion resistance.
The low-profile version allows the near-flush fit to the application.
The large-flange version provides a greater load-bearing surface. Reinforces hole to prevent push-out.
The large-flange version can be used as a spacer and supplied with an underhead seal.
Clamps two or more sheets of material together within the grip range.
The closed end prevents the ingress of dirt and fluids into thread and electrical circuits.
Assembly applications include automotive, electrical engineering, electronic components, sheet metal, domestic appliances, and general light fabrication.
Product Packaging
The inner packaging is a plastic bag, and the outer packaging is a carton. Then the tray. Carton size: 29*19*19.5CM and 23.5*17.5*8, CM and pallet size: 215*100*90CM, or as your request

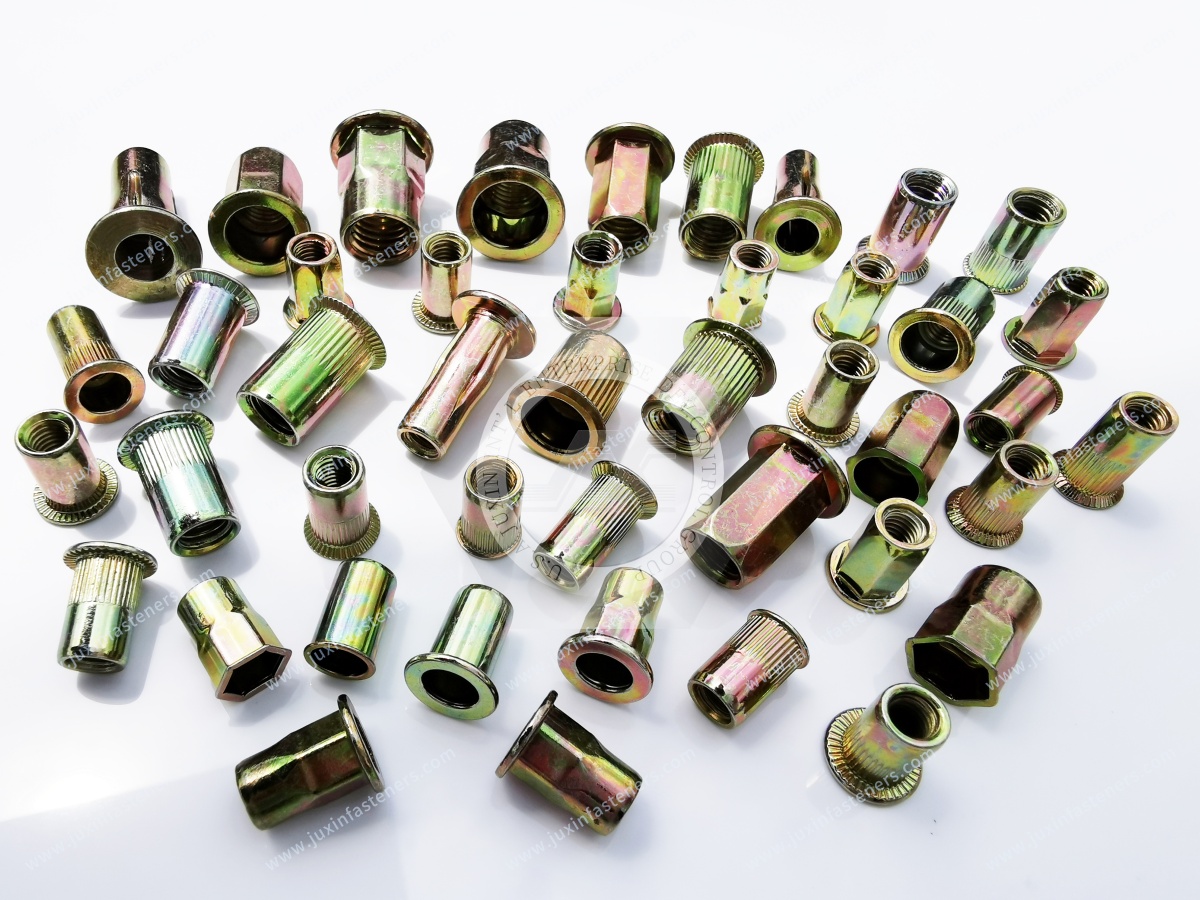

Product Pictures
