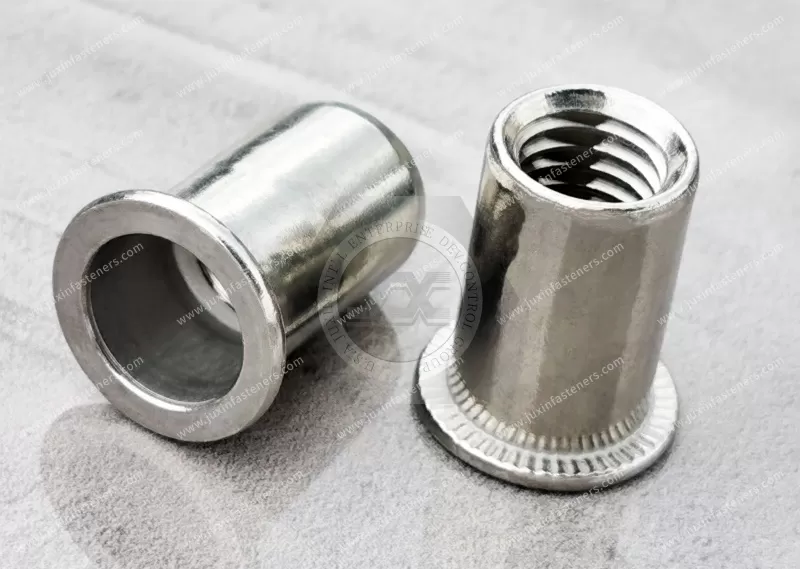

Flat Head Open end Round Body Plain Blind Rivet Nuts—Open End

Name: Flat Head Open end Round Body Plain Blind Rivet Nuts—Open End

Size: M3、M4、M5、M6、M8、M10

Material: Stainless Steel

Grip Range: 0.5-6.0mm

Stainless steel rivet nut flanged Plain Body Open End is a form of internally threaded insert used in applications where the material thickness is too small to tap a conventional thread.

Using rivet nuts creates a vital thread in thin sheets of material for high-strength fastening from bolts and other threaded articles.

The flanged head of this style of rivet nut is used to reinforce the hole and increase resistance to pull-out, making it ideal for load-bearing applications.

The open-end style allows the stud or male threaded component to thread through the rivet nut without limiting the length or protrusion of the male threaded part.

Flanged Plain Body End Rivet Nuts are installed using a unique tool with a threaded stud that engages with the internal threads of the rivet nut and pulls upwards. This deforms the unthreaded section of the rivet nut to expand under the reverse side of the material, providing a high-strength permanent thread in thin sheet material.

They are manufactured from Zinc-Plated Steel, A2 Stainless Steel, and A4 Stainless Steel as standard. Other materials, such as aluminum, are available to order.

Available at Juxin fasteners in thread sizes M3 to M12 as standard.

Non-standard sizes and materials are available to order as specials, including small-volume manufacture, modifications, and bespoke parts made to drawings. Minimum order quantities apply.

Rivnuts are a quick, reliable, low-cost way to insert high-quality load-bearing threads into weak or thin-gauge materials. Rivnuts provide load-bearing threads in sheet materials as thin as 0.50mm and have one-sided, blind insert capabilities. Rivnuts are available in different head forms, including large flange and low profile, and various platings, including steel, stainless steel, and aluminum alloy. They can be installed in pre-coated or post-painted applications without damaging the surface.

Euro Series – Features

It can be used in fragile sheet materials. Blind hole, one-sided installation capability.Clamps two or more sheets of material together within the grip range.

The low-profile version allows the near-flush fit to the application.

The large-flange version provides a more excellent load-bearing surface and reinforces holes to prevent push-out for hard metric hole sizes.

Available in Pack Sizes of  500, 1000
