Unthreaded Pins, Flush – Types JX-TPS

Size Can also be According to the Customer's requirement and please check the detailed specification sheet details PDF, CAD, 55-56Page See more product details.

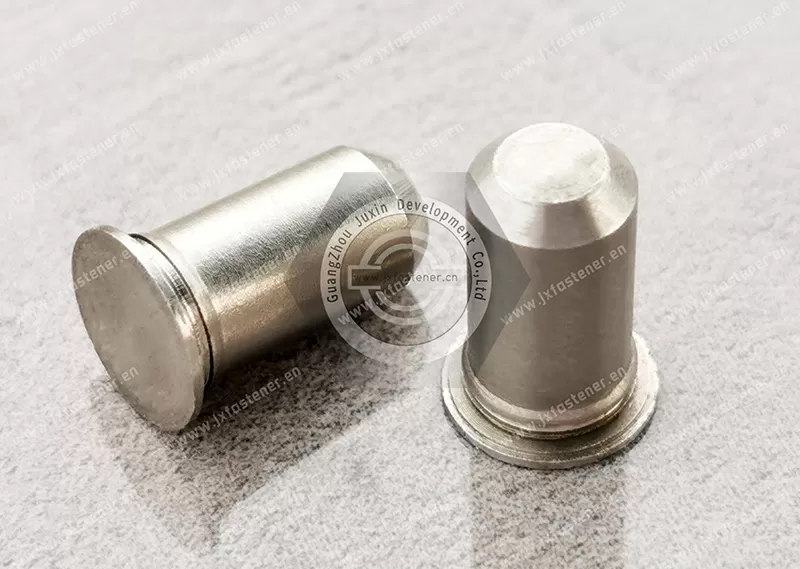

Self-clinching pilot pins satisfy a wide range of positioning ,pivot ,and alignment applications ,The chamfered end makes mating hole location easy.Self-clinching studs are installed by placing them in properly sized holes in the sheets and squeezing them into place with any standard press. The squeezing action embeds the head of the stud into the sheet. The metal displaced by the head flows smoothly and evenly around the ribs and into the annular groove – creating a flush head assembly and securely locking the stud into the sheet with high torque-out and pushout resistances.JX-TPS Pilot Pins satisfy a wide range of positioning, pivot, and alignment applications. The chamfered end makes mating hole location easy

1. Flush-head for sheet thickness of .040” and greater.

2. Satisfies a wide range of positioning, pivot, and alignment applications.

3. Chamfered end makes mating hole location easy.

4. Type JX-TPS is recommended for use in steel or aluminum sheets HRB (Rockwell “B” Scale) 70 or less and HB (Hardness Brinell) 125 or less.

E. Packing: Inner is Poly foam, out is carton. Then pallet. Carton size: 29*19*19.5CM and 23.5*17.5*8, CM and pallet size is: 215*100*90CM, or as your requirement.
