Self-clinching Fasteners for Sheet Metal

Standoffs, Thru-Hole, Threaded and Unthreaded – Types JX-SO, JX-SOA, JX-SOS

Material:

Stainless Steel: SUS302, SUS303, SUS316, SUS410, SUS420, SUS430, etc.

Share:

Product Specification

Size Can also be According to the Customer's requirement and please check the detailed specification sheet details PDF, CAD, 29-30Page See more product details.


These self-clinching standoffs have thru-hole threads, Thread sizes #4 to #10 and M3 to M5. Also available unthread on special order. These standoffs, which use the proven self-clinching design, install with a squeeze in properly sized round holes - and become permanently mounted on the thin sheet. Thru-hole threaded standoffs are installed with their heads flush with one surface of the mounting sheet.

Product Packaging

E. Packing: Inner is Poly foam, out is carton. Then pallet. Carton size: 29*19*19.5CM and 23.5*17.5*8, CM and pallet size is: 215*100*90CM, or as your requirement.

Product Pictures

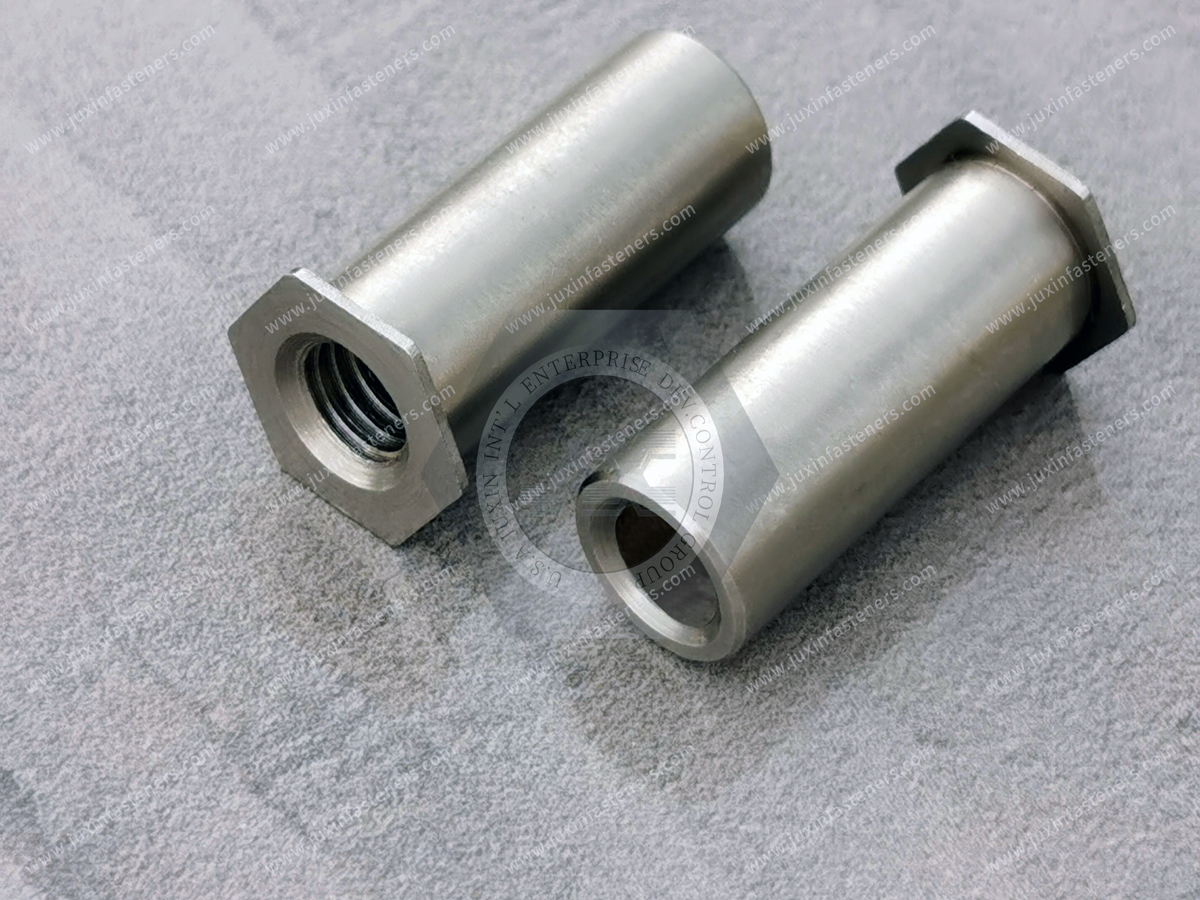

Standoffs, Thru-Hole, Threaded and Unthreaded – Types JX-SO, JX-SOA, JX-SOS


Standoffs, Thru-Hole, Threaded and Unthreaded – Types JX-SO, JX-SOA, JX-SOS
