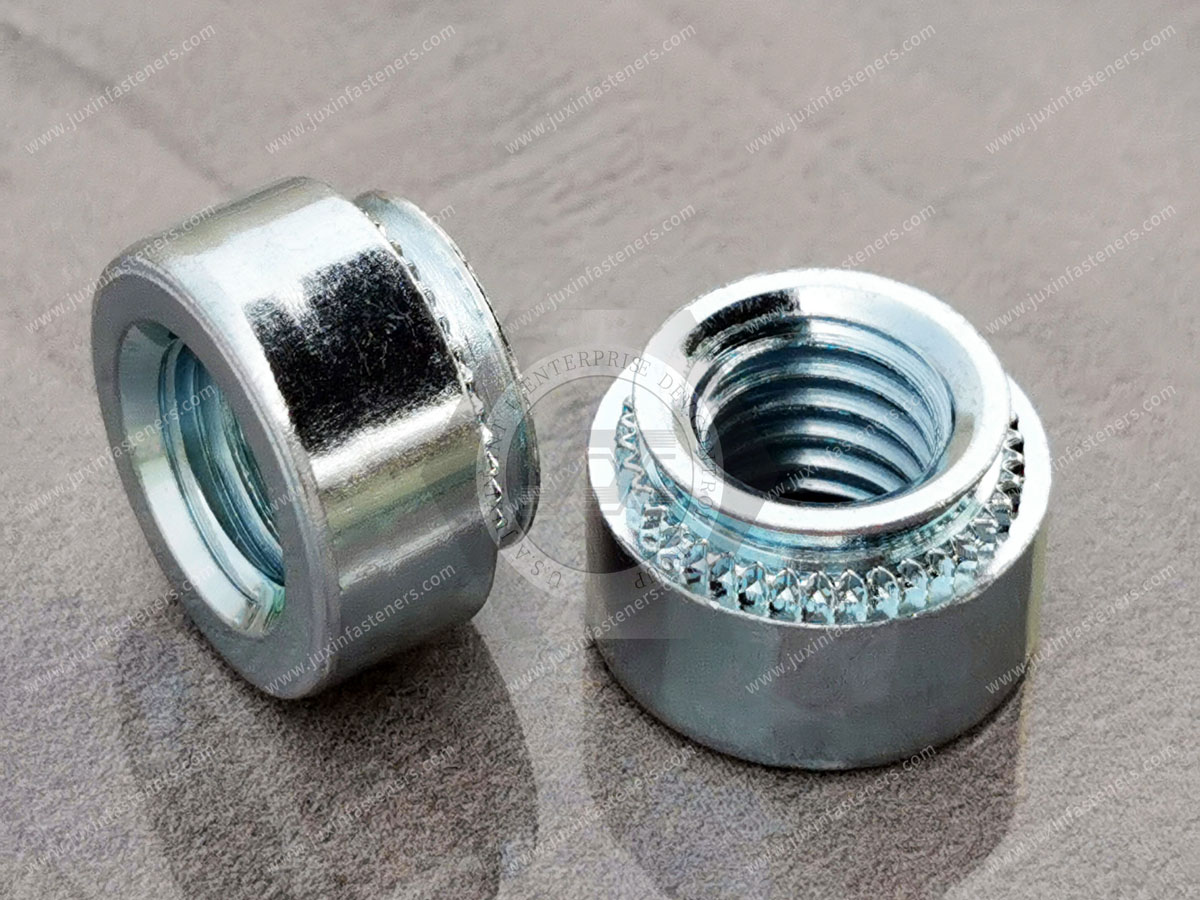

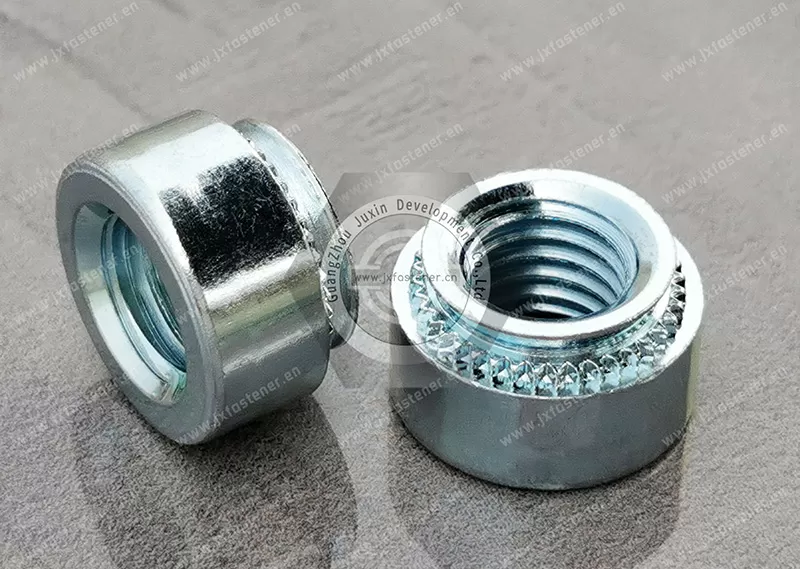

Self-Clinching Nuts - Types JX-S, JX-CLS, JX-CLA, JX-SP

Size can also be according to the customer's requirement. Please check the detailed specification sheet details: PDF, CAD, 25-26, 27- 28. See more product details.

Internal solid threads in sheets as thin as .030"/0.8mm. Thread sizes #2 to 1/2" and M2 to M10.Self-clinching nuts are installed by placing them in properly sized holes in sheets and applying a parallel squeezing force to the head of the nut. The sheet metal surrounding the head cold flows into an undercut, making the fastener an integral part of the sheet. A serrated clinching ring prevents the fastener from rotating after installation.

Provide load-bearing threads in thin sheets with high pushout and torque-out resistance.

1. Type XJ-CLA is recommended for use in steel or aluminum sheets. HRB (Rockwell "B" scale) is 50 or less, and HB (Hardness Brinell) is 82 or less.

2. Types CLS is recommended for use in steel or aluminum sheets HRB (Rockwell "B" scale) 70 or less and HB (Hardness Brinell) 125 or less.

3. Types of JX-S are recommended for use in steel or aluminum sheets. HRB (Rockwell "B" scale) is 80 or less, and HB (Hardness Brinell) is 150 or less.

4. Type JX-SP is recommended for use in stainless steel sheets HRB (Rockwell "B" scale) 90 or less and HB (Hardness Brinell) 185 or less

E. Packing: Inner is Poly foam, out is carton. Then pallet. Carton size: 29*19*19.5CM and 23.5*17.5*8, CM and pallet size is: 215*100*90CM, or as your requirement.
