Screw Head, Spring-loaded - Types JX-PFC2 and JX-PFS2

Material:

Stainless Steel: SUS302, SUS303, SUS316, SUS410, SUS420, SUS430, etc.

Inquire Now Next Product Download

Product Specification

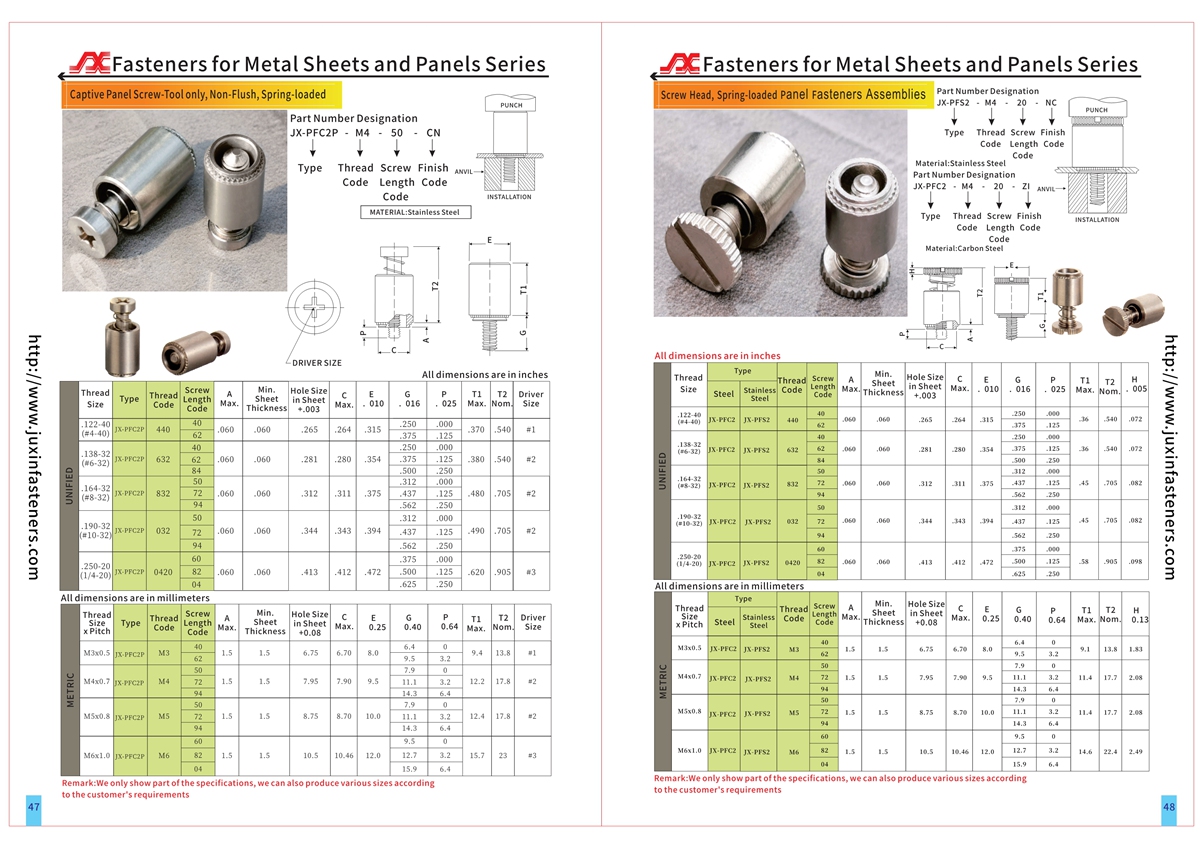

Size Can also be According to the Customer's requirement and please check the detailed specification sheet details PDF, CAD, 47-48Page See more product details.

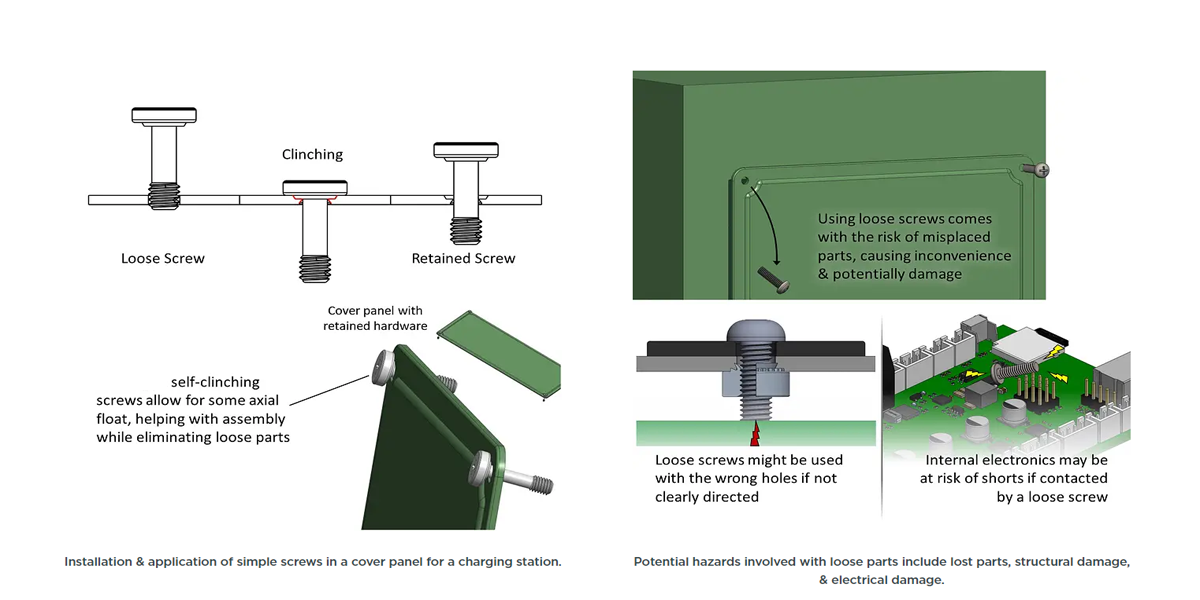

Completely pre-assembled spring-loaded panel fasteners that meet UL 508" operator access area" requirements.Thread sizes #4 to 1/4" and M3 to M6.Available in steel or stainless steel.

Meets “operator access area” requirements similar to UL.

Tool or finger operation.

Most sizes are available in three screw lengths.

Product Packaging

E. Packing: Inner is Poly foam, out is carton. Then pallet. Carton size: 29*19*19.5CM and 23.5*17.5*8, CM and pallet size is: 215*100*90CM, or as your requirement.

Product Pictures

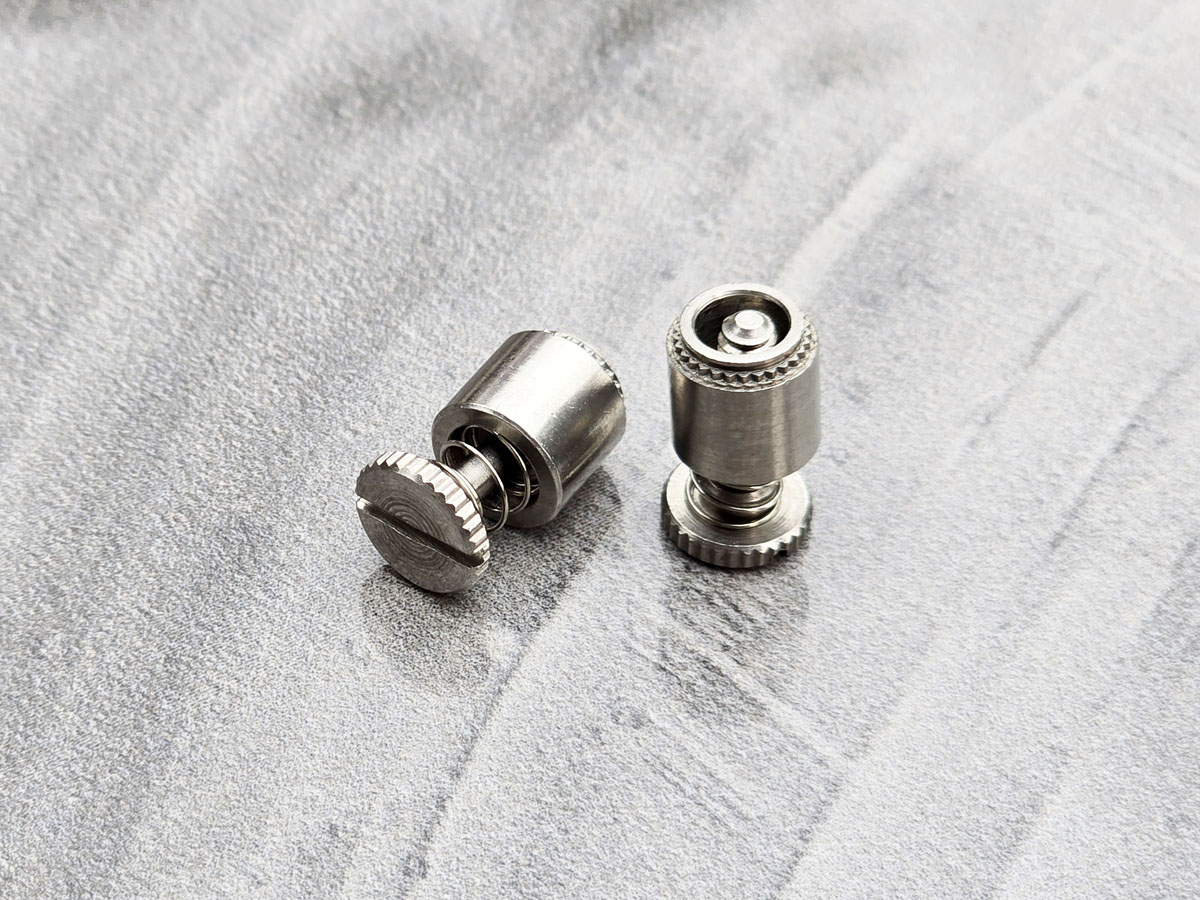

Screw Head, Spring-loaded - Types JX-PFC2 and JX-PFS2
