Self-clinching Fasteners for Sheet Metal

Non-locking Threads Floating Self-Clinching Fasteners JX-AC

Material:

Stainless Steel: SUS302, SUS303, SUS316, SUS410, SUS420, SUS430, etc.

Locking and Non-locking Threads These fasteners provide load-bearing threads in thin sheets and permit up to 0.76mm adjustment for mating hole misalignment.

The self-clinching feature offers fast and simple assembly. The fasteners are squeezed into prepared holes using any standard press. The sheet remains flush on one side, and the fastener is permanently locked in place.

Extra strength and support in the assembly are obtained by the threads of the floating nut extending fully into the retainer shank. A self-locking version of the fastener is also offered. Thread locking torque performance is equivalent to applicable specifications.

Non-locking Type A4 and self-locking Type LA4 fasteners provide load-bearing threads in stainless steel sheets as thin as 0.97mm with hardness up to HRB 88 on the Rockwell “B” scale.

Many Type AS and AC self-clinching floating fasteners correspond to sizes in US  specifications. Check our website for a complete Specification.www.juxinfastenrs.com


Share:

Product Specification

Size Can also be According to the Customer's requirement and please check the detailed specification sheet details PDF, CAD, 37-38Page See more product details.


Floating action compensates for mating hole misalignment. Thread sizes #4 to 1/4" and M3 to M6.These fasteners provide load-bearing threads in thin sheets and permit up to .030” adjustment for mating hole misalignment. The self-clinching feature offers fast and simple assembly. The fasteners are squeezed into prepared holes using any standard press. The sheet remains flush on one side, and the fastener is permanently locked in place. Extra strength and support in the assembly are obtained by the threads of the floating nut extending fully into the retainer shank. A self-locking version of the fastener is also offered. Thread locking torque performance is equivalent to applicable specifications. Non-locking Type and self-locking Type fasteners provide load-bearing threads in stainless steel sheets as thin as. Juxin Fastener’s self-clinching floating nuts provide an excellent design solution for applications where a mating misalignment is a possibility. The series is comprised of the JX-AS, JX-AC, JX-LAS, and JX-LAC types of floating and floating/ locking self-clinching fasteners. Floating nuts allow for misalignment of up to .030”/0.76mm in the assembly. If the design is a large electronic cabinet with a large door on the front, it is beneficial to use floating clinch nuts to allow for some minor misalignment of the holes in the cabinet and the door. Floating fasteners are made with an outer body with an inner nut that floats to compensate for the misalignment. This allows for a successful assembly of the mating components.

Product Packaging

E. Packing: Inner is Poly foam, out is carton. Then pallet. Carton size: 29*19*19.5CM and 23.5*17.5*8, CM and pallet size is: 215*100*90CM, or as your requirement.

Product Pictures

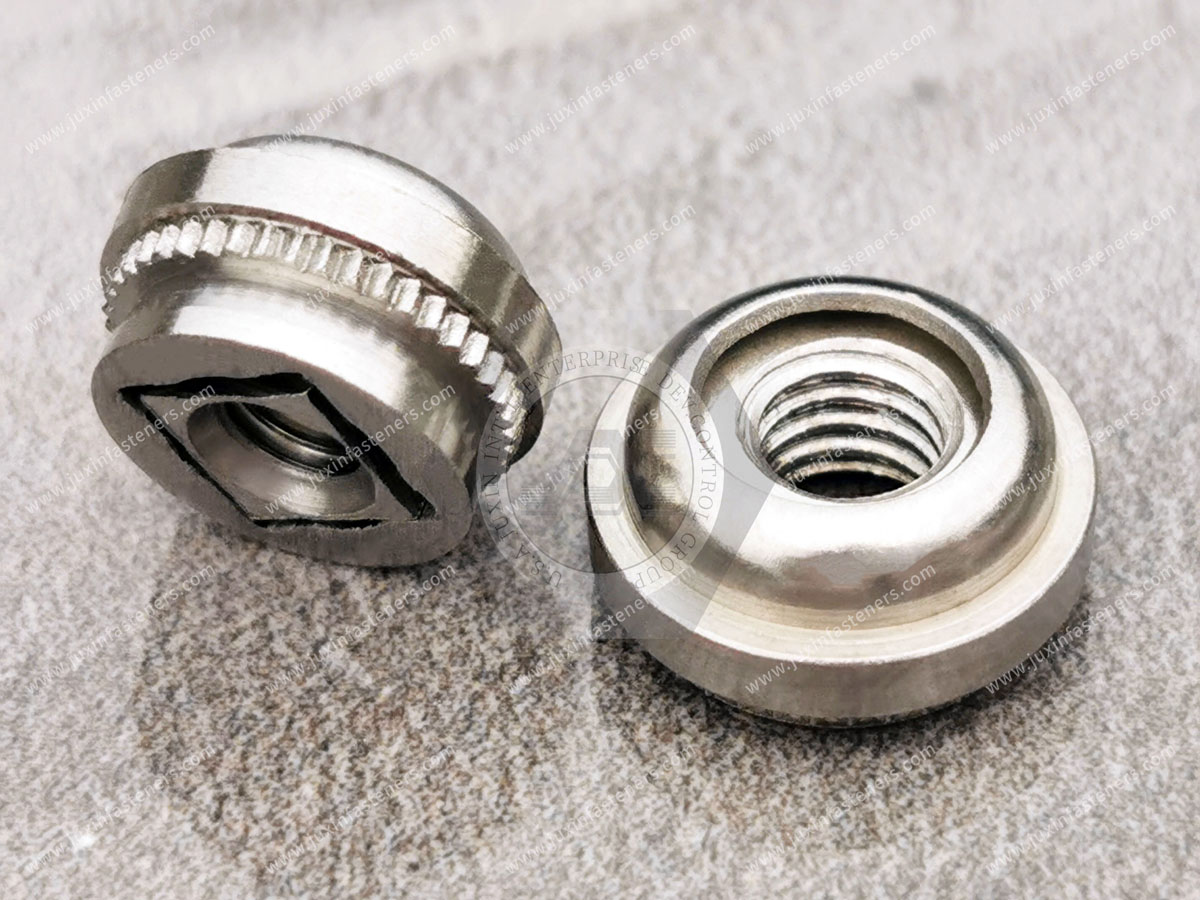

Non-locking Threads Floating Self-Clinching Fasteners JX-AC

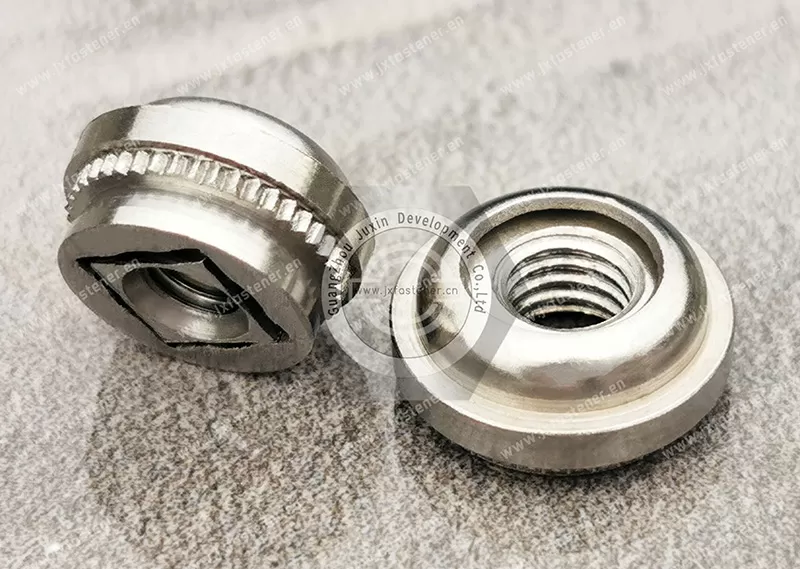

Non-locking Threads Floating Self-Clinching Fasteners JX-AC
