Locating Pin, Spring-loaded – Types PT-59-T10-CN

Material:

Steel: C45(K1045), C46(K1046), C20, etc.

Iron: 1213, 1214, 1215, etc.

Inquire Now Next Product Download

Product Specification

Size Can also be According to the Customer's requirement and please check the detailed specification sheet details PDF, CAD, 59-60Page See more product details.

The reverse side of the sheet is flush when the plunger is retracted.

The quick lockout feature holds the plunger in the retracted position.

For use in sheets of HRB 80 or less.

Available as Type JX-PT-59-T10-CN without lockout feature on special order.

Product Packaging

E. Packing: Inner is Poly foam, out is carton. Then pallet. Carton size: 29*19*19.5CM and 23.5*17.5*8, CM and pallet size is: 215*100*90CM, or as your requirement.

Product Pictures

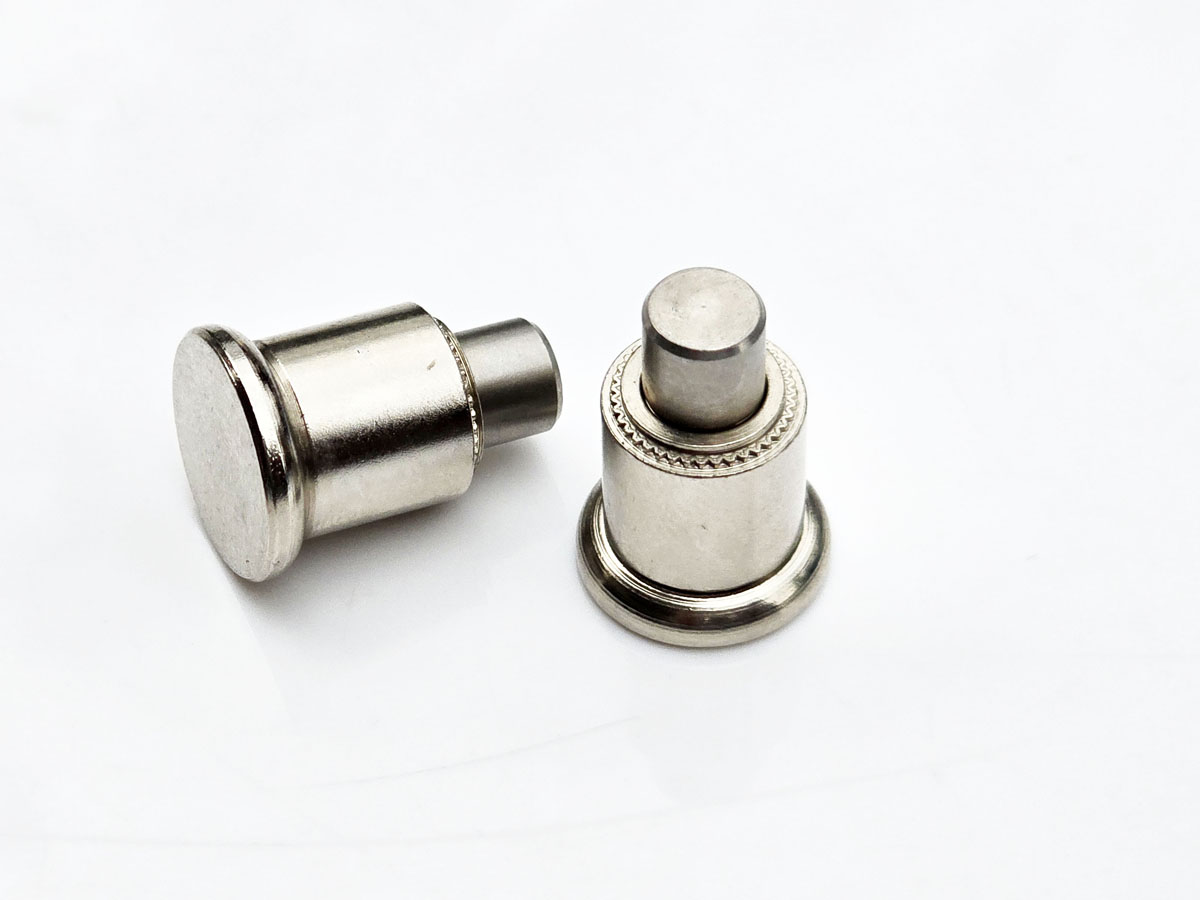

Locating Pin, Spring-loaded – Types PT-59-T10-CN
