Large Knob, Spring-Loaded – Types JX-PF13, JX-PF14

Material:

Stainless steel+steel+aluminum

Inquire Now Next Product Download

Product Specification

Size Can also be According to the Customer's requirement and please check the detailed specification sheet details PDF, CAD, 49-50Page See more product details.

These panel fasteners feature a universal slot/Phillips drive. Knurled cap for ease of use.Thread sizes #4 to 1/4 "and M3 to M6.Shoulder on retainer provides positive stop during installation.

Available in self-clinching, flaring, or floating mounting styles.

Available with knurled or un-knurled metal cap, black metal cap, or a custom color plastic cap.

Product Packaging

E. Packing: Inner is Poly foam, out is carton. Then pallet. Carton size: 29*19*19.5CM and 23.5*17.5*8, CM and pallet size is: 215*100*90CM, or as your requirement.

Product Pictures

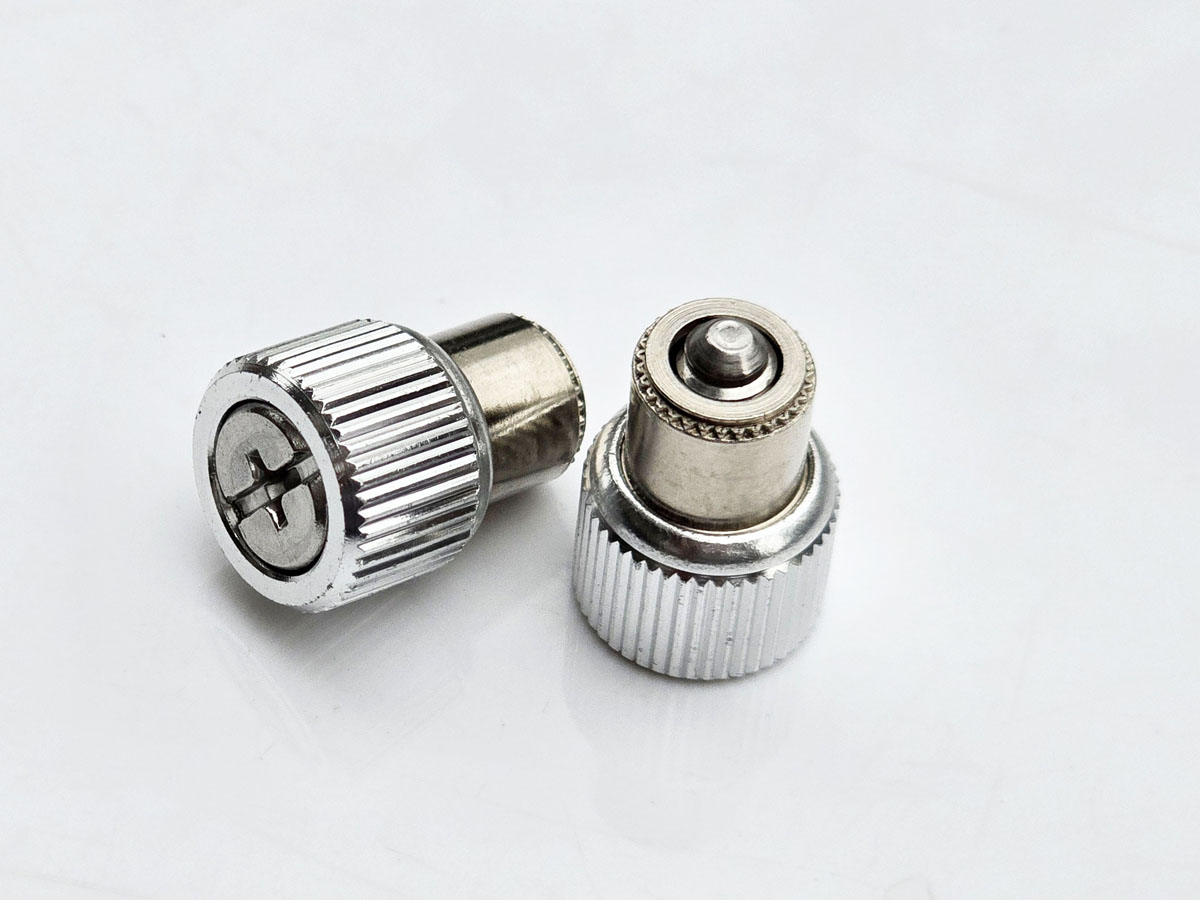

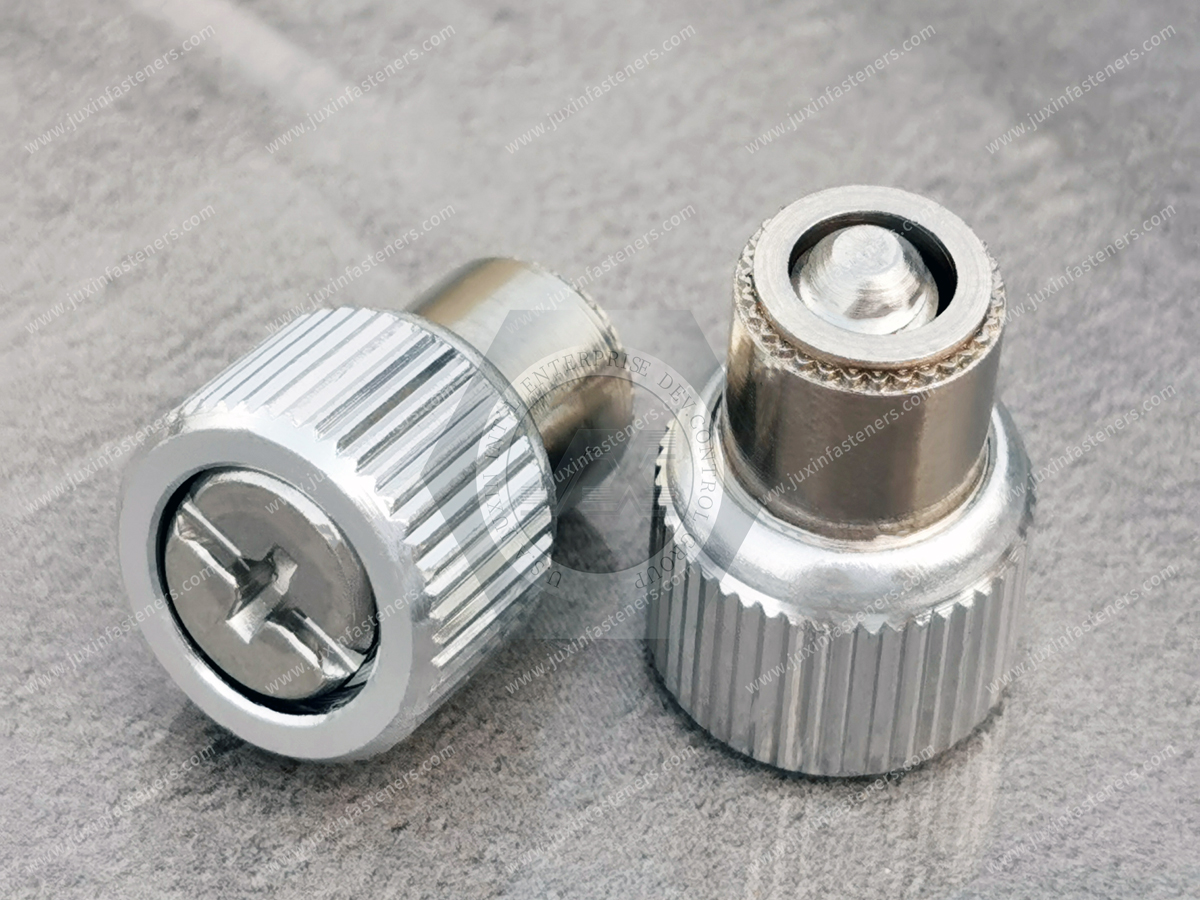

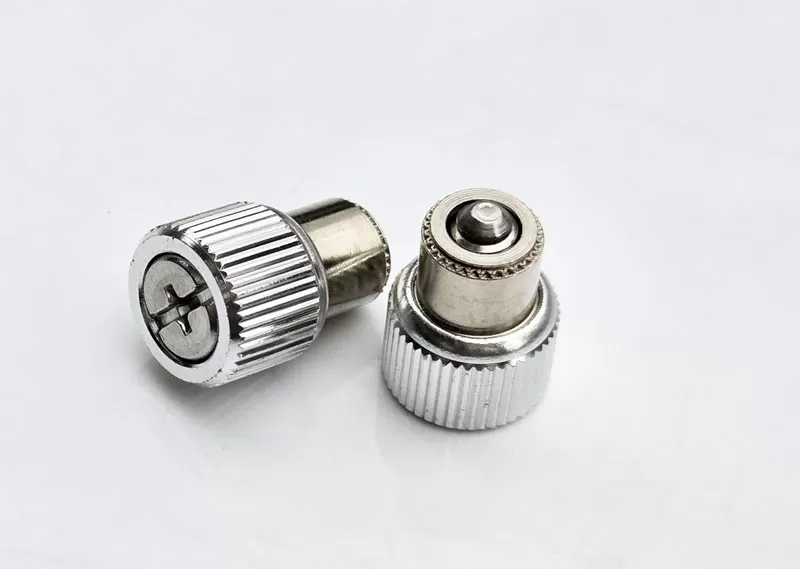

Large Knob, Spring-Loaded – Types JX-PF13, JX-PF14
