Large Knob, Spring-Loaded – Types JX-PF09

Material:

Stainless Steel: SUS302, SUS303, SUS316, SUS410, SUS420, SUS430, etc.

Inquire Now Next Product Download

Product Specification

Size Can also be According to the Customer's requirement and please check the detailed specification sheet details PDF, CAD, 53-54Page See more product details.

These panel fasteners feature a universal slot/Phillips drive. Knurled cap for ease of use.Thread sizes #4 to 1/4 "and M3 to M6.Appropriate for close centerline-to-edge applications.

Doesn’t require a high installation force.

Installs into any panel hardness.

Installs flush on the backside of the panel. Available with knurled or un-knurled metal cap, black metal cap, or a custom color plastic cap.

Product Packaging

E. Packing: Inner is Poly foam, out is carton. Then pallet. Carton size: 29*19*19.5CM and 23.5*17.5*8, CM and pallet size is: 215*100*90CM, or as your requirement.

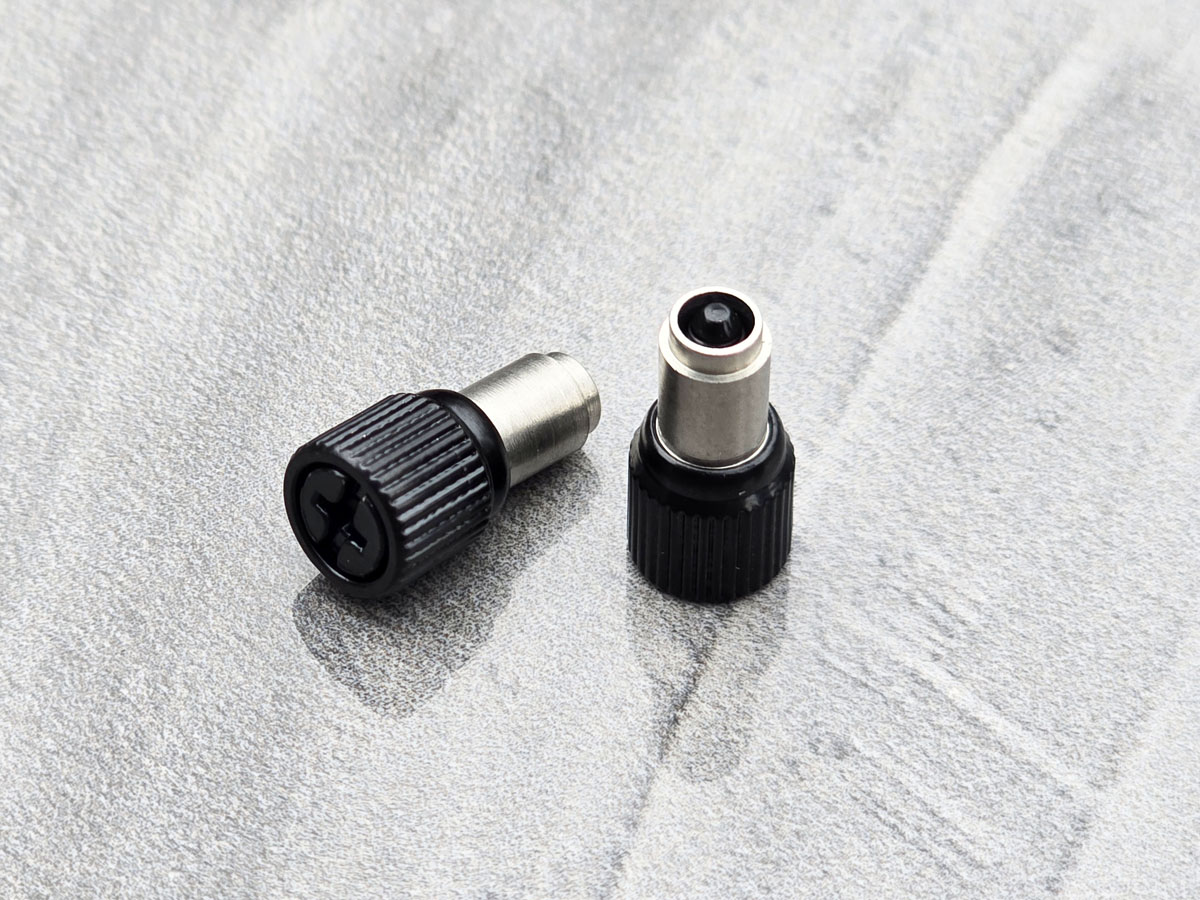

Product Pictures

Large Knob, Spring-Loaded – Types JX-PF09
