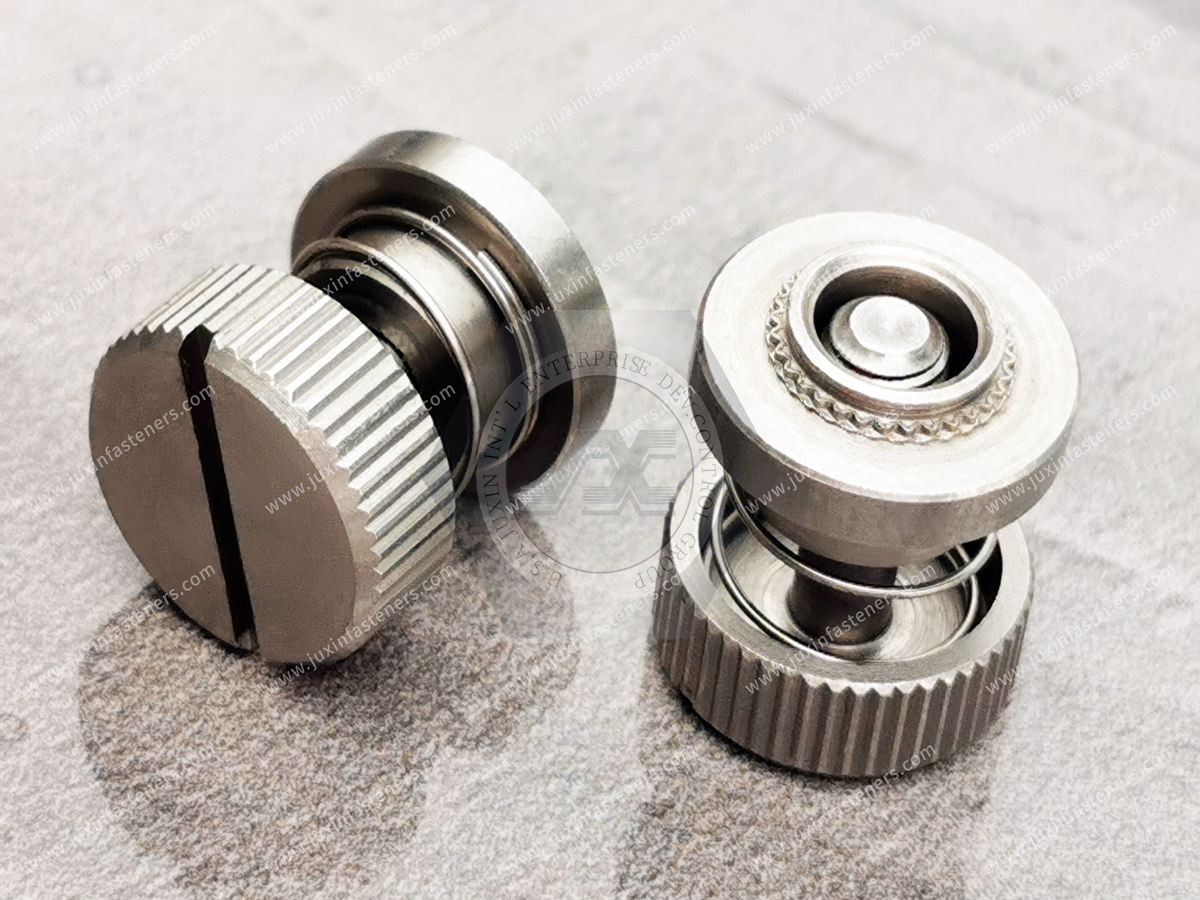

Knurled Head Low Profile Knob, Spring-loaded – Types JX-PF30, JX-PF31, PF32

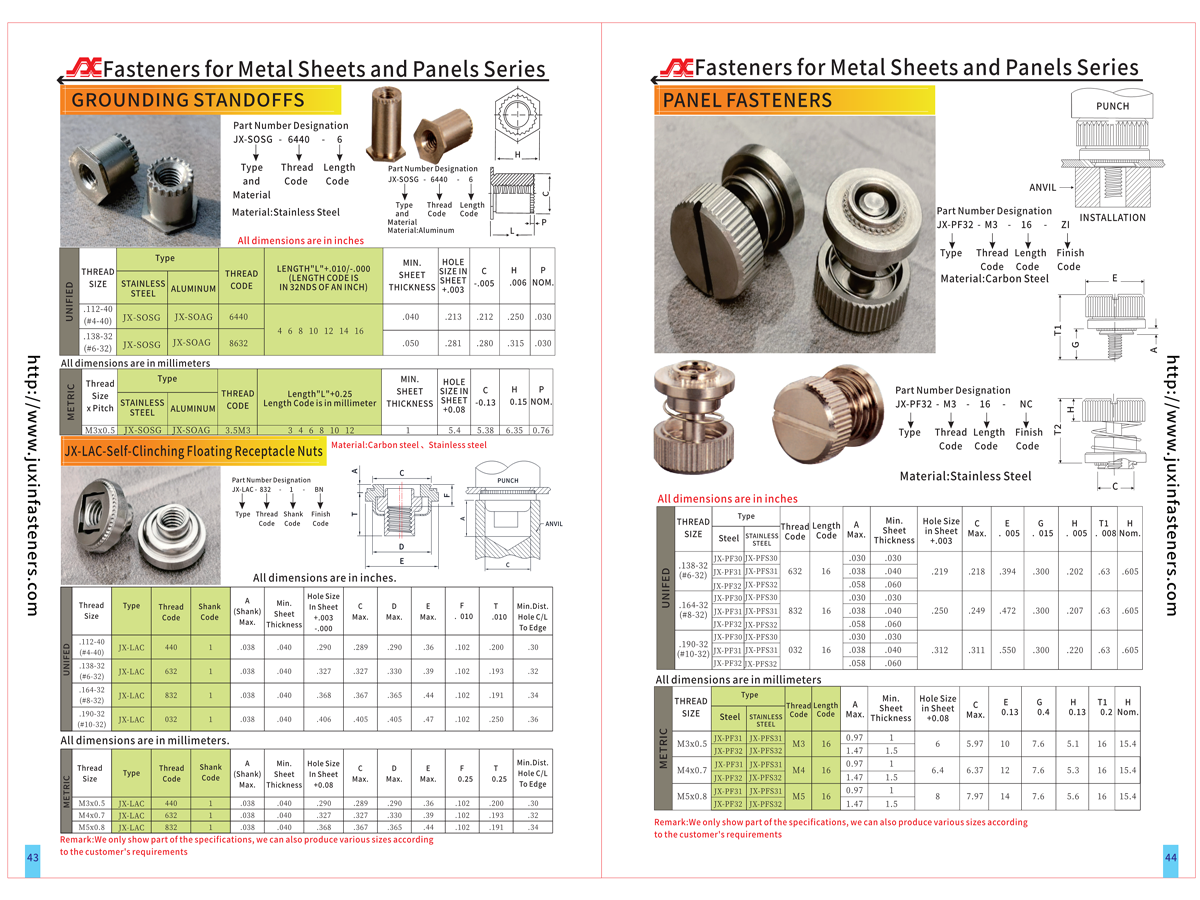

Size Can also be According to the Customer's requirement and please check the detailed specification sheet details PDF, CAD, 43-44Page See more product details.

These panel fasteners have a low-profile design with a large knurled head that can be tool or hand-actuated. Thread sizes #4 to 1/4" and M3 to M6.Self Clinching Low Profile Panel fasteners provide a solution where design engineers want a spring-loaded panel fastener assembly to be used in thin panels so that they are easily assembled, and removable in the assembly. The self-clinching panel fasteners are often used in access panels for electronic enclosures and equipment consoles. The low-profile panel fasteners have a slotted head with a deep skirt that allows tool or finger installation and removal. The low-profile panel fasteners are available in steel with a bright nickel finish over a copper flash base. The self-clinching panel fasteners offer a low cost of installation and provide a strong reusable thread in sheets as thin as .030” / .76 mm thick. For the self-clinching low profile spring-loaded panel fasteners to be installed properly, the fasteners must be sufficiently harder than the panels into which they will be installed. The panel fasteners can be installed into steel or aluminum panels with a maximum hardness of HRB 60. The low-profile design satisfies many functional and cosmetic requirements. Convenient, large, slotted head for tool or finger operation.

E. Packing: Inner is Poly foam, out is carton. Then pallet. Carton size: 29*19*19.5CM and 23.5*17.5*8, CM and pallet size is: 215*100*90CM, or as your requirement.
