Self-clinching Fasteners for Sheet Metal

Knurled Head Low Profile Knob, Spring-loaded – Types JX-PF50, JX-PF60

Material:

Stainless Steel: SUS302, SUS303, SUS316, SUS410, SUS420, SUS430, etc.

Share:

Product Specification

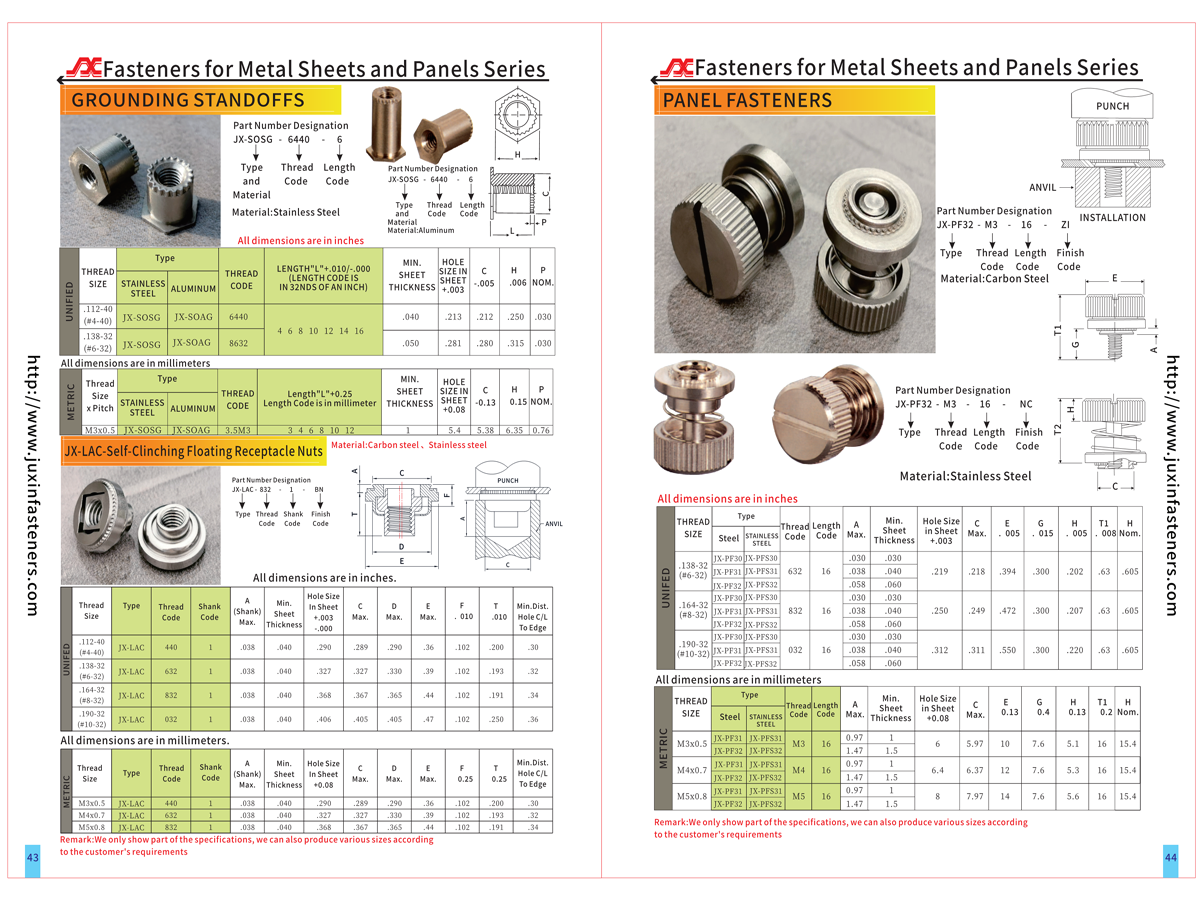

Size Can also be According to the Customer's requirement and please check the detailed specification sheet details PDF, CAD, 45-46Page See more product details.


These panel fasteners have a low-profile design with a large knurled head that can be tool or hand-actuated. Thread sizes #4 to 1/4" and M3 to M6.The low-profile design satisfies many functional and cosmetic requirements.


Type JX-PF50 with convenient large head and Phillips recess for tool or finger operation.


Available with six-lobe recess.

Product Packaging

E. Packing: Inner is Poly foam, out is carton. Then pallet. Carton size: 29*19*19.5CM and 23.5*17.5*8, CM and pallet size is: 215*100*90CM, or as your requirement.

Product Pictures

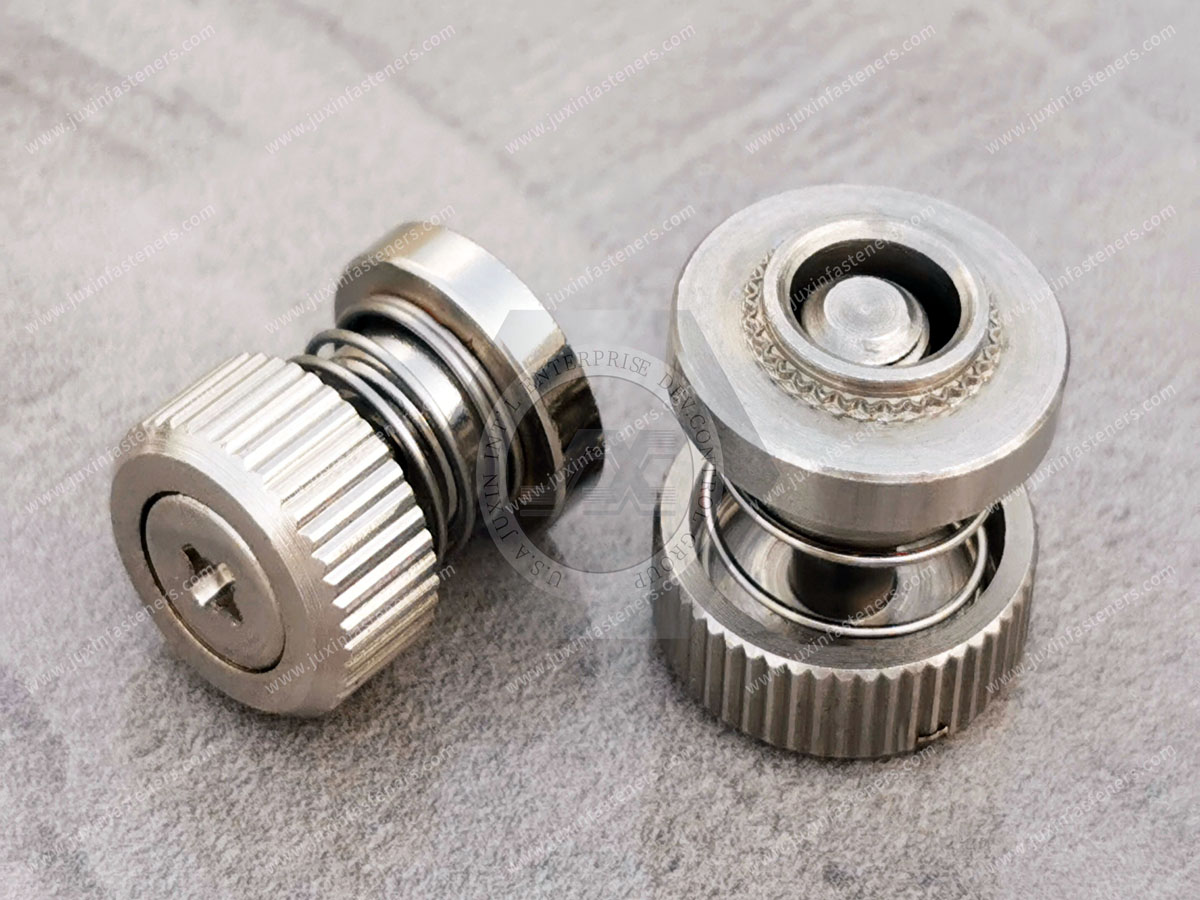

Knurled Head Low Profile Knob, Spring-loaded – Types  JX-PF50, JX-PF60

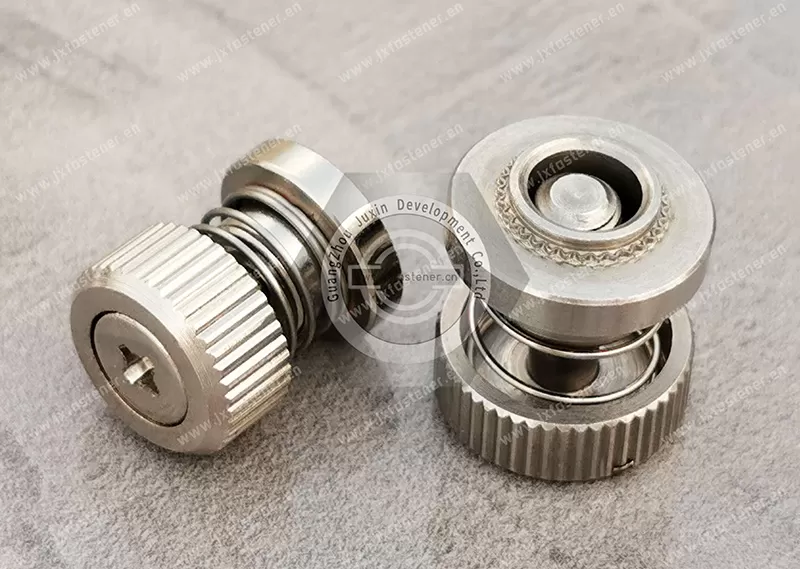

Knurled Head Low Profile Knob, Spring-loaded – Types  JX-PF50, JX-PF60

Knurled Head Low Profile Knob, Spring-loaded – Types  JX-PF50, JX-PF60
