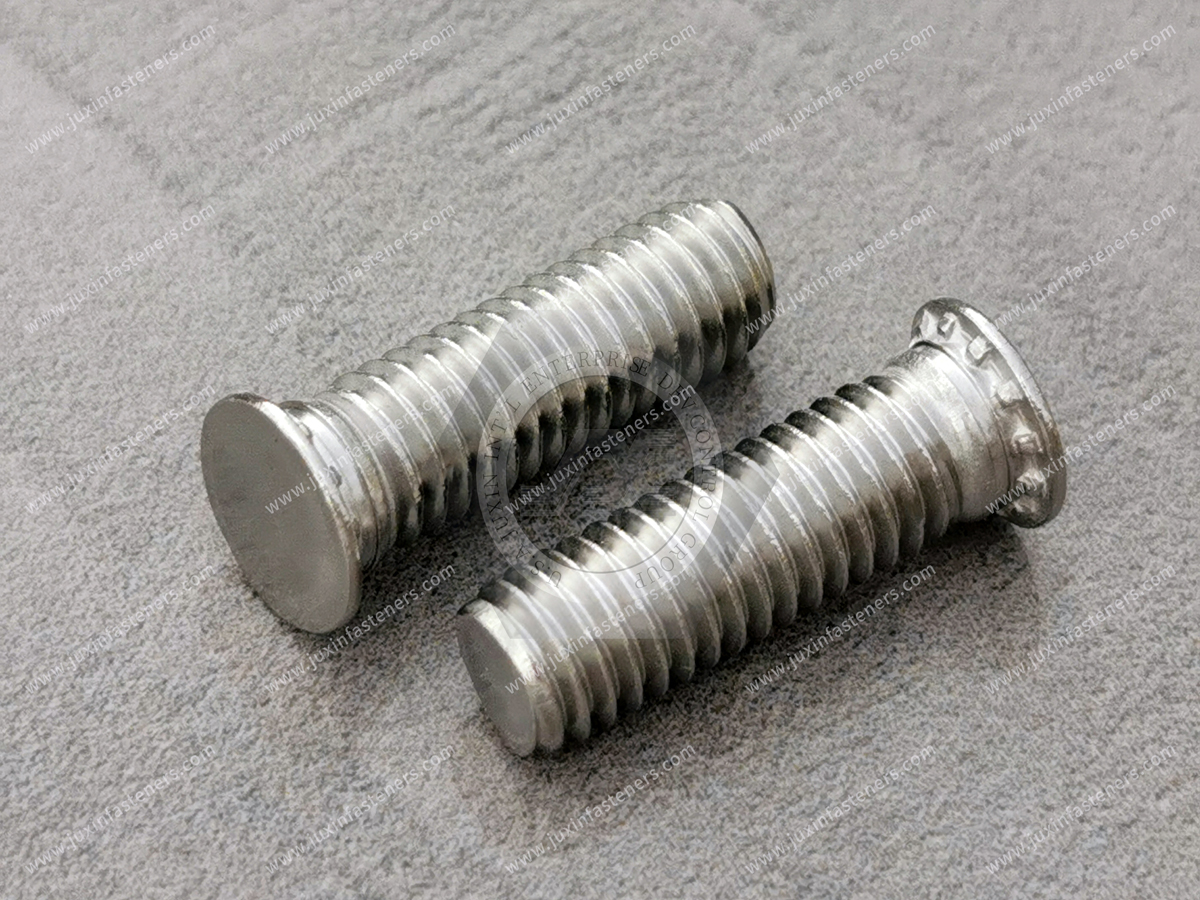

Flush-Head Studs JX-FHS

Size Can also be According to the Customer's requirement and please check the detailed specification sheet details PDF, CAD, 33-34Page See more product details.

The basic element of the self-clinching studs is they provide a strong reusable thread in thin panels. With easy installation, these self-clinchingfasteners can be clinched into thin metal panels with a very low cost of installation. Ideal for a wide range of application uses,self-clinching studs can withstand heavy loads and high torque levels.J-X Fastener’s inventory of self-clinching studs isavailable in a variety ofstyles and materials to solve most design applications.Self-clinching studs are installed by placing them in properly sized holes in the sheets and squeezing into place with any standard press. The squeezing action embeds the head of the stud into the sheet. The metal displaced by the head flows smoothly and evenly around the ribs and into the annular groove – creating a flushhead assembly and securely locking the stud into the sheet with high torque-out and pushout resistances.FH (flush-head) studs are available in aluminum, steel, or stainless steel. They are also available unthreaded on special order.

Flush-head in designated minimum sheet thickness or greater.

Type JX-FHS is recommended for use in steel or aluminum sheets HRB (Rockwell “B” scale) 70 or less and HB (Hardness Brinell) 125 or less.

Type JX-FHA is recommended for use in aluminum sheets HRB (Rockwell “B” scale) 50 or less and HB (Hardness Brinell) 82 or less.

E. Packing: Inner is Poly foam, out is carton. Then pallet. Carton size: 29*19*19.5CM and 23.5*17.5*8, CM and pallet size is: 215*100*90CM, or as your requirement.
