Self-clinching Fasteners for Sheet Metal

Floating self-clinching, locking thread nuts fasteners JX-LAC, JX-LAS

Material:

Stainless Steel: SUS302, SUS303, SUS316, SUS410, SUS420, SUS430, etc.

Locking and Non-locking Threads These fasteners provide load-bearing threads in thin sheets and permit up to 0.76mm adjustment for mating hole misalignment.

The self-clinching feature offers fast and simple assembly. The fasteners are squeezed into prepared holes using any standard press. The sheet remains flush on one side, and the fastener is permanently locked in place. Extra strength and support in the assembly are obtained by the threads of the floating nut extending fully into the retainer shank. A self-locking version of the fastener is also offered. Thread locking torque performance is equivalent to applicable specifications.


Share:

Product Specification

Size Can also be According to the Customer's requirement and please check the detailed specification sheet details PDF, CAD, 37-38Page See more product details.


Locking and Non-locking Threads nuts. These fasteners provide load-bearing threads in thin sheets and permit up to .030” adjustment for mating hole misalignment. The self-clinching feature offers fast and simple assembly. The fasteners are squeezed into prepared holes using any standard press. The sheet remains flush on one side, and the fastener is permanently locked in place. Extra strength and support in the assembly are obtained by the threads of the floating nut extending fully into the retainer shank. A self-locking version of the fastener is also offered. Thread locking torque performance is equivalent to applicable specifications. Non-locking Type and self-locking Type fasteners provide load-bearing threads in stainless steel sheets as thin as .038” with hardness up to HRB 88

Product Packaging

E. Packing: Inner is Poly foam, out is carton. Then pallet. Carton size: 29*19*19.5CM and 23.5*17.5*8, CM and pallet size is: 215*100*90CM, or as your requirement.

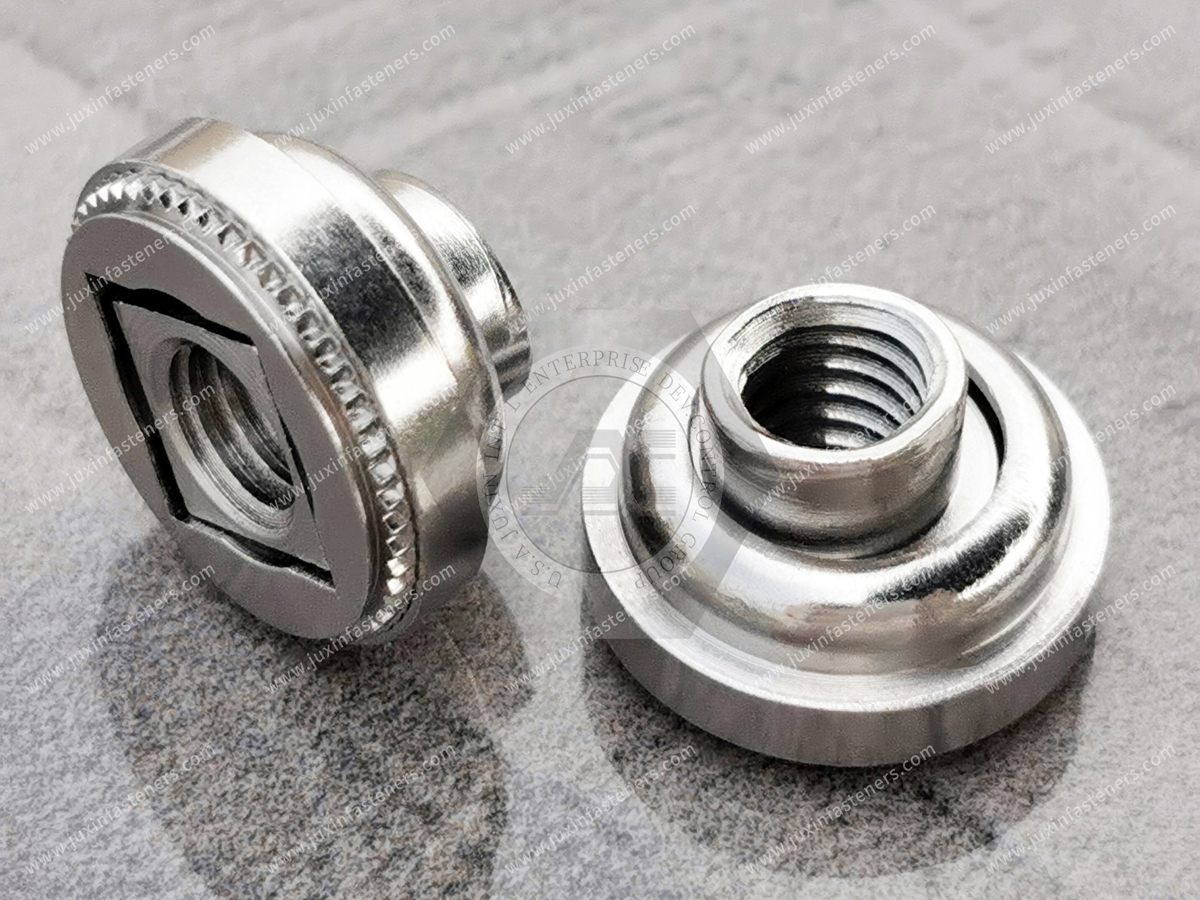

Product Pictures

Floating self-clinching, locking thread nuts fasteners JX-LAC, JX-LAS


Floating self-clinching, locking thread nuts fasteners JX-LAC, JX-LAS
