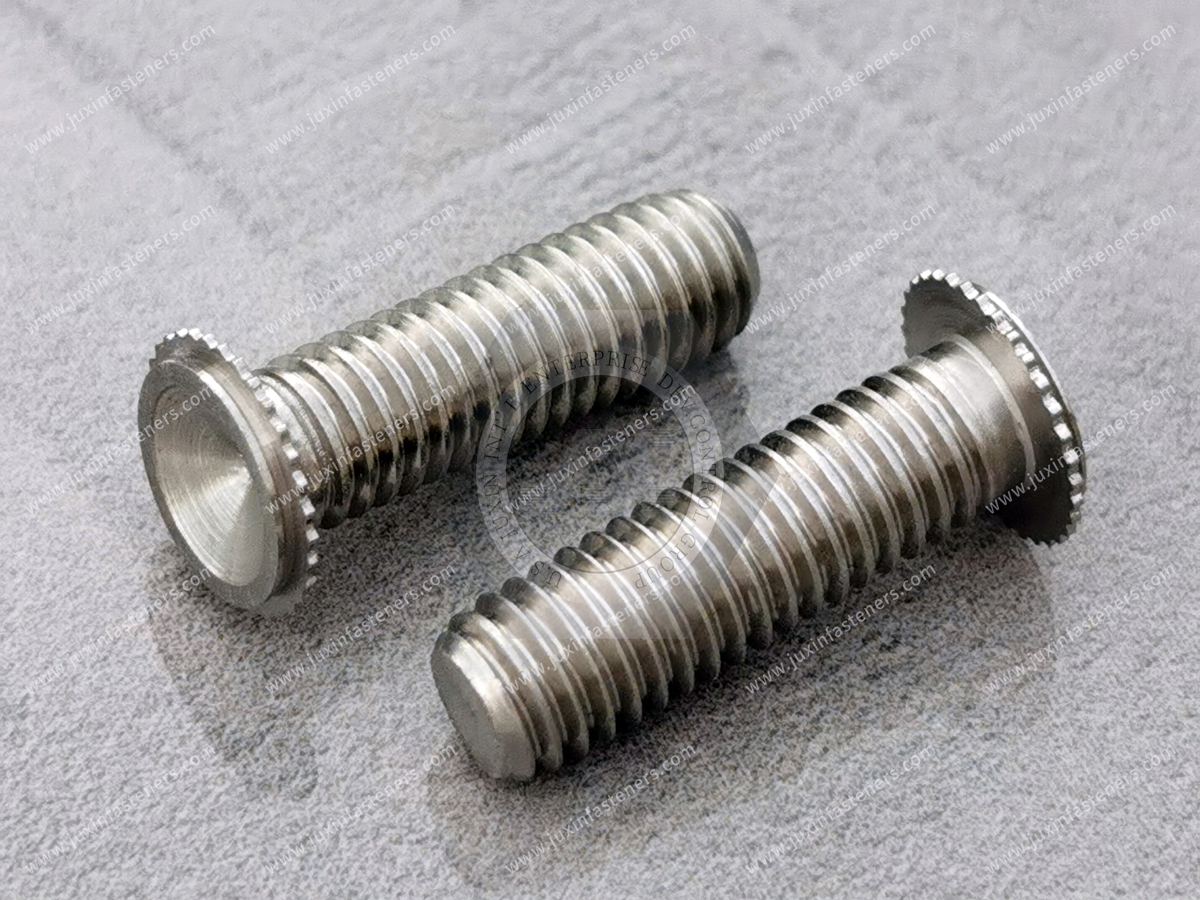

Concealed Head Studs – Types JX-CFHA, JX-CFHC, JX-CHA, JX-CHC

Size Can also be According to the Customer's requirement and please check the detailed specification sheet details PDF, CAD, 33-34Page See more product details.

Installed into a blind milled hole where surface opposite stud must remain unmarried, Thread sizes #4 to #10 and M8 to M5.These studs ensure permanent mounting in metal sheets as thin as .062 in. The fastener head is locked securely in a blind, milled hole and is able to handle substantial loads. The concealed-head feature allows the side of the sheet opposite installation to remain smooth. Sheet preparation only requires a milled blind hole to the recommended minimum depth. Center-cutting end mills for hole preparation are available from Juxin. Installation of the concealed-head studs and standoffs is simple by using a hollow anvil and solid punch. Place the head of the fastener in the hole and insert using any standard press.

E. Packing: Inner is Poly foam, out is carton. Then pallet. Carton size: 29*19*19.5CM and 23.5*17.5*8, CM and pallet size is: 215*100*90CM, or as your requirement.
