Self-clinching Fasteners for Sheet Metal

Captive Panel Screw, Screw Head, Spring-loaded, Flare Mount - Metric Type JX-PF7MF

Material:

Steel: C45(K1045), C46(K1046), C20, etc.

Iron: 1213, 1214, 1215, etc.

Or Stainless Steel: SUS302, SUS303, SUS316, SUS410, SUS420, SUS430, etc.

Automotive panel fasteners connect two or more objects to fasten the parts. In daily life or industrial production, they have played a vital role. Fasteners of the model specifications are very diverse, the performance of the use of very different, and standard fasteners are bolts, screws, studs, nuts, and spacers; the need for outstanding quality fasteners is very much recommended by the U-Button fasteners, rest assured that the choice.

Share:

Product Specification

Size can also be according to the customer's requirement. Please check the detailed specification sheet details: PDF, CAD, 59-60Page. See more product details.

The self-clinching mounting design provides high pushout resistance.

Installs flush on the backside of the panel.

Does not require special hole preparation.

Product Packaging

E. Packing: Inner is Poly foam, out is carton. Then pallet. Carton size: 29*19*19.5CM and 23.5*17.5*8, CM and pallet size is: 215*100*90CM, or as your requirement.

Product Pictures

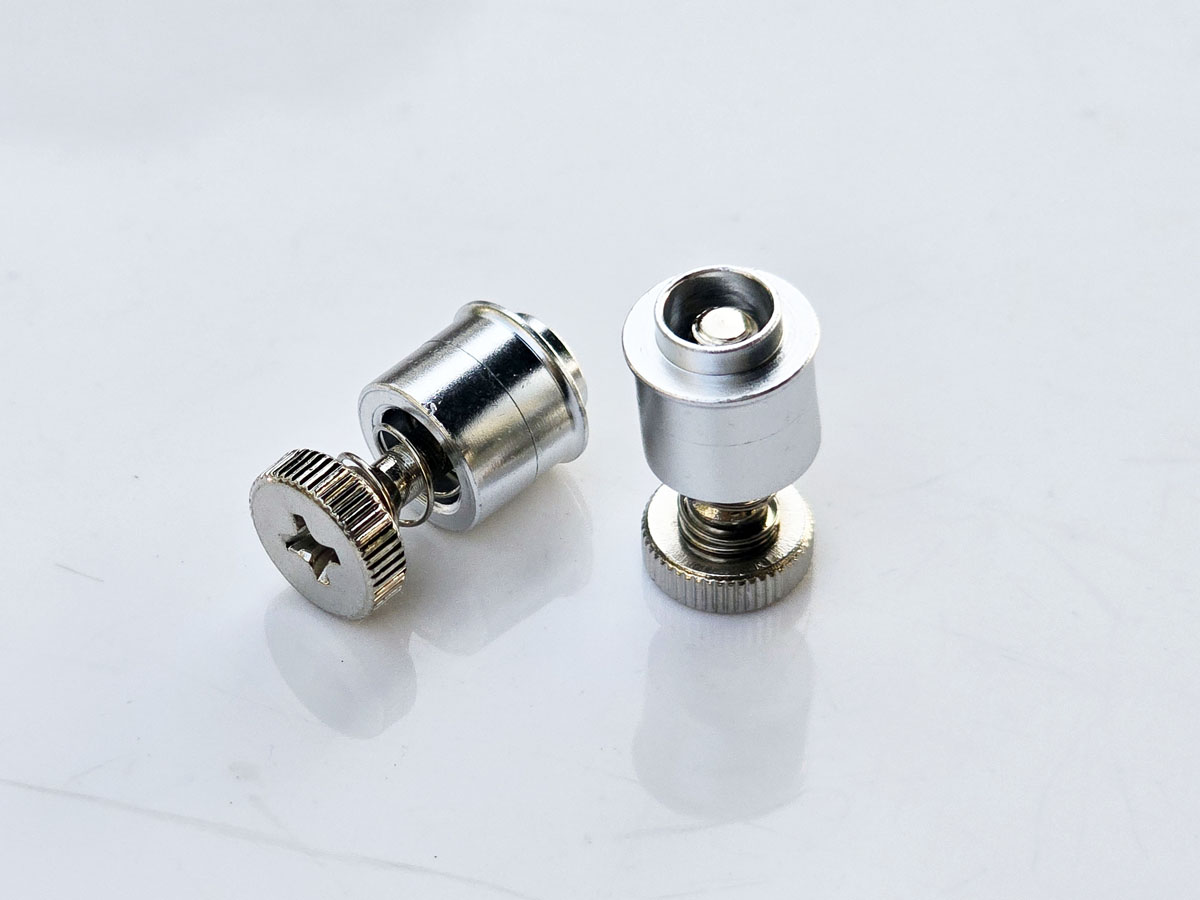

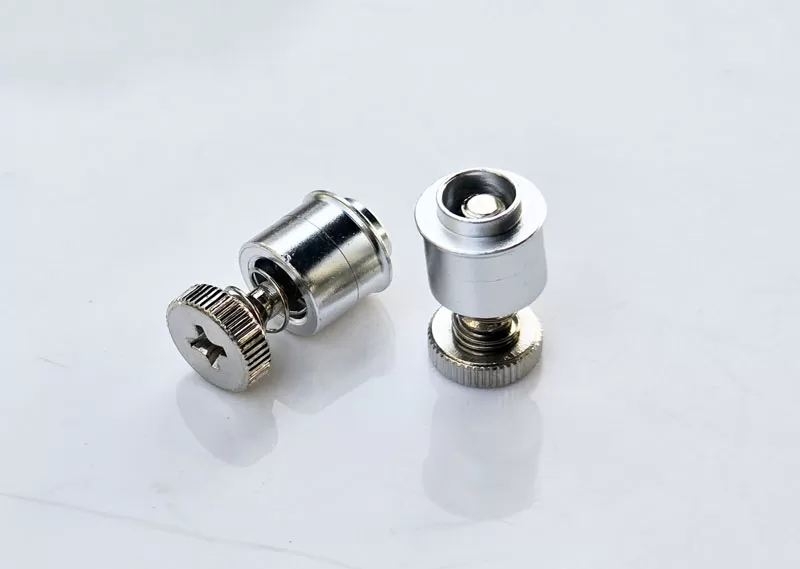

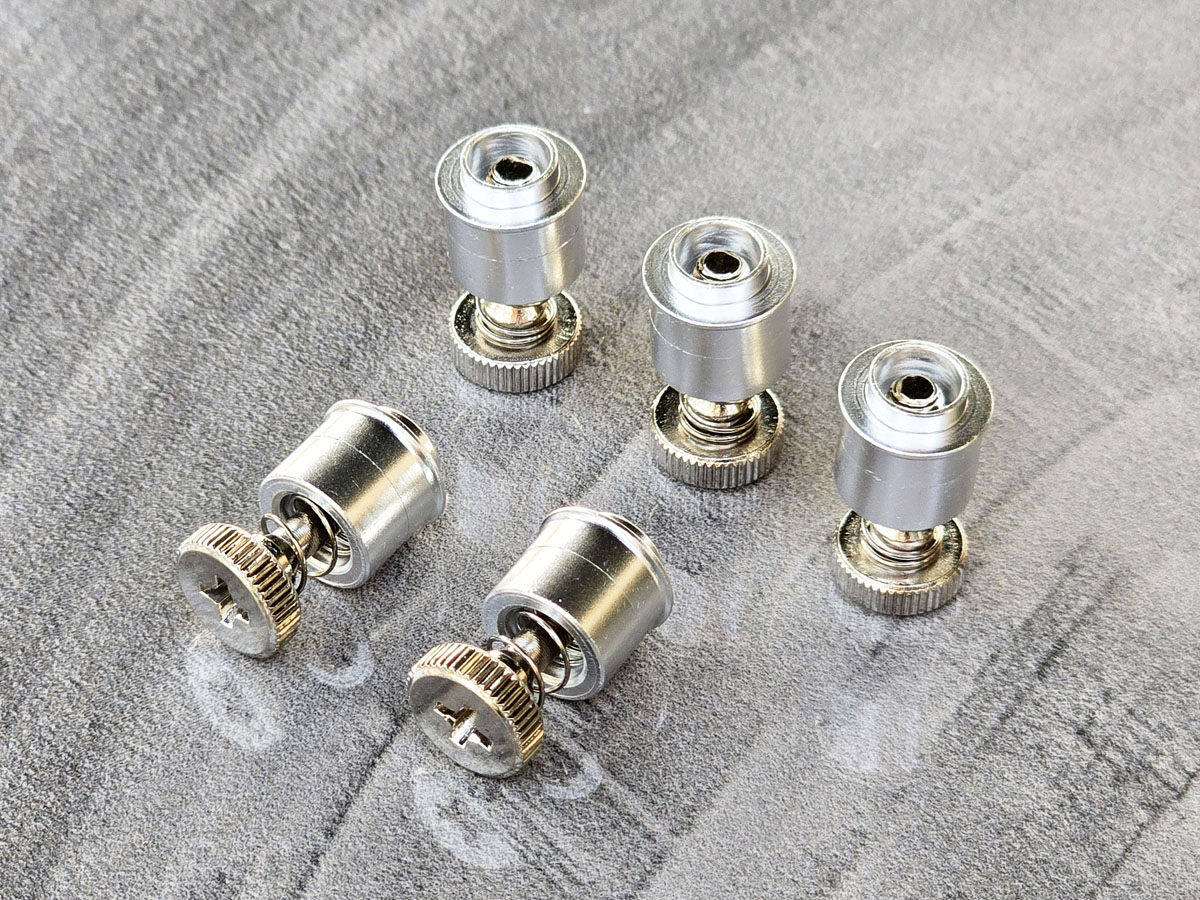

Captive Panel Screw, Screw Head, Spring-loaded, Flare Mount - Metric Type JX-PF7MF


Captive Panel Screw, Screw Head, Spring-loaded, Flare Mount - Metric Type JX-PF7MF
