Eye Bolts

Name: Eyebolts—For Lifting&Low-Visibility Eyebolts—For Lifting

&Low-Temperature Eyebolts—For Lifting

Material: Carbon steel, Stainless steel SUS304, SUS616, A2-70, A4-80

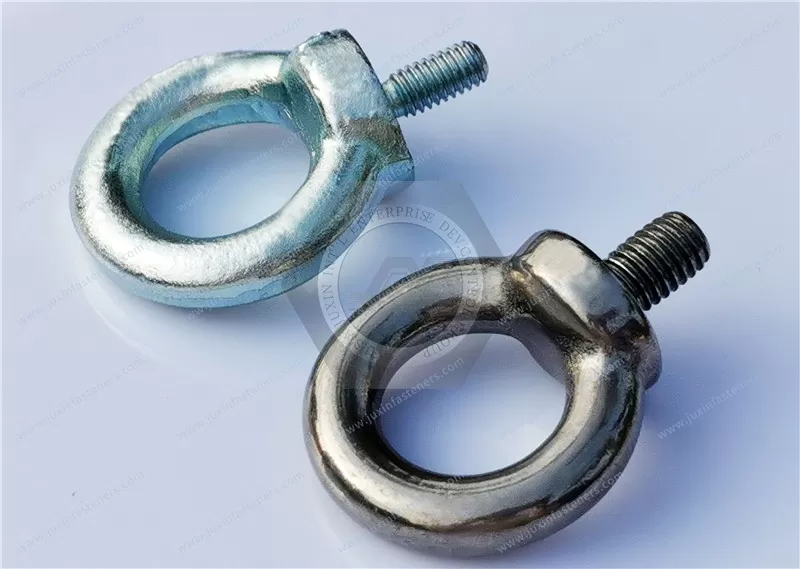

1. Also known as machinery eyebolts. Zinc-plated steel eyebolts offer good corrosion resistance. Galvanized steel eyebolts have a hot-dipped finish for more corrosion resistance than zinc-plated steel.

304 stainless steel eyebolts are more corrosion-resistant than galvanized steel.316 stainless steel are the most corrosion-resistant eyebolts. Note: Capacities listed are for vertical lifting only. Eyebolts with the shoulder can be used for angular lifting up to 45°, but the capacities will be significantly reduced. For angular lifting, we recommend Hoist Rings. Eyebolts without shoulders are for vertical lifting only. Warning: Never use to lift people or items over people.

2. The matte black-oxide finish won't reflect light, allowing the eyebolts to blend into the background. Note: Capacities listed are for vertical lifting only. Eyebolts with the shoulder can be used for angular lifting up to 45°, but the capacities will be significantly reduced. For angular lifting, we recommend Hoist Rings. Eyebolts without shoulders are for vertical lifting only. Warning: Never use to lift people or items over people.

3. Low-Temperature Eyebolts—For Lifting. These eyebolts retain their strength in temperatures as low as -40° F.Note: Capacities listed are for vertical lifting only. Eyebolts with the shoulder can be used for angular lifting up to 45°, but the capacities will be significantly reduced. For angular lifting, we recommend Hoist Rings. Eyebolts without shoulders are for vertical lifting only. Warning: Never use to lift people or items over people.

The characteristics of the eyebolt include its temperature-hardened, forged material, surface finish, external thread length, and the necessity of replacing the bolt with one of the same quality grade.

Material and Finish: Sling screws are typically temperature-hardened and forged, a manufacturing process that ensures high strength and durability. The surface treatment is CORRUD-DT technology, which is at least 20 times more corrosion-resistant than ordinary galvanized treatment, significantly enhancing the corrosion resistance of eyebolts1.

External thread length: The external thread length of eyebolt screws is usually marked as ¨H¨, which indicates that the bolt is fixed with other parts and the same quality grade of the bolt must be used for replacement. This design ensures the stability and safety of the bolt during use.

Fields of application: As an industrial product, the eyebolt has a wide range of applications, especially in electromechanical products, where its primary function is to lift loads. The standardization and reliability of this fastener make it a key component in many lifting and hoisting operations.

In summary, the lifting ring screw shows its importance and characteristics in the industrial field with its temperature-hardened and forged material, efficient corrosion-resistant surface treatment, specific thread design, and its application in electromechanical products.

The eyebolt screws are forged as a whole and are normalized and oxidized skin removed; the forgings are free from over-burning and cracking defects; the eyebolt screws are uniformly hardness-tested, with a hardness value of HRB67~95. The strength of Likuan eyebolt grade is 12.9 grade.

Sling screws must be installed vertically on the plane of the workpiece, the joint surface should be flat, and the joint should be tight. The screws must be adjusted to the direction of tension and avoid contact with sharp-edged objects.

Sling screws have to pass the test load for the working load of 2.5 times and are 1.5 times the working load for the 20,000-times fatigue test. Sling screws to meet or exceed the requirements of ASME B30.26 standard. Ring screws from alloy steel by high reference to the German RUD WBG type production; this product is exported to Europe and the United States and through the local G80 level standard inspection. Better material and higher tensile strength than the existing domestic screws provide a tensile strength test report. Sling screws must be operated by professional personnel, and please refer to the instructions for use; when connecting with the spreader, it should keep the spreader and the ring connecting part rotating freely, and it should be inspected by professional personnel regularly for safety. Maximum working load is up to 30T, and can be customized with inch thread.

Features of eyebolt screws

1. Safe and reliable: the head of the eyebolt can withstand many loads and has a non-slip texture to ensure that it is not easy to slide off when in use.

2. Flexible and versatile: The eyebolt can be assembled on walls and hangings made of different materials, and it has a wide range of uses.

3. Beautiful and practical: The eyebolt's surface is polished, with excellent brightness and texture, and it coordinates with the home and decorative environment.

Uses of eyebolt screws

The eyebolt screw is a standard fastener that is mainly used for hanging household items, tools, decorations, light sources, and other items. In the construction field, eyebolt screws are also widely used in the installation of hanging devices such as hanging air conditioners, ceiling fans, water pipes, and ducts.

How to choose the right eyebolt?

1. Choose the suitable material: eyebolt screws are generally made of stainless steel, carbon steel, and other materials, according to the conditions of use to choose the appropriate material.

2. Selection of appropriate size: The eyebolt's specifications should be selected according to the suspended object's weight and size requirements.

3. Structural reliability: choose a reasonable structure, the head of the ring, and the screw to connect the stable ring screw.

Precautions for using eyebolt

1. Installation in strict accordance with the instructions to avoid the phenomenon of empty casting and overloading;

2. Avoid hanging unbalanced items to prevent safety accidents such as overturning and falling off;

3. According to the frequency of use and environmental conditions, regularly check the use of eyebolt screws

Size Can also be According to the Customer's requirement for manufacturing, please check the detailed specification sheet details PDF, CAD, 153-154 Page See more product details.

Packaging: The inner packaging is a plastic bag, and the outer packaging is a carton. Then the tray. Carton size: 29*19*19.5cm and 23.5*17.5*8, cm and pallet size: 215*100*90cm, or as your request.
