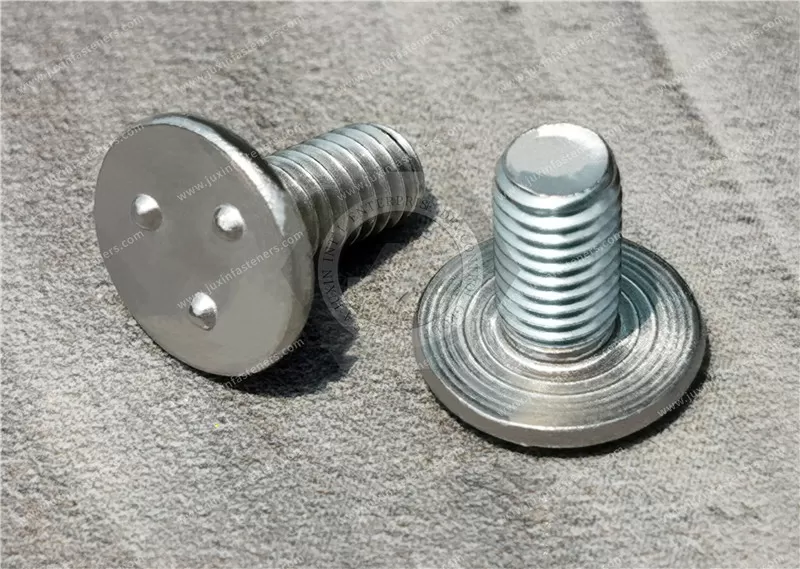

Stainless steel Type T3 Projection Weld Studs

Name: Overhead Projection Weld Bolts - Type A

Material: Stainless steel, Carbon steel, Brass

Spot weld these pins directly to a surface for greater rigidity and strength than other pins—no mounting hole required. Steel pins have good strength.18-8 stainless steel pins offer a balance of strength and corrosion resistance. They may be mildly magnetic. Pins are passivated for added protection against corrosion and oxidation.

You can pass these pins through a mounting hole and spot-weld the head to the surface for greater rigidity and strength than other pins.

Carbon Steel—Carbon steel pins have good strength.

18-8 Stainless Steel—18-8 stainless steel pins offer a balance of strength and corrosion resistance. They may be mildly magnetic. Pins are passivated for added protection against corrosion and oxidation.

Spot weld these pins directly to a surface for greater rigidity and strength than other pins—no mounting hole required.

Carbon Steel—Carbon steel pins have good strength.

18-8 Stainless Steel—18-8 stainless steel pins offer a balance of strength and corrosion resistance. They may be mildly magnetic. Pins are passivated for added protection against corrosion and oxidation.

Material

C1010 High-Welding Quality, Low Carbon Steel (plain finish unless otherwise specified)

18-8 Stainless Steel (passivated finish)

Overall Pin Length

Inch: Available in 1/4", 5/16”, 3/8”, 1/2", 5/8”, 3/4", 1”

Metric (mm): Available in 6.0, 8.0, 12.0, 16.0, 20.0, 25.0, 30.0, 40.0, 50.0

Pin Body Diameter

Inch: Available in 0.117”, 0.144”, 0.163”, 0.190”, 0.250”, 0.335”, 0.375”

Metric (mm): Available in 3.0, 4.0, 5.0, 6.0, 8.0, 10.0

Note: A variety of other dimensional characteristics are also available.

Application notes:

This weld pin can be spot welded using standard spot welding equipment. No special tooling or fixturing is required. It is ideally suited for use in concealed or blind applications and requires no mounting hole, thereby improving the appearance and durability of the finished product.

For applications that require a robust weld pin that can be used within concealed or blind applications without a mounting hole, this spot weld pin is an excellent choice. Its robust design characteristics make it a good choice for those applications that require a pin that will serve as a bearing surface, hinge pin, stop pin, or mounting pin.

Juxin Fasteners has 21 years of experience in the industrial fastener business. We carry a full suite of industrial fastener products and pride ourselves on staying abreast of all industry trends and developments. We take pride in our commitment to complete customer satisfaction.

Size Can also be According to the Customer's requirement for manufacturing, please check the detailed specification sheet details PDF, CAD, 149-150 Page See more product details.

Packaging: The inner packaging is a plastic bag, and the outer packaging is a carton. Then the tray. Carton size: 29*19*19.5cm and 23.5*17.5*8, cm and pallet size: 215*100*90cm, or as your request
