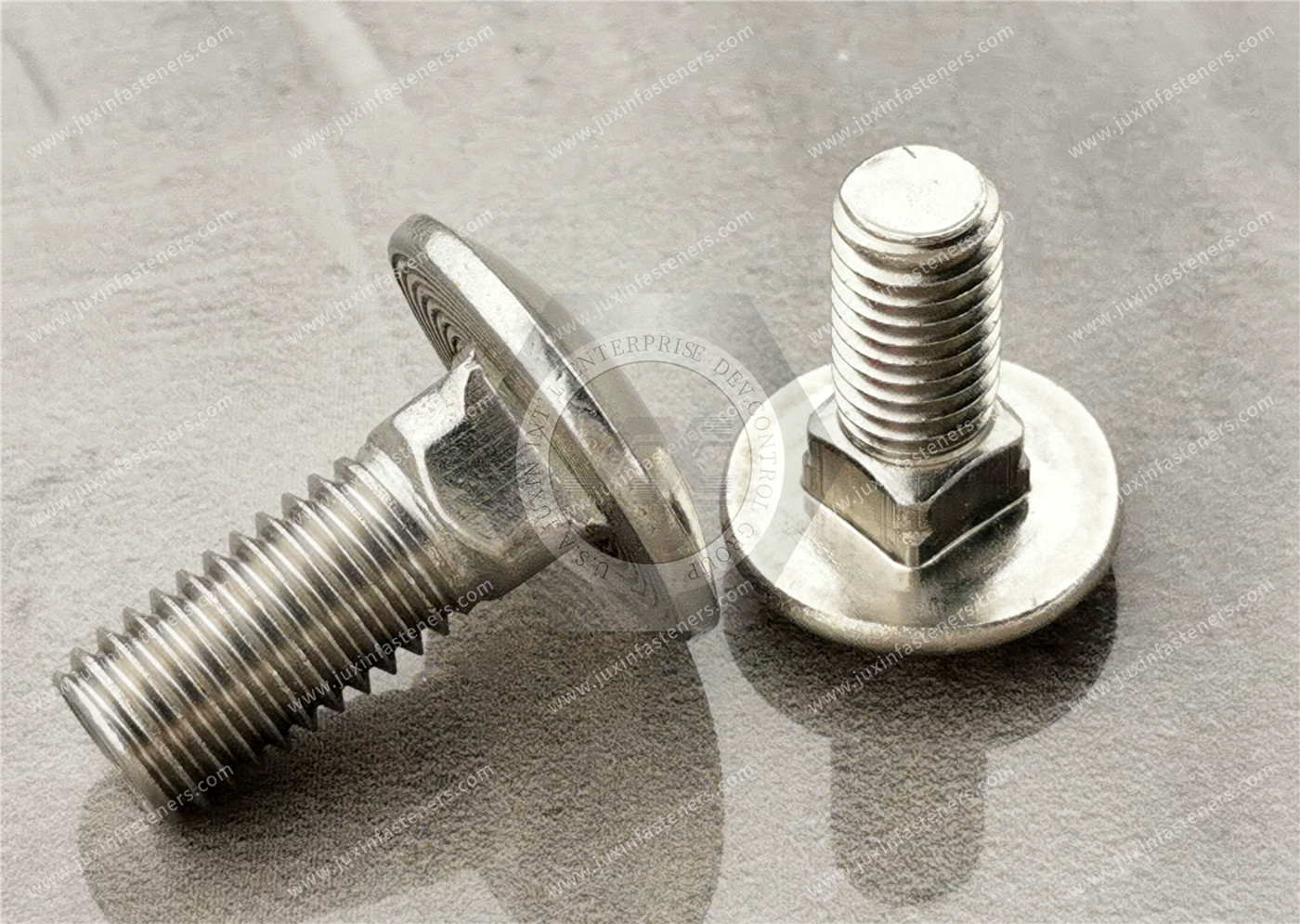

Stainless Steel Square-Neck Carriage Bolts

Name: Stainless Steel Square-Neck Carriage Bolts

1. Stainless Steel Square-Neck Carriage Bolts. Made from 18-8 stainless steel, these bolts have good chemical resistance and may be mildly magnetic. They're a good choice for ACQ-treated (arsenic-free) lumber. A square neck keeps them from turning when tightening a nut. A smooth, rounded head provides a finished look. Length is measured from under the head. Dimensions meet ASME B18.5 or DIN 603 specifications. Some also meet ISO 8678. DIN 603 is functionally equivalent to ISO 8678 with slight differences in head diameter, head height, and length tolerances. Match the thread spacing of mating components. Coarse threads are the industry standard; choose these screws if you don’t know the pitch or threads per inch. Fine threads are closely spaced to prevent loosening from vibration.

2. Super-Corrosion-Resistant 316 Stainless Steel Square-Neck Carriage Bolts. More corrosion resistant than 18-8 stainless steel bolts, these 316 stainless steel bolts have excellent resistance to chemicals and salt water and are a good choice for ACQ-treated (arsenic-free) lumber. They may be mildly magnetic. A square neck keeps them from turning when tightening a nut. A smooth, rounded head provides a finished look. Dimensions meet ASME B18.5 or DIN 603 specifications. Length is measured from under the head.

Size Can also be According to the Customer's requirement for manufacturing, please check the detailed specification sheet details PDF, CAD, 197-198 Page See more product details.

Packaging: The inner packaging is a plastic bag, and the outer packaging is a carton. Then the tray. Carton size: 29*19*19.5cm and 23.5*17.5*8 cm and pallet size: 215*100*90 cm, or as your request.
