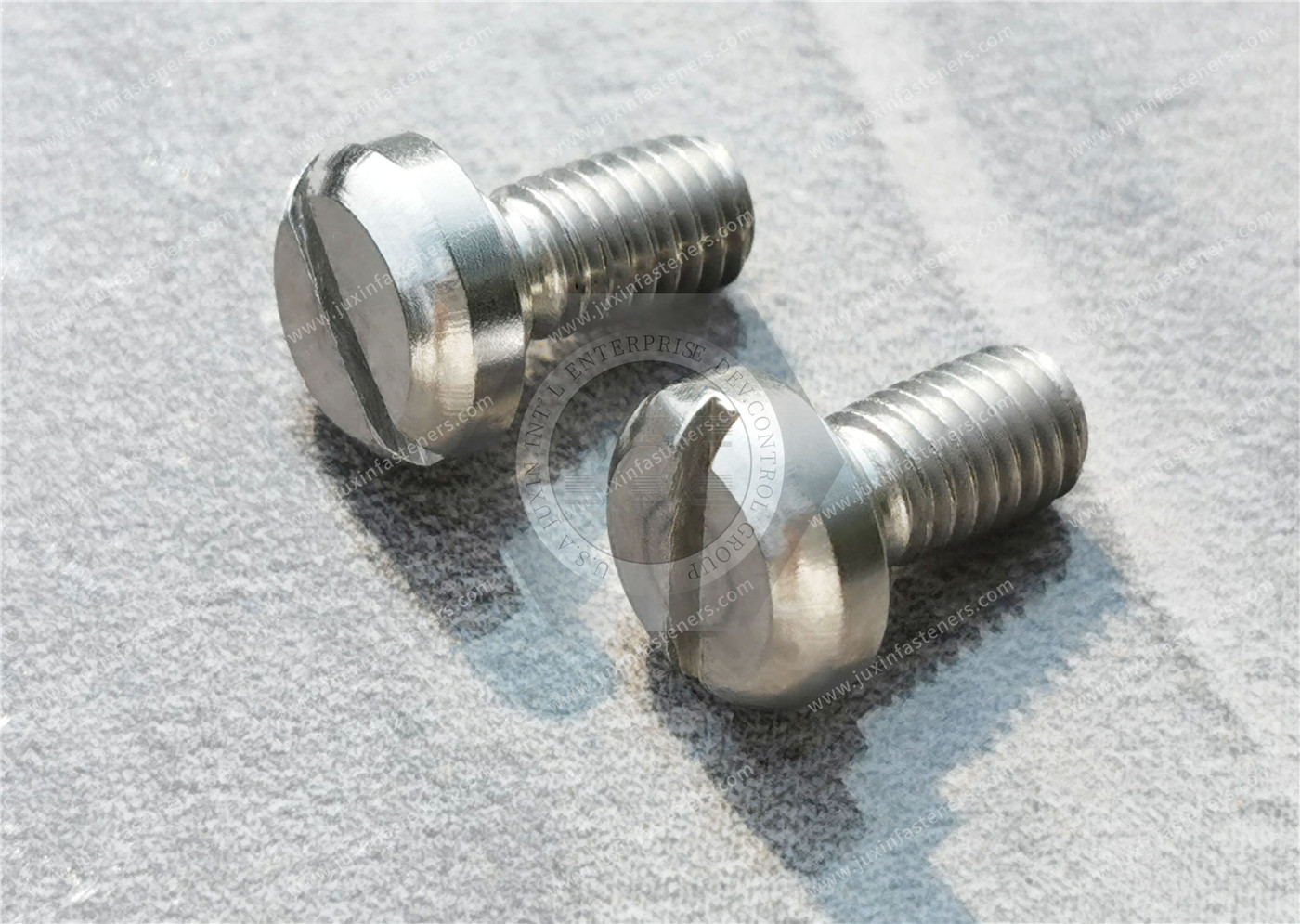

Slotted Pan Head Screw

Name: Stainless Steel Pan Head Slotted Screws

1. Stainless Steel Pan Head Slotted Screws.18-8 stainless steel pan head screws have good chemical resistance and may be mildly magnetic. All are passivated for added protection against oxidation and corrosion. Length is measured from under the head.

2.316 Stainless Steel Pan Head Slotted Screws. More corrosion resistant than 18-8 stainless steel screws, these pan head screws have excellent resistance to chemicals and salt water. All are passivated for added protection against oxidation and corrosion. They may be mildly magnetic. Length is measured from under the head.

3. Steel Pan Head Slotted Screws. These pan head screws are zinc plated for corrosion resistance in wet environments. Length is measured from under the head. Metric Steel Pan Head Slotted Screws. Install these metric pan head screws for a low-profile, finished look—no countersink required. With a chamfered or slightly domed head, they won't catch on clothing or straps as you pass by. A layer of zinc plating protects the steel from rust in wet areas but won't hold up to salt water and chemicals. Length is measured from under the head. All of these screws meet DIN or ISO dimensional and material standards, so you know they'll fit with other parts and tools. Although DIN 85 is no longer active and has been superseded by ISO 1580, it's still a relevant standard that's referenced by engineers and designers. The two standards are functionally equivalent. Wide-head screws evenly distribute clamping force and eliminate the need for a washer. While they may not fit into tight spots, they're a good option for fastening thin material, or when the screw hole is much larger than the diameter of the screw.

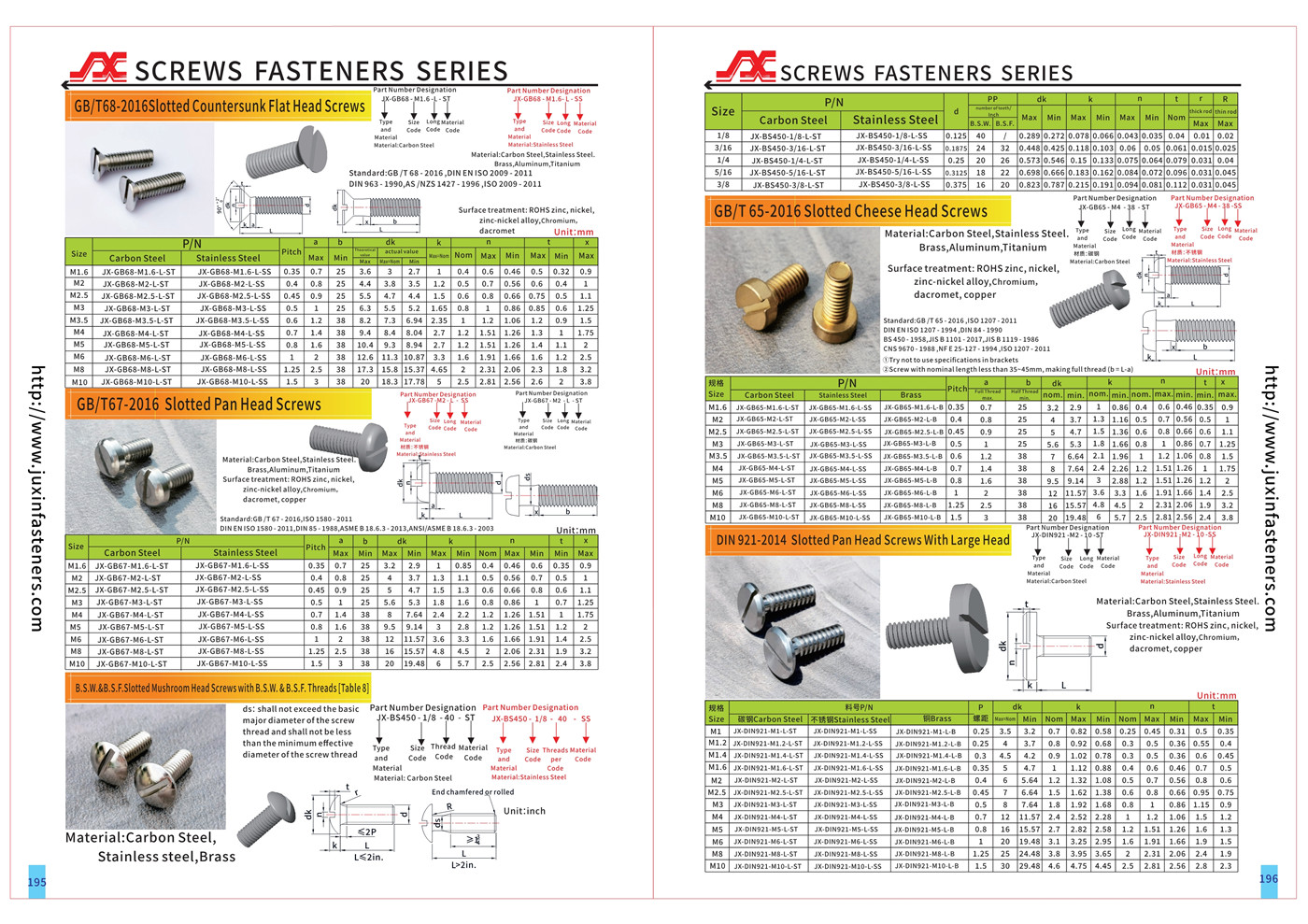

Size Can also be According to the Customer's requirement for manufacturing, please check the detailed specification sheet details PDF, CAD, 195-196 Page See more product details.

Packaging: The inner packaging is a plastic bag, and the outer packaging is a carton. Then the tray. Carton size: 29*19*19.5cm and 23.5*17.5*8 cm and pallet size: 215*100*90 cm, or as your request.
