Metric 12-spline Flange Screws

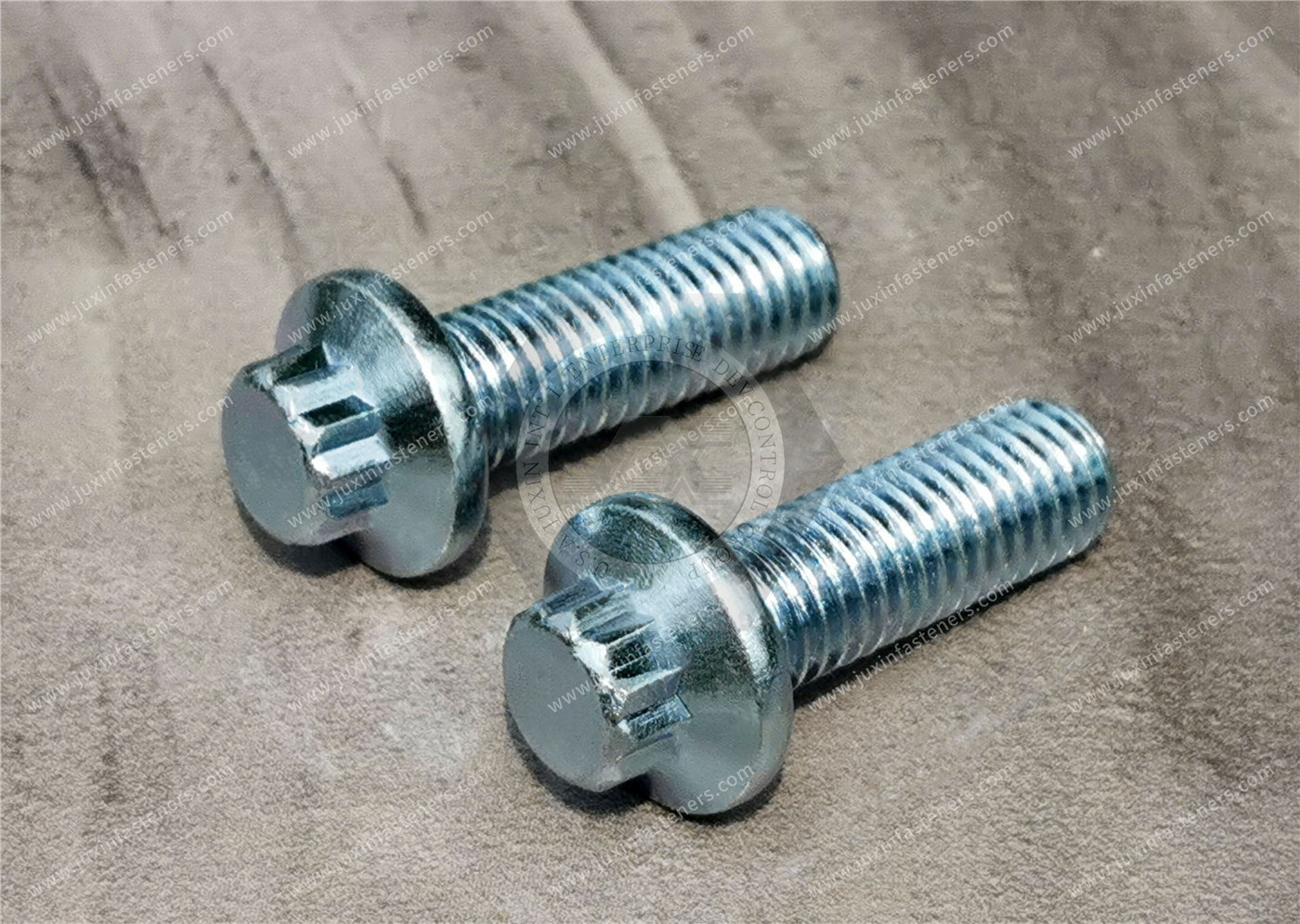

Name: AAlloy Steel 12-Point Screws

Good for high-strength fastening, these screws are made from steel comparable in strength to Grade 9 steel. Use them for heavy-duty stamping applications as well as earth-moving machineries, such as bulldozers and excavators. The head makes 12 points of contact with a wrench to handle more torque than a socket head or hex head screw. The flange distributes pressure where the screw meets the surface, eliminating the need for a separate washer. To install, use a 12-point wrench that matches the head width of your screw. Head height includes the flange. Length is measured from under the flange.

Black-oxide-coated screws are mildly corrosion-resistant in dry environments. They meet SAE AS9104/1 specifications for quality. Match the thread spacing of mating components. Coarse threads are the industry standard; choose these screws if you don’t know the pitch or threads per inch.

Size Can also be According to the Customer's requirement for manufacturing, please check the detailed specification sheet details PDF, CAD, 161-162 Page See more product details.

Packaging: The inner packaging is a plastic bag, and the outer packaging is a carton. Then the tray. Carton size: 29*19*19.5cm and 23.5*17.5*8, cm and pallet size: 215*100*90cm, or as your request.
