Screws and Bolts, Weld Screws&Blots

JX-M14-27-S5107-5107-SS

Color:Natural

Material:Stainless Steel,Bolts with external hexalobular driving feature with small flange


Share:

Product Specification

Name: Alloy Steel 12-Point Screws&Stainless Steel 12-Point Screws

Material: Carbon steel, Alloy Steel, stainless steel SUS304, SUS316, Brass, Titanium alloy

1. Good for high-strength fastening, these screws are made from steel comparable in strength to Grade 9 steel. Use them for heavy-duty stamping applications as well as earth-moving machineries, such as bulldozers and excavators. The head makes 12 points of contact with a wrench to handle more torque than a socket head or hex head screw. The flange distributes pressure where the screw meets the surface, eliminating the need for a separate washer. To install, use a 12-point wrench that matches the head width of your screw. Head height includes the flange. Length is measured from under the flange.

Black-oxide-coated screws are mildly corrosion-resistant in dry environments. They meet SAE AS9104/1 specifications for quality.

Match the thread spacing of mating components. Coarse threads are the industry standard; choose these screws if you don’t know the pitch or threads per inch. Fine threads are closely spaced to prevent loosening from vibration. Screws that meet IFI 115 comply with these specifications for dimensions.

2. These hardened stainless steel screws combine excellent corrosion resistance with strength comparable to Grade 9 steel. Use them for heavy-duty stamping applications as well as earth-moving machineries, such as bulldozers and excavators. The head makes 12 points of contact with a wrench to handle more torque than a socket head or hex head screw. The flange distributes pressure where the screw meets the surface, eliminating the need for a separate washer. To install, use a 12-point wrench that matches the head width of your screw. Screws may be mildly magnetic. Head height includes the flange. Length is measured from under the flange.18-8 stainless steel screws have good chemical resistance and may be mildly magnetic. 450 stainless steel screws are more corrosion resistant than 18-8 stainless steel screws and have good resistance to chemicals and salt water. They are magnetic. Match the thread spacing of mating components. Coarse threads are the industry standard; choose these screws if you don’t know the threads per inch. Fine threads are closely spaced to prevent loosening from vibration.


Size Can also be According to the Customer's requirement for manufacturing, please check the detailed specification sheet details PDF, CAD, 211-212Page See more product details.

Product Packaging

Packaging: The inner packaging is a plastic bag, and the outer packaging is a carton. Then the tray. Carton size: 29*19*19.5cm and 23.5*17.5*8cm and pallet size: 215*100*90cm, or as your request

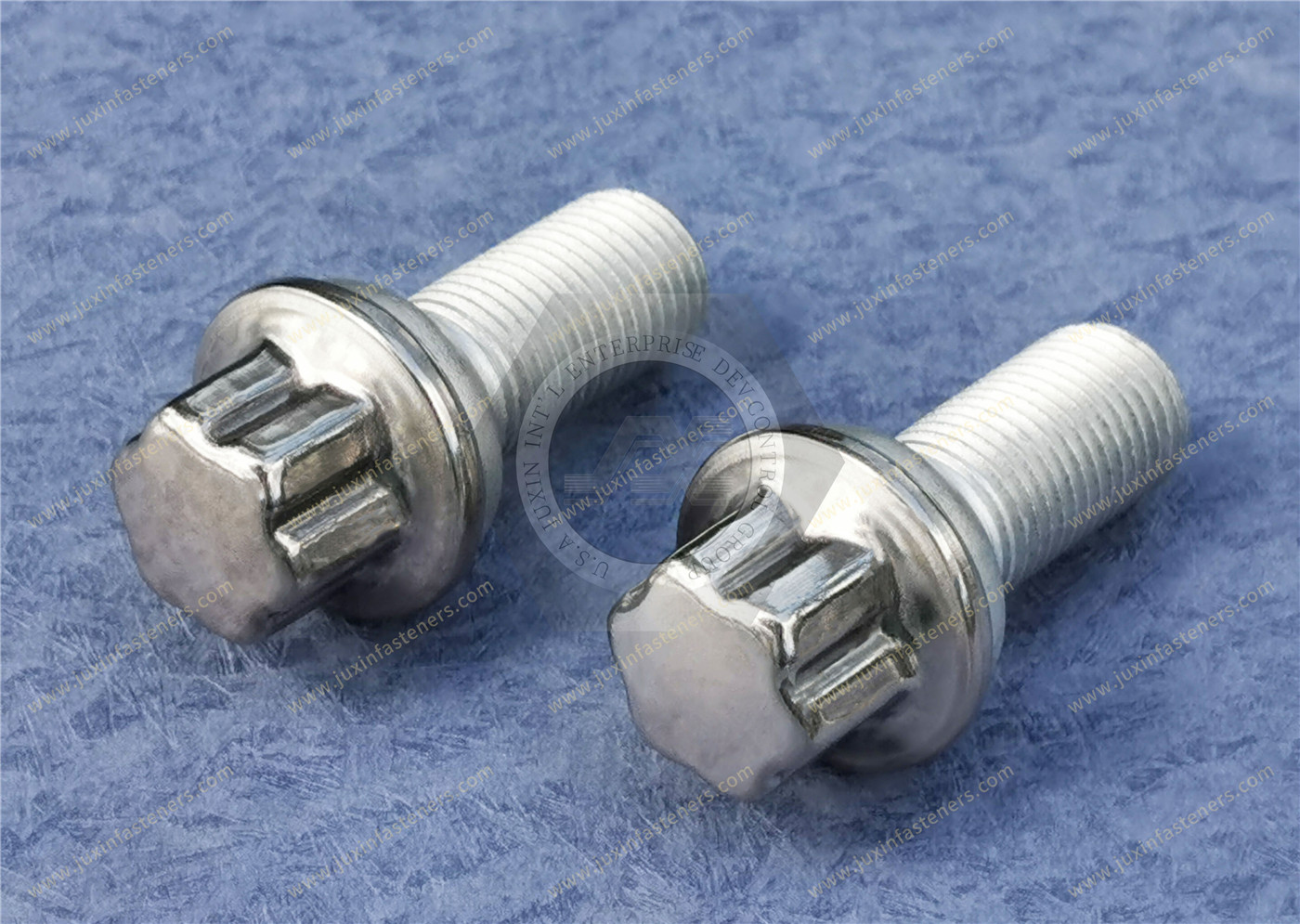

Product Pictures

JX-M14-27-S5107-5107-SS

SCREWS FASTENERS SERIES
