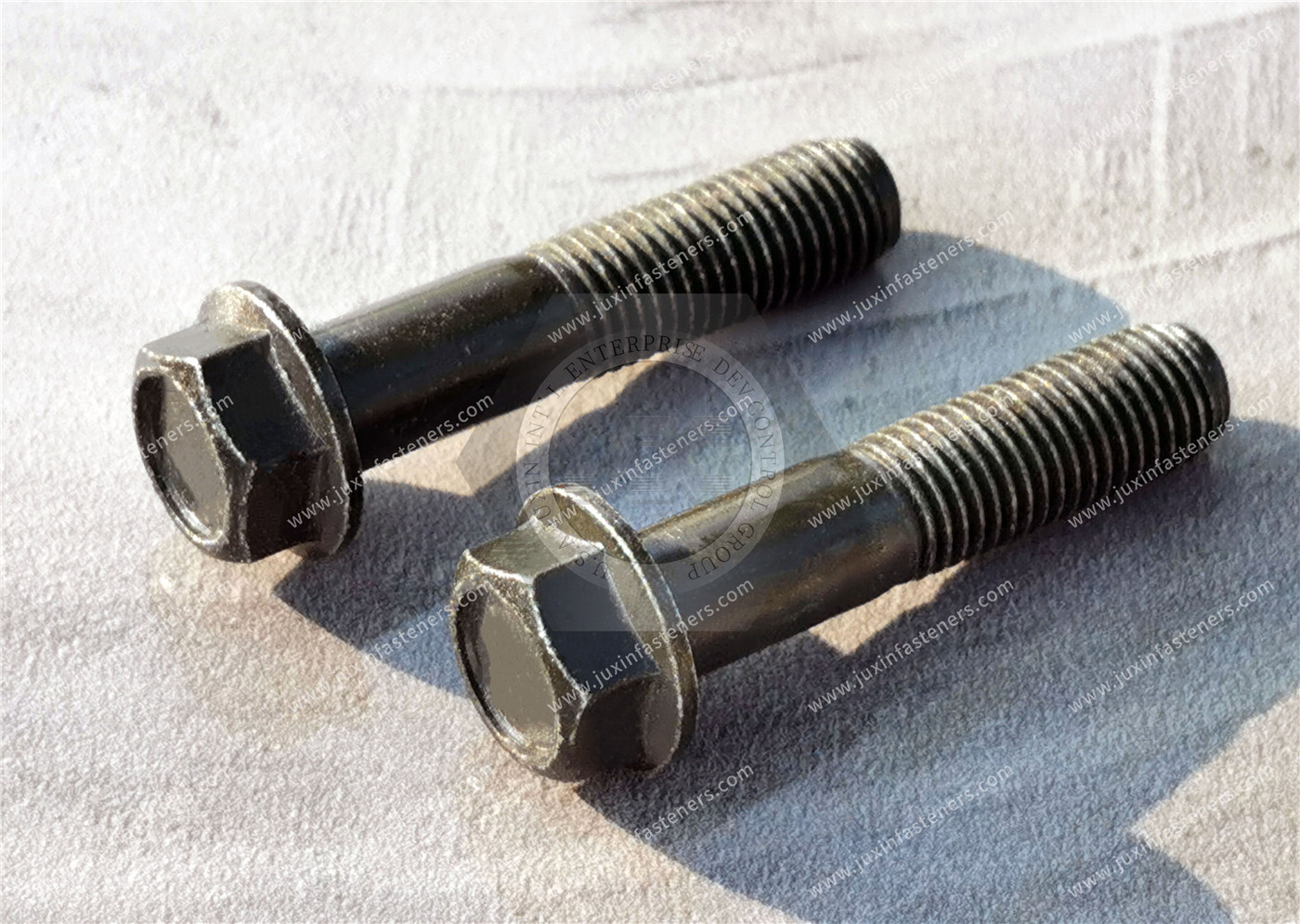

High-Strength alloy Steel Flanged Hex Head Screws

Name: JIS High-Strength Steel Flanged Hex Head Screws

Material: Carbon steel, Alloy Steel, stainless steel SUS304, SUS316

1. JIS High-Strength Steel Flanged Hex Head Screws Made to Japanese Industrial Standards, these Class 10.9 steel screws can be used in high-stress applications, such as valves, pumps, motors, and automotive suspension systems. They are at least 25% stronger than medium-strength steel screws. The flange distributes pressure where the screw meets the surface, eliminating the need for a separate washer. The zinc plating provides corrosion resistance in wet environments. Head height includes the flange. Length is measured from under the flange. Match the thread spacing of mating components. Coarse threads are the industry standard; choose these screws if you don’t know the pitch. Fine and extra-fine threads are closely spaced to prevent loosening from vibration; the finer the thread, the better the resistance.

2. Medium-Strength Metric Class 8.8 Steel Flanged Hex Head Screws. These Class 8.8 steel screws are suitable for fastening most machinery and equipment. The flange distributes pressure where the screw meets the surface, eliminating the need for a separate washer. All screws meet DIN 6921 specifications for dimensions. Head height includes the flange. Length is measured from under the flange. Zinc yellow-chromate-plated screws resist corrosion in wet environments. They also meet ISO 898-1 specifications for materials. Black corrosion-resistant-coated screws resist chemicals and withstand 1, 000 hours of salt spray. To maintain corrosion resistance, use these screws with black ultra-corrosion-resistant-coated nuts and washers.

3. Stainless Steel Flanged Hex Head Screws. Made from 18-8 stainless steel, these screws have good chemical resistance and may be mildly magnetic. The flange distributes pressure where the screw meets the surface, eliminating the need for a separate washer. Head height includes the flange. Length is measured from under the flange.

Inch screws meet ASTM F593 material quality standards and IFI 111 dimensional standards. Metric screws meet DIN 6921 dimensional standards

Size Can also be According to the Customer's requirement for manufacturing, please check the detailed specification sheet details PDF, CAD, 175-176 Page See more product details.

Packaging: The inner packaging is a plastic bag, and the outer packaging is a carton. Then the tray. Carton size: 29*19*19.5cm and 23.5*17.5*8, cm and pallet size: 215*100*90cm, or as your request.
