Screws and Bolts, Weld Screws&Blots

Equal-Length Twin Stud for Pressure Vessel Flange - Type A And B

Material: Carbon steel, Alloy Steel, stainless steel SUS304, SUS316, High-Strength Steel

Standard: GB /T 17116.3&DIN 6379 &NB /T 47027


Share:

Product Specification

1. Setup Studs. Secure setup clamps and fixtures to your machine table, or assemble heavy machines, such as engine mounts. These studs act as a pilot when connecting parts since they’re headless, which eases installation. Unlike a bolt, which has a head, they let you access parts from either end, but they require nuts to hold the part. Pair them with a T-slot or flanged nut when securing them to a machine table. Or, put a nut on before your part to work as a float, allowing you to adjust the height of your part. The unthreaded middle is useful for gripping and adjusting. Also known as double-ended studs. Steel studs are stronger than stainless steel studs. But, unfinished steel studs will rust from air and moisture. Black-oxide steel studs resist rusting in dry environments. Stainless steel studs stand up to corrosion better than steel studs. 18-8 stainless steel studs resist rusting in humid, damp, and washdown areas. 316 stainless steel studs withstand corrosion the best—even against salt water, chlorine, and chemicals.DIN studs meet dimensional and material requirements.

2. Vibration-Resistant Setup Studs.Also known as tap-end and fixture studs, these rods have friction-fit threads on one end to resist loosening and standard threads on the other end for attaching a nut. They are ideal for machining applications where vibration can loosen clamps. Remove studs with pliers to reuse them. Inch studs have a Class 5 thread fit on the friction-fit end and a Class 2A thread fit on the machine-threaded end. Metric studs have a Class SK6 thread fit on the friction-fit end and a Class 6g thread fit on the machine-threaded end. Stainless steel studs have excellent corrosion resistance.

Product Packaging

Packaging: The inner packaging is a plastic bag, and the outer packaging is a carton. Then the tray. Carton size: 29*19*19.5cm and 23.5*17.5*8cm and pallet size: 215*100*90cm, or as your request.

Product Pictures

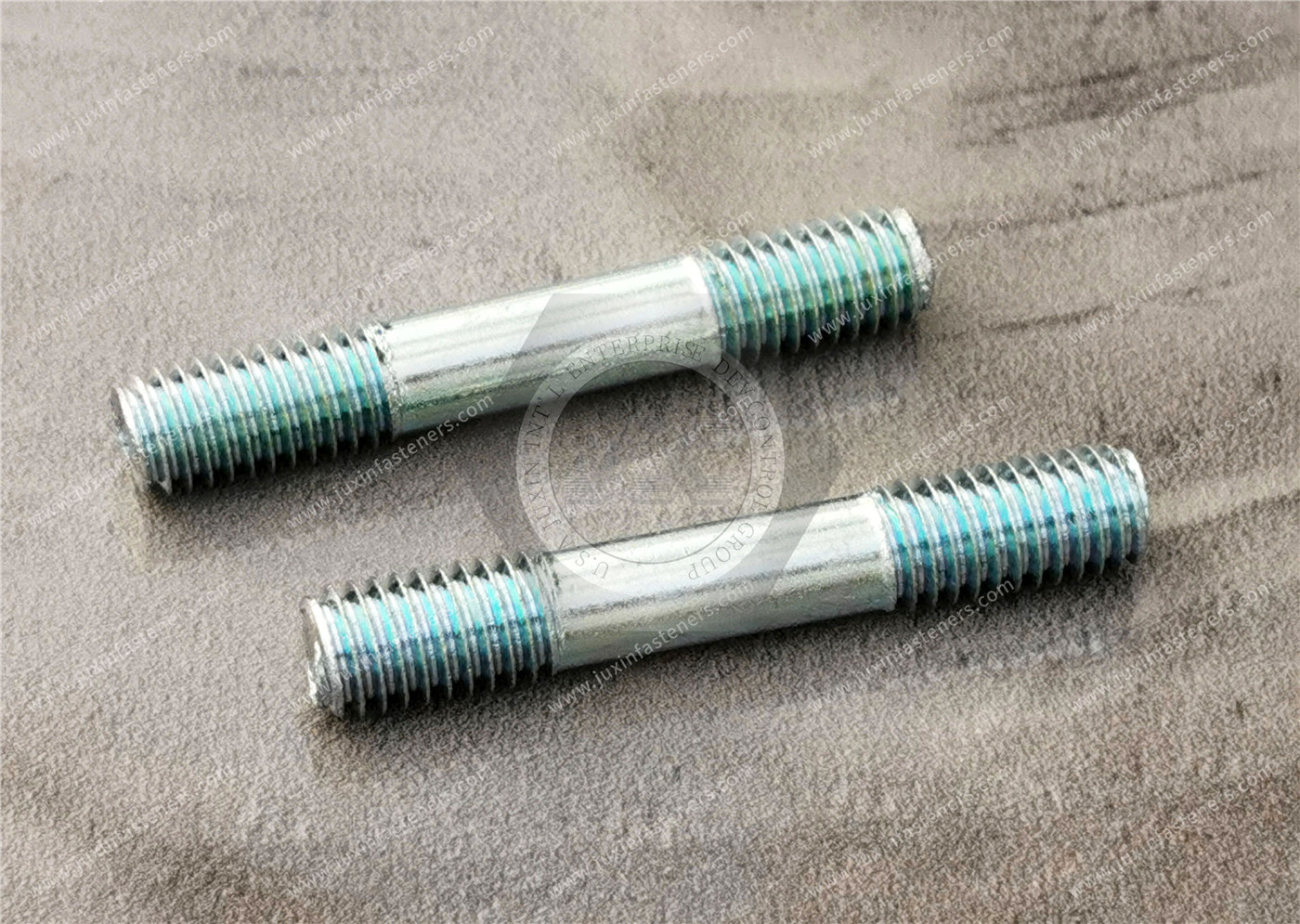

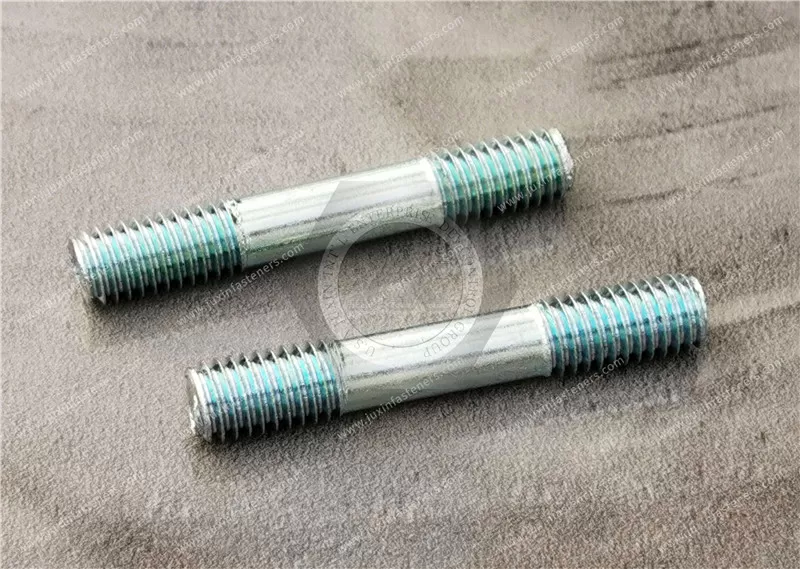

Equal-Length Twin Stud for Pressure Vessel Flange - Type A And B
