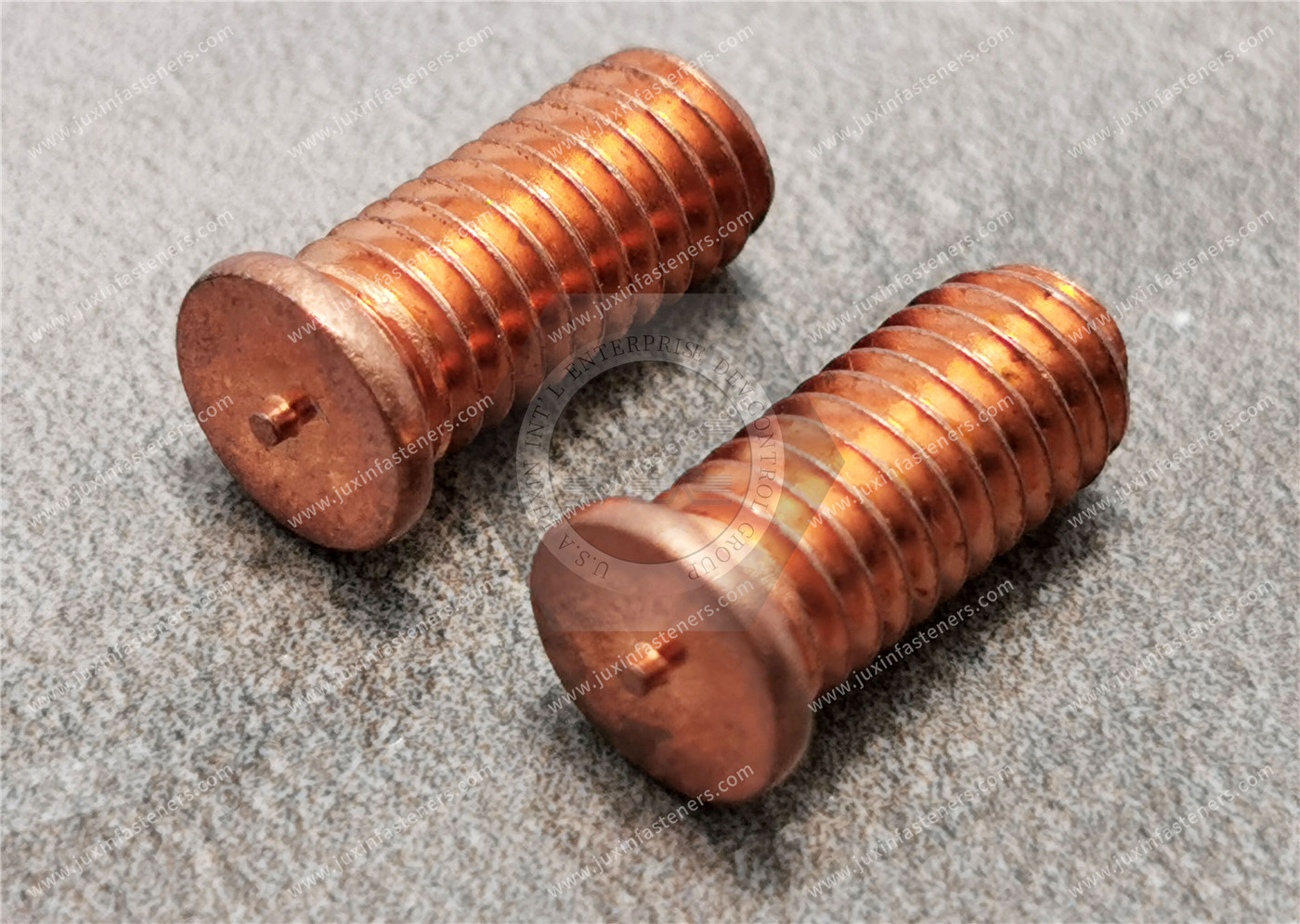

Material:Carbon steel (Surface treatment Copper plating)
Standard: DIN 32501 (-1) - 1991&ISO 13918 (PT) - 1998
Stud Welding Systems
Join threaded studs and pins to steel and stainless steel with resistance welding that won't damage the opposite side of the material.
Threaded studs are for thin-gauge base materials. Copper-plated steel studs have good corrosion resistance. 18-8 stainless steel studs are more corrosion-resistant than copper-plated steel studs. Aluminum studs are more lightweight than steel or stainless steel studs. They’re nonmagnetic. In wet environments, they resist corrosion.
Our weld studs feature an ignition tip for capacitor discharge welding. The stages of the process are:
The capacitor is charged, and one of the poles (usually negative) is connected to the stud
The weld stud is pushed into contact with the workpiece
Rapidly increasing current flows through the stud
The tip is superheated and evaporates, igniting the arc
Both the end of the stud and the surface of the workpiece melt
The stud is pushed into the workpiece, ending the arc
Any remaining electrical energy in the capacitor unloads
The stud and workpiece cool and solidify together
The fast process is ideal for thin sheet (0.6 - 2.5mm) metal, such as aluminum, brass, mild steel, or stainless steel, because the low thermal load causes minimal material distortion. However, both the weld stud and the sheet metal must be clean, and it is unsuitable for sheet metal with thick plating.
Product Specification
Name: Stud Welding Systems&Studs For Stud Welding With Tip Ignition; Threaded Bolt
Material: Stainless steel, Carbon steel.Aluminum,Brass
Join threaded studs and pins to steel and stainless steel with resistance welding that won't damage the opposite side of the material. Threaded studs are for thin-gauge base materials. 18-8 stainless steel studs are more corrosion-resistant than copper-coated steel studs.
PT THREADED STUDS
PT threaded studs
Threaded studs in steel, stainless steel A2-50, and AlMg3 from M3 to M10 are stocked in all standard lengths and can be delivered at short notice.
Welding studs of 1.4401/04, 1.4571, Al99,5, AlSi12, and brass are generally produced to order. Sometimes, small quantities can also be delivered - call to check our stock level.
The following dimensions can generally be produced:
M2.5 x 5 to 25 mm
M3 x 5 to 45 mm
M4 x 6 to 65 mm *
M5 x 6 to 70 mm *
M6 x 8 to 100 mm *
M8 x 10 to 100 mm *
M10 x 15 to 80 mm *
M12 x 15 to 80 mm *
Lengths over 63 mm have a partial thread of 60 mm
Lengths over 75 mm have a larger flange Ø (size to be clarified if necessary)
Size Can also be According to the Customer's requirement for manufacturing, please check the detailed specification sheet details PDF, CAD, 147-148 Page See more product details.
Product Packaging
Packaging: The inner packaging is a plastic bag, and the outer packaging is a carton. Then the tray. Carton size: 29*19*19.5cm and 23.5*17.5*8, cm and pallet size: 215*100*90cm, or as your request.
