The concept of combination sealing washer

A combination washer is made of a rubber ring and a metal ring. Overall bonding vulcanization is used to seal the thread and flange connection sealing ring, including a metal ring and a rubber washer. A combination washer is a composite gasket of superimposed metallic and non-metallic materials. Its structural form is divided into three types: metal - metal-metal-metal-metal-non-metallic, non-metallic-non-metallic, and metal-metal-metallic.

The scope of application of the combination sealing washer

The metal ring is rust-proof, and the rubber ring is generally made of oil-resistant nitrile or fluorine rubber. The combination of gaskets has metric and imperial two sizes; there are standards JB982-77 that provide for a combination of washers of metal gasket plus rubber in the form of a combination. A combination of sealing washers for threaded pipe fittings and screw plug sealing, it is generally used together with the ferrule type pipe fittings used to plug the oil port, mainly used for hydraulic valve pipe fittings threaded connections at the end of the static sealing, applicable to the British, U.S. standard inch threads and French, German standard metric threads and so on. Combined sealing washers can be divided into A-type and B-type according to the structural form; the different rubber coatings can be divided into complete package and half package. Combination washers are widely used in all kinds of machinery manufacturing, including automotive, metallurgy, petroleum, chemical, rail transportation, aviation, aerospace, and other industries. It suits various working media, including liquids, gases, and solids. It is ideal for use in piping systems with oil as the medium for welding, ferrule, expanding pipe joints, screw plugs, and pressure system sealing of mechanical devices for preventing the leakage of oil, fuel, water, and pharmaceuticals. Because of its simple structure, high-efficiency sealing, and low price, it is widely used in the machinery manufacturing industry.

The main performance parameters of the combination of sealing washers

Material: carbon steel + nitrile/fluoroelastomer, stainless steel + nitrile/fluoroelastomer

Temperature: 1. Nitrile rubber: limit temperature -40~120℃, recommended long-term use temperature -20~100℃.

    2. Fluoroelastomer: Limit temperature -40~240℃, long-term use temperature -20~220℃ is recommended.

Pressure: up to about 40MPa

Color: silver white + black/brown, yellow + black/brown:

1. Combined sealing washer for spiral threaded pipe joints and screw plug sealing, it is generally used together with the ferrule type pipe joints, used to plug the oil port, mainly used for hydraulic pipe threaded joints end face static sealing, applicable to the United Kingdom, the U.S. standard inch thread and France, Germany, the traditional metric threaded joints face static sealing, and so on.

2. Combination of gaskets for oil as the medium of the pipeline system, a total of welding, ferrule, expanding the pipe joints, screw plugs, and mechanical devices of the pressure system sealing, to prevent the leakage of oil, fuel, water and pharmaceuticals and so on.

3. Due to the simple structure, high-efficiency sealing, and low price of the combination of washers, it is widely used in the machinery manufacturing industry.

The advantages and disadvantages of the combination sealing washer

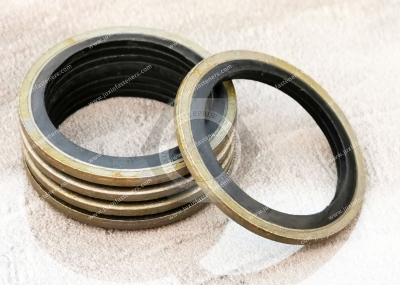

A combination sealing washer with a soft sealing ring and a metal ring combination of sealing gasket is called a combination sealing gasket; Juxin fasteners sealing tells you that ring includes a metal ring and a combination of rubber gasket. As shown in Figure 1-1. It is characterized by a slight compression force when connecting, high bearing pressure, and the lack of need to seal the groove. It is generally used as a seal at the joint of pipe joint and hydraulic components, applicable to the working pressure ≤ 40 MPa, temperature -20 ~ 80 ℃ case of static sealing. A combination of sealing requirements of the sealing surface roughness to Ra3.2 ~ Ra6.4 is appropriate. Combined gaskets have the following advantages over traditional single-material gaskets:

1. Good sealing performance: The combination gasket's large contact area between the different material layers effectively improves its sealing performance.

2. Good abrasion resistance: The different material layers in the combination washer can effectively share and cushion the load and balance the wear and tear to improve the service life of the washer.

3. Good compressive performance and resilience: The modulus of elasticity and elastic limit of the combination gasket is high due to the composition of composite materials, which can have good resilience while bearing loads. But the combination of washers also has some disadvantages:

1. Manufacturing difficulty: Combining washers from different material layers through the composite processing combination must ensure that the bonding strength between different material layers and compression forces are —reasonably controlled manufacturing difficulty.

2. Higher cost: relative to the traditional single-material washers, combined washers of material costs and production costs will be increased.

 Application of combination sealing washers in gases

Combined washers are suitable for various working media, including gas. Gas is an extraordinary medium, but it does not affect the effectiveness of the combination of washers.

The combination of sealing washers attention

1. The choice of gasket combinations should be based on specific working conditions to choose the right gasket type and material combination.

2. When using a combination of gaskets for sealing, one should pay attention to the prior cleaning of the sealing surface and the combination of gaskets, and the gaskets should be evenly coated with sealing material.

3. During storage and transportation, the combined gasket's surface should be smooth and clean and not damaged or deformed.
