The role of spring washers and how to use spring washers industrial solutions

Preventing bolts from loosening is an essential part of all types of connectors. There are many ways to prevent bolts from loosening in life, including the use of spring washers to prevent loosening. Spring washers are often referred to as spring washers in the screw industry. So why will it be used so frequently? It has to say from the role of spring washers and the principal.

The role of spring washers:

The primary role of the spring washer is to give force to the nut after the nut is tightened, increasing the friction between the nut and bolt, that is, to prevent the vibration of the equipment in operation caused by the loosening of the fastening bolts, and the addition of a protective measure.

Spring washer anti-loosening case, axle main reducer, and axle shell connection using 10.9 grade M16X100 bolts tightening torque of 280 + 20 N-m, using high-precision electric tightening machine tightening. The torque change with angle during bolt tightening is detected in two states: with spring washers and without spring washers. Comparing the torque angle curves, it was found that in the case of a spring washer, there was always a preloading torque of about 10 N-m, while in the case of a bolt without a spring washer, the torque was in the state of 0 N-m before the torque rose significantly.

It is inferred that the spring washer can be wholly flattened with a bolt preload torque of about 10 N-m. Using a digital torque wrench, I found that the bolt torque had not yet reached 20 N-m, and the spring washer had already been wholly flattened, which verified the correctness of the above deduction.

Analysis of the above two points shows that the spring washer can only provide 10 N-m of elasticity, and 10 N-m of elasticity for the 280 N-m bolt preload torque can be ignored. Secondly, such a small force is not enough to make the spring washer incision at the point embedded in the surface of the bolt and the connected parts. After folding and dismantling, there is no apparent embedding mark on the surface of the bolt and the corresponding part. Therefore, the anti-loosening effect of the spring washer on the bolt can be ignored. In addition, between the bolt and the related parts, add a washer; if the quality of the washer has a problem, it is equivalent to the bolt connection having added a security risk.

How spring washers are applied:

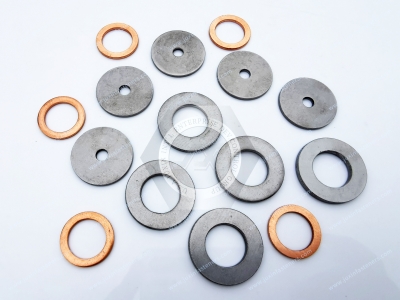

1. Washers, shaped like a ring-shaped class of fasteners, used for bolts, screws, or nuts in the middle of the support surface and the surface of the connected parts to reduce the surface area of the corresponding parts in contact with the surface area, to reduce the pressure per unit area and protect the surface of the related parts are not damaged; washers are ring-shaped fasteners, used for bolts, screws or nuts in the middle of the support surface and the surface of the connected parts to reduce the contact surface of the related parts, to reduce the pressure per unit area and protect the surface of the associated parts from damage; spring washers also play a role in preventing the nut from loosening. Contact surface, reduce the pressure per unit area, and protect the surface of the connecting parts are not damaged; spring washers also play a role in preventing the nut from loosening.

2. Spring washers are mainly used to prevent loosening; there is no relaxation function in platform washing machines. The washer can only increase the contact area. Spring washers avoid loosening. For example, bolting to a machine seat motor usually requires spring washers because the motor vibrates. Often, fasteners on vibrating equipment are equipped with spring washers, and flanges generally do not need flat washers. Flanges with or without spring washers and pipe flow medium are relevant if prone to pulsation, plus spring washers and high-speed fluids, frequent changes in caliber. By correctly selecting and installing spring washers, you can improve the reliability and performance of mechanical equipment, thereby enhancing productivity and economic efficiency.
