Round Nut Stop Washer Installation Methods Industrial Solutions

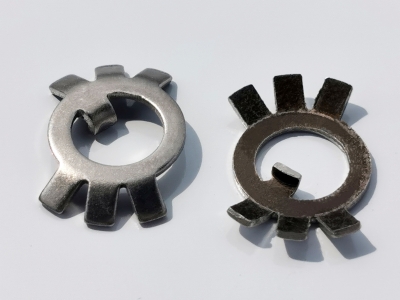

A round nut stop washer is a commonly used fastener accessory. It can prevent the nut in the vibration environment from losing to ensure the fastener work's safety and reliability. Round nut with a stop washer, also known as a stop washer, is a preventive washer for round nut loosening washers. They are widely used in electrical appliances, elevators, and machinery supporting the above, and they are used to fix rolling bearings to prevent loosening. Round nuts are generally fine threads, used primarily for shaft end locking, usually used together with stop washers. The installation method of the round nut stop washer is as follows. Prepare the required tools and materials. Installation of round nut stop washers involves wrenches, screwdrivers, and the corresponding specifications of round nuts and stop washers.

1. Determine the location of fasteners: According to the parts or equipment to be fastened, determine the installation location of round nuts and stop washers. Typically, round nuts should be installed on the bolts or screws that need to be connected or fixed.

2. Install the round nut: Place the round nut in the desired position and use a wrench to rotate the nut counterclockwise until it is tightly connected to the screw or bolt. Make sure that there is no visible resistance when the nut is turned.

3. Install the stop washer: Place the stop washer on the installed round nut. Ensure that the holes in the stop washer are aligned with the holes in the screw or bolt so that it will completely cover the bottom of the round nut. Note that the edge of the stop washer should be flush with the edge of the nut. The round nut should be installed with the chamfered side toward the end that is being pressed. Install the round nut on the bolt with the stop washer by pressing down on it, paying attention to whether the chamfered side is down or the flat side is down. The chamfered side should be towards the compression end. We have to look at the check washer width is not the same as the chamfered side of the width of the round face, and then look at the check washer on the "eight claws" have a particular angle; if the chamfered side outward; then, when the tightening of the round nut is the "eight claws" flattened.

4. Fix the stop washer with a screwdriver: use a screwdriver to gently press the stop washer so that it fits tightly with the round nut; first, put the inner tongue of the stop washer in the shaft groove, and then screw on the round nut and tighten it, tighten it with a tool if necessary, or it won't work, so that any one of the outer tongues can be knocked into the groove of the round nut. Please ensure the stop washer is secured so that it does not interfere with the rotation of the nut. The round nut stop washer has teeth inside and outside, and the external threads with which the round nut is fitted should be made with eyelets or grooves to incorporate the internal teeth of the washer; after the round nut is tightened in position, the external teeth of the washer corresponding to the nut wrenching groove should be bent and embedded in the groove so that the nut is fixed.

5. Check the installation: After completing the above steps, the round nut and stop washer installation should be carefully checked. Make sure the nut and stop washer are not loose or crooked. We can successfully install the round nut stop washer using the above steps. In the actual application, we should also pay attention to the following points:

Select appropriate round nuts and stop washers. Select the proper specifications and materials according to the actual need to ensure the working effect and life of the fasteners—correct use of tools. Use good wrenches and screwdrivers, and avoid using tools that are too large or too small to avoid damaging the fastener or the tool itself—regular inspection of fasteners. During the operation of the equipment, check the tightness of the round nuts and stop washers frequently, and find and deal with loose or worn problems in time to ensure the safe operation of the equipment. Maintenance and replacement as needed. According to the use of fasteners in the environment and work requirements, regular maintenance and replacement of round nuts and stop washers are necessary to ensure regular operation. The round nut and stop washer installation method mainly includes preparing tools and materials, determining the installation position, installing the nut, installing the stop washer, fixing the stop washer, and checking the installation. In the process of use, attention should be paid to selecting appropriate specifications and materials, correctly using tools, and regularly inspecting and maintaining fasteners. Through proper installation and maintenance, round nut stop washers can ensure the reliability and safety of fasteners and improve the working effect and life of the equipment.
