Jack blind rivet nut solutions for industrial applications

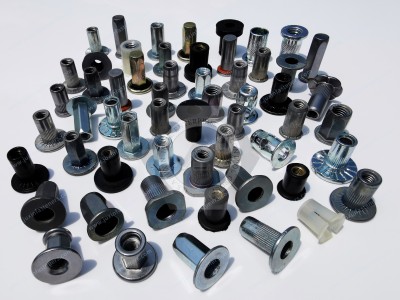

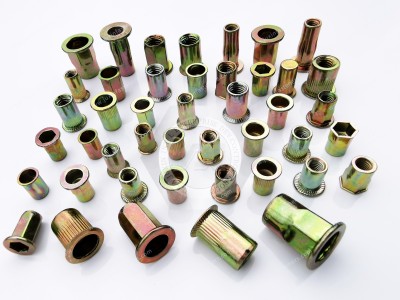

JACK NUT (Jack Blind Rivet Nut) is a lightweight blind rivet nut that is easy to install on light, soft, or fragile materials (e.g., plastic, PVC, wood panels, etc.). When blind riveting, the deformation area of the Czech blind rivet nut will expand like a petal to form four feet, increasing the force area, thus enhancing the pull-out resistance and improving the tensile strength. Holding the underside of the surface of the mounting object, it forms a screwable internal thread on the sheet. Typical applications of Juxin Fasteners Jack Blind Rivet Nuts: Threaded connections on yacht and shipbuilding panels, condensers for air ventilating systems, utility boxes for commercial trucks, refrigerators for automobiles, and installation of high mast LED light fixtures. It is suitable for forming a reliable internal metal thread on softer sheets for subsequent connection and fastening to other workpieces, such as plastic, wood, laminate, plywood, fiberboard, foam, canvas, etc. Jack blind rivet nuts Jack nut thread sizes range from 6-32-1/4-20" and M4-M10 and can be easily set by the installation tool. Juxin Fasteners has a range of standard and extended rivet thicknesses designed to meet different customer design requirements for each thread size. Juxin Fasteners offers a wide range of Jack Blind Rivet Nuts in various inch and metric thread sizes, diameters, and rivet lengths with the distinctive features and benefits of a fixed assembly in a preformed hole on one side. The installation can be accomplished on only one side of the mounting workpiece. There is no need to go to the back side of the mounting substrate to perform any manual operations. They increased production convenience. It is particularly suitable for applications where space on the surface is limited or a closed backside is impossible. Its unique deformation control technology protects the installation of the substrate material from distortion damage due to the installation of the back of the plate to form several times larger than the traditional rivet mother. Expansion of the gripping surface can be accommodated with a slightly larger hole, so the Jack Blind Rivet Nut on the opening precision does not have too many requirements, and at the same time, the back side of the flower bloom-shaped expansion to increase the area of the force, so that the contact with the panel space of the stress is reduced dramatically. Jack blind rivet nut can be adapted to a broader range of riveting thicknesses. Jack blind rivet nut material selection diversification, economical and practical galvanized steel made of standard products and stainless steel 304 (A2), stainless steel 316 (A4) corrosion-resistant products suitable for outdoor use. Jack blind rivet nuts can be installed in uneven panel material, even according to the hole position has a little burr does not affect the installation and mechanical properties of the fit. Application of traditional blind rivet nut tool installation. Both hand tools and pneumatic tools are available. The blind rivet nut tool works by screwing the bolt to the Jack blind rivet nut on the internal threads, and then blind rivet nut fasteners into the tool's groove into the prefabricated holes, and then through the tool's instantaneous firm tension squeeze until the blind rivet nut deformation zone deformation and expansion. Press the release switch and tighten it to complete the installation.
